| Mass (g) | 300 |
| Isolation Voltage | AC1800V 3s |
| Frame Material | Aluminum |

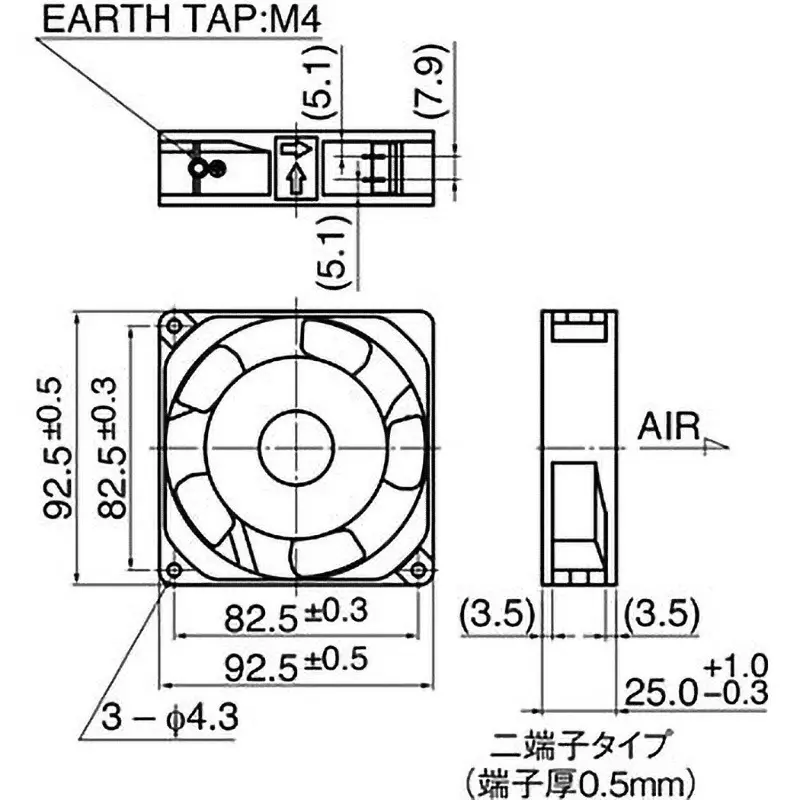

| Mounting Hole Spacing, Square (mm) | 92x92 |
Mass (g) |
300 |
Isolation Voltage |
AC1800V 3s |
Frame Material |
Aluminum |
Mounting Hole Spacing, Square (mm) |
92x92 |
Shape |
Square |
Maximum Static Pressure (Pa) |
(50/60Hz)43.2/60.9, H2O, 0.17/0.24 |
Input Voltage (V) |
AC220 |
Frequency (Hz) |
50/60 |
Monotaro ID |
17102094 |
Sound Pressure Level (dB) |
34/39(50/60 Hz) |
Thickness (mm) |
25 |
Type of Product |
AC Fan Motor |
Model No |
09225PB-B2L-EA-00 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
MinebeaMitsumi Inc. |
Motor |
Mechanism / Kumatori coil type induction motor, protection / impedance protection |
Color |
Feather: black |
Bearing Material |
ball bearing |
Insulation Resistance (MOhm) |
100 or more (with DC500V mega) |
Connection Type |
Two terminal type |
Maximum Airflow (m³/min) |
0.8/0.98 m³/min (50/60 Hz) |
Terminal Material |
Faston #110+ equivalent |
Correction |
AC fan |
Ambient Temperature Range |
Allowable / -10 to +70℃ (Operating), -40 to +70℃ (Storage) No dew condensation in practical use |
Frame Color |
Black |
