| Mass (g) | 240 |
| Isolation Voltage | AC1800V 3s |

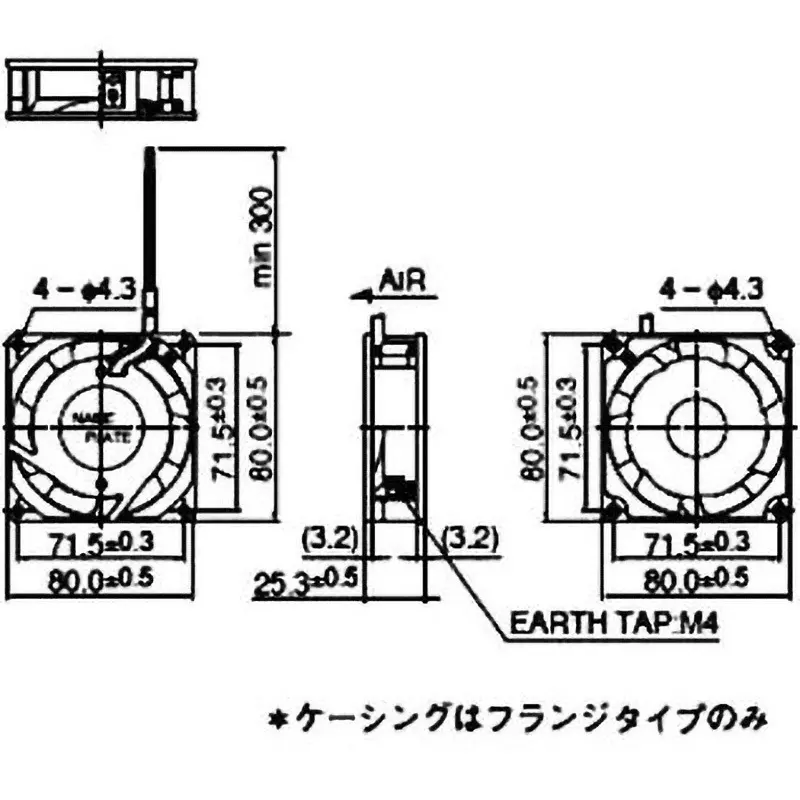

| Mounting Hole Spacing, Square (mm) | 80x80 |
| Shape | Square |
Mass (g) |
240 |
Isolation Voltage |
AC1800V 3s |
Mounting Hole Spacing, Square (mm) |
80x80 |
Shape |
Square |
Maximum Static Pressure (Pa) |
(50/60Hz)39/55, H2O, 0.16/0.22 |
Input Voltage (V) |
AC100 |
Frequency (Hz) |
50/60 |
Monotaro ID |
17102058 |
Sound Pressure Level (dB) |
24/31(50/60 Hz) |
Thickness (mm) |
25 |
Type of Product |
AC Fan Motor |
Model No |
08025MB-A0L-AA-00 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
MinebeaMitsumi Inc. |
Motor |
Mechanism / Kumatori coil type induction motor, protection / impedance protection |
Color |
Casing: black, impeller: black |
Bearing Material |
ball bearing |
Insulation Resistance (MOhm) |
100 or more (with DC500V mega) |
Maximum Airflow (m³/min) |
0.57/0.68 m³/min (50/60 Hz) |
Correction |
AC fan |
Ambient Temperature Range |
Allowable / -10 to +70℃ (Operating), -40 to +70℃ (Storage) No dew condensation in practical use |
Casing Material |
Aluminum |
Impeller Material |
Plastic UL94V-0 |
Lead Wire |
UL3266, AWG22 |
Starting Voltage Range (V) |
65 |
