| Frame Material | Aluminum die casting |

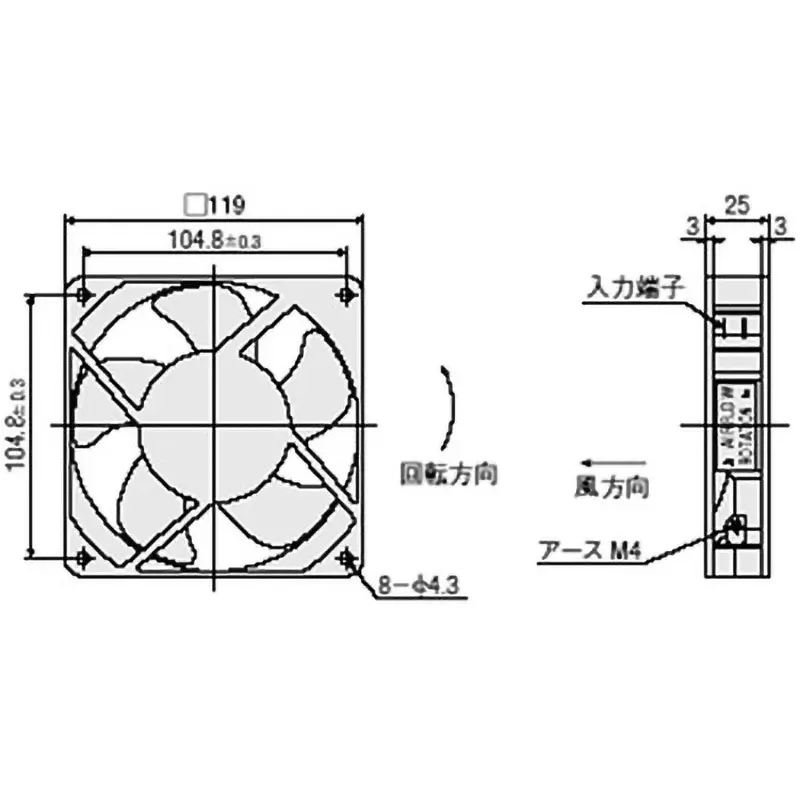

| Mounting Hole Spacing, Square (mm) | 119 |
| Shape | Square |
| Maximum Static Pressure (Pa) | (220V)49(50Hz), (230V)49/44(50/60Hz) |
Frame Material |
Aluminum die casting |
Mounting Hole Spacing, Square (mm) |
119 |
Shape |
Square |
Maximum Static Pressure (Pa) |
(220V)49(50Hz), (230V)49/44(50/60Hz) |
Type |
Thin general-purpose, set product |
Material (Fan Blade) |
Polycarbonate (flame retardant grade V-0) |
Frequency (Hz) |
Single phase 220:50, Single phase 230:50/60 |
Monotaro ID |
6868924 |
Sound Pressure Level (dB) |
(220V)36(50Hz), (230V)36/40(50/60Hz) |
Type of Product |
Fan Motor |
Model No |
T-MU1225S-51-GP |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Oriental Motor Co., Ltd. |
Maximum Airflow |
(220 V)1.6(50 Hz), (230 V)1.6/1.9(50/60 Hz) |
Current (A) (50/60Hz) |
(220V)0.07(50Hz), (230V)0.08/0.07(50/60Hz) |

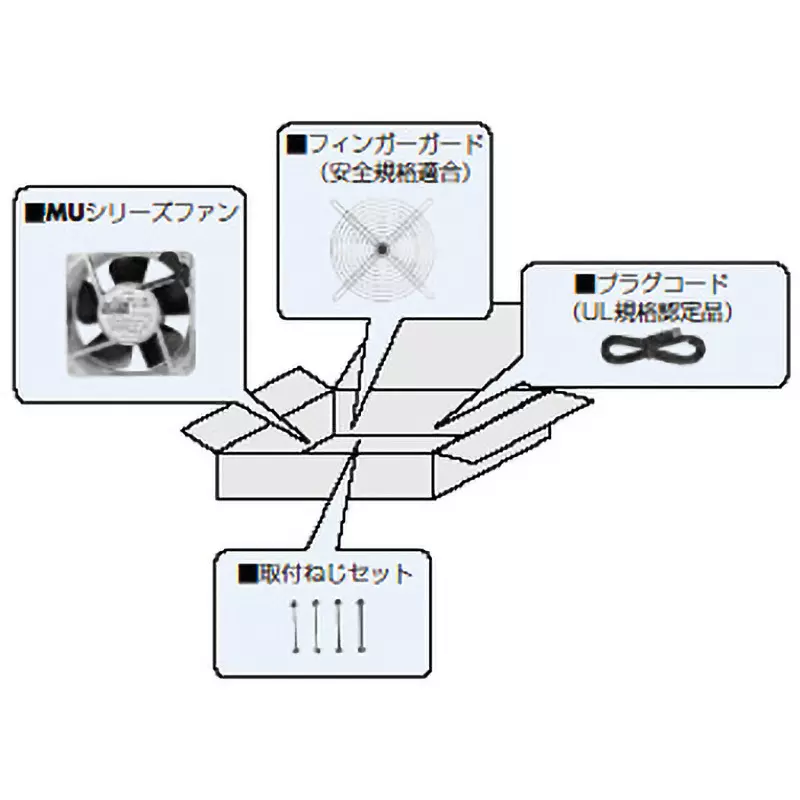

Set Contents |
Fan, finger guard, mounting screw (M4X40mm), plug cord for power connection (1m), instruction manual |
Series |
MU |
Mass (Kg) |
0.31 |
Rated Voltage (V) |
Single Phase 220/230 |
Frame Thickness (mm) |
25 |
Speed Type |
Standard speed |
Specifications |
No alarm |
Input (W) |
(220V)10.5(50Hz), (230V)12/10(50/60Hz) |
Fan |
MU1225S-51 |
