| Frame Material | Aluminum die casting |
| Mounting Hole Spacing, Square (mm) | 119 |
| Shape | Square |
| Maximum Static Pressure (Pa) | (220V)34(50Hz), (230V)34/29(50/60Hz) |
Frame Material |
Aluminum die casting |
Mounting Hole Spacing, Square (mm) |
119 |
Shape |
Square |
Maximum Static Pressure (Pa) |
(220V)34(50Hz), (230V)34/29(50/60Hz) |
Type |
Thin general-purpose, set product |
Material (Fan Blade) |
Polycarbonate (flame retardant grade V-0) |
Frequency (Hz) |
Single phase 220:50, Single phase 230:50/60 |
Monotaro ID |
37653007 |
Sound Pressure Level (dB) |
(220V)33(50Hz), (230V)34/33(50/60Hz) |
Type of Product |
Fan Motor |
Model No |
T-MU1238L-51-GP |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Oriental Motor Co., Ltd. |
Maximum Airflow |
(220 V)1.85(50 Hz), (230 V)1.9/1.9(50/60 Hz) |
Current (A) (50/60Hz) |
(220V)0.06(50Hz), (230V)0.06/0.06(50/60Hz) |
Set Contents |

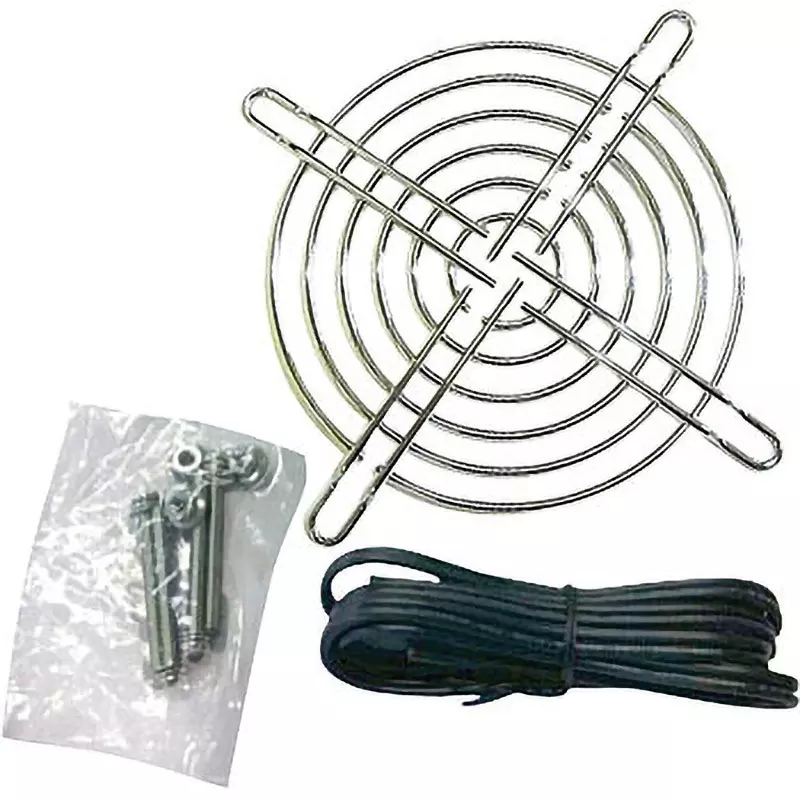

Fan, finger guard, mounting screw (M4X55mm), power cord plug cord (1m), instruction manual |
Series |
MU |
Rated Voltage (V) |
Single Phase 220/230 |
Frame Thickness (mm) |
38 |
Rated Rotation Speed (min⁻¹ [rpm]) |
(220V)2100(50Hz), (230V)2100/2200(50/60Hz) |
Speed Type |
Low speed |
Specifications |
No alarm |
Input (W) |
(220V)7.5(50Hz), (230V)9.5/7.5(50/60Hz) |
Fan |
MU1238L-51B |
