| Frame Material | Aluminum die casting |
| Mounting Hole Spacing, Square (mm) | 160 |
| Shape | Square |
| Maximum Static Pressure (Pa) | (200V)127/157(50/60Hz), (230V)157(60Hz) |
Frame Material |
Aluminum die casting |
Mounting Hole Spacing, Square (mm) |
160 |
Shape |
Square |
Maximum Static Pressure (Pa) |
(200V)127/157(50/60Hz), (230V)157(60Hz) |
Type |
Set product |
Material (Fan Blade) |
Polycarbonate (flame retardant grade V-0) |
Monotaro ID |
37729036 |
Sound Pressure Level (dB) |
(200V)49/52(50/60Hz), (230V)53(60Hz) |
Type of Product |

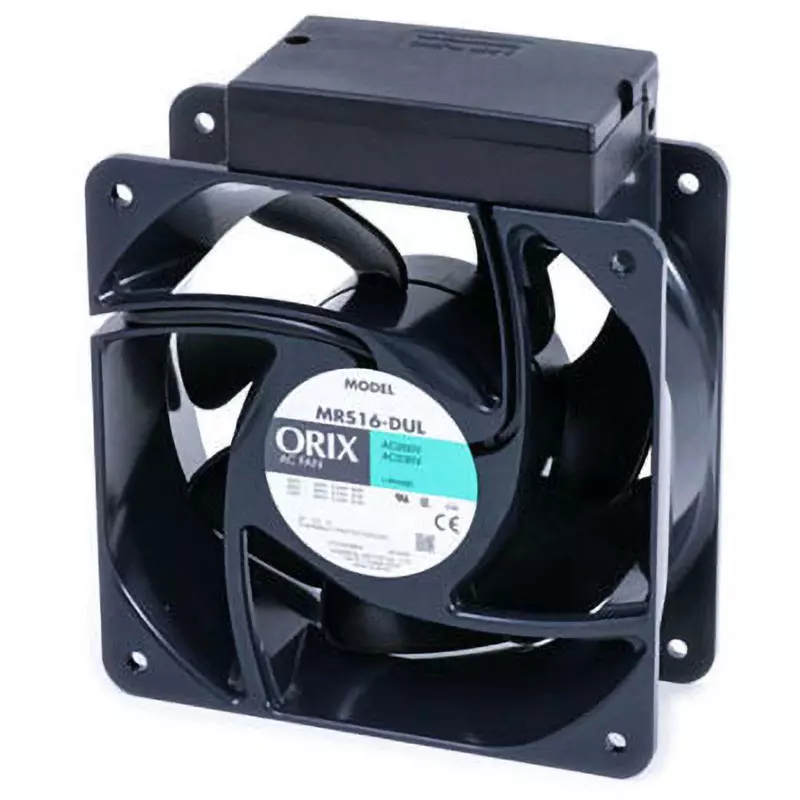

AC Propeller Fan |
Model No |
T-MRS16-DUL-F |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Oriental Motor Co., Ltd. |
Maximum Airflow |
(200 V)6.2/7.3(50/60 Hz), (230 V)7.3(60 Hz) |
Current (A) (50/60Hz) |
(200V)0.24/0.24(50/60Hz), (230V)0.25(60Hz) |
Set Contents |
Fan, filter, mounting screw (M5X30mm), instruction manual |
Series |
MRS |
Rated Voltage (V) |
Single Phase 200, 220, 230 |
Frame Thickness (mm) |
62 |
Rated Rotation Speed (min⁻¹ [rpm]) |
(200V)2800/3250(50/60Hz), (230V)3300(60Hz) |
Connection Type |
Terminal block |
Additional Functions |
None |
Specifications |
No alarm |
Input (W) |
(200V)39/41(50/60Hz), (230V)51(60Hz) |
Fan |
MRS16-DUL |
