| Frame Material | Aluminum die casting |

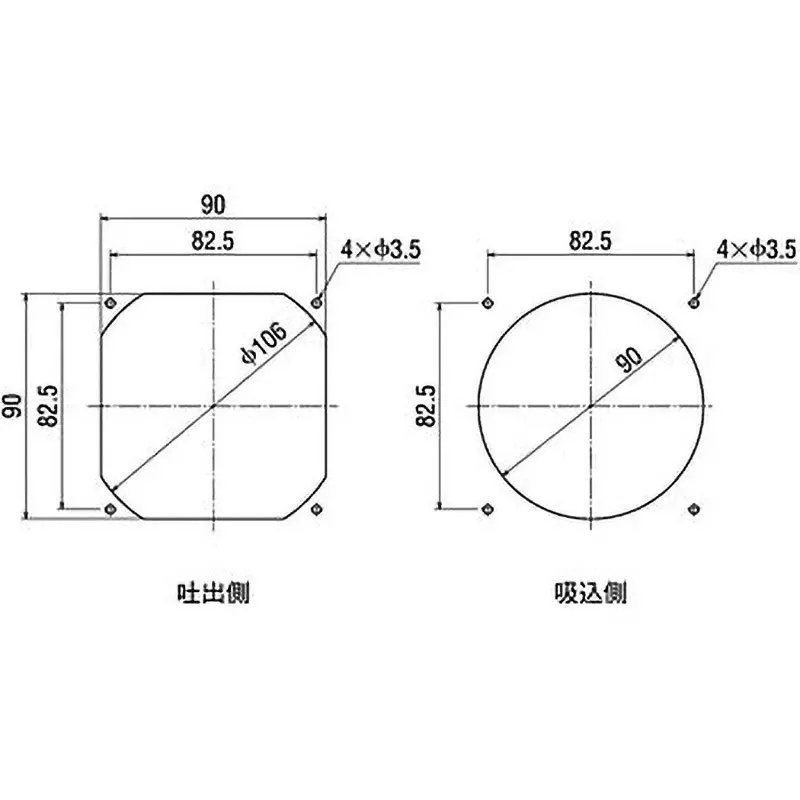

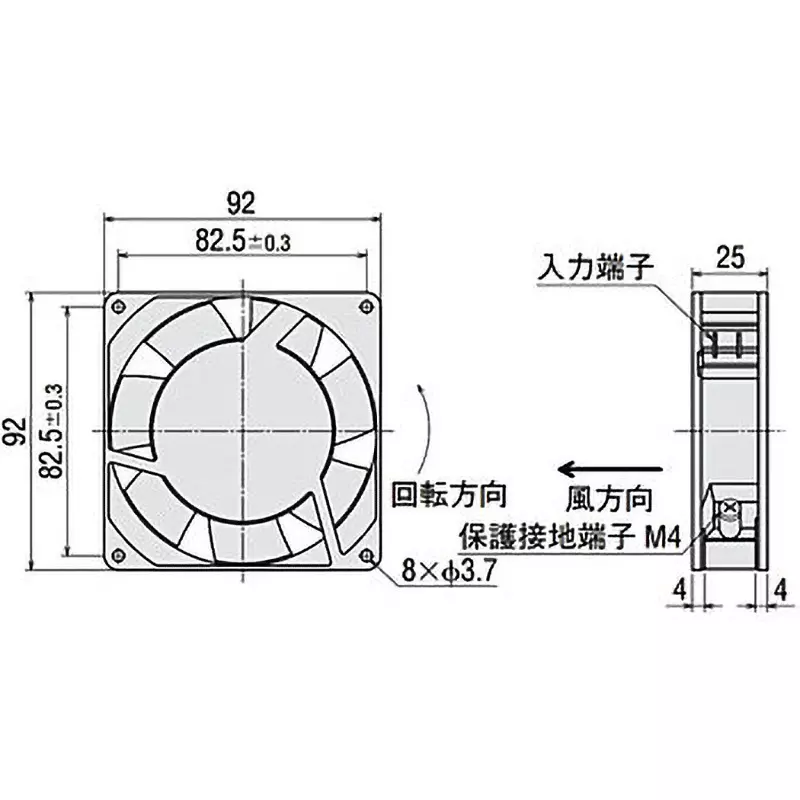

| Mounting Hole Spacing, Square (mm) | 92 |
| Shape | Square |
| Maximum Static Pressure (Pa) | 44/59(50/60Hz) |
Frame Material |
Aluminum die casting |
Mounting Hole Spacing, Square (mm) |
92 |
Shape |
Square |
Maximum Static Pressure (Pa) |
44/59(50/60Hz) |
Type |
Fan single item |
Material (Fan Blade) |
Polycarbonate (flame retardant grade V-0) |
Monotaro ID |
538501 |
Sound Pressure Level (dB) |
35/39(50/60Hz) |
Type of Product |
AC Propeller Fan |
Model No |
MU925S-41 |
Import Country |
Direct Import from Japan |
Country of Origin |
JAPAN |
Name of Manufacturer/Packer/Importer |
Oriental Motor Co., Ltd. |
Maximum Airflow |
0.95/1.1(50/60 Hz) |
Current (A) (50/60Hz) |
0.08/0.07(50/60Hz) |
Series |
MU |
Mass (Kg) |
0.27 |
Rated Voltage (V) |
Single Phase 200 |
Frame Thickness (mm) |
25 |
Rated Rotation Speed (min⁻¹ [rpm]) |
2600/3000(50/60Hz) |
Speed Type |
Standard speed |
Specifications |
No alarm |
Input (W) |
9.5/8(50/60Hz) |
Input Method |
Terminal |
Relative Humidity |
0.95 |
