| Frame Material | Aluminum die casting |

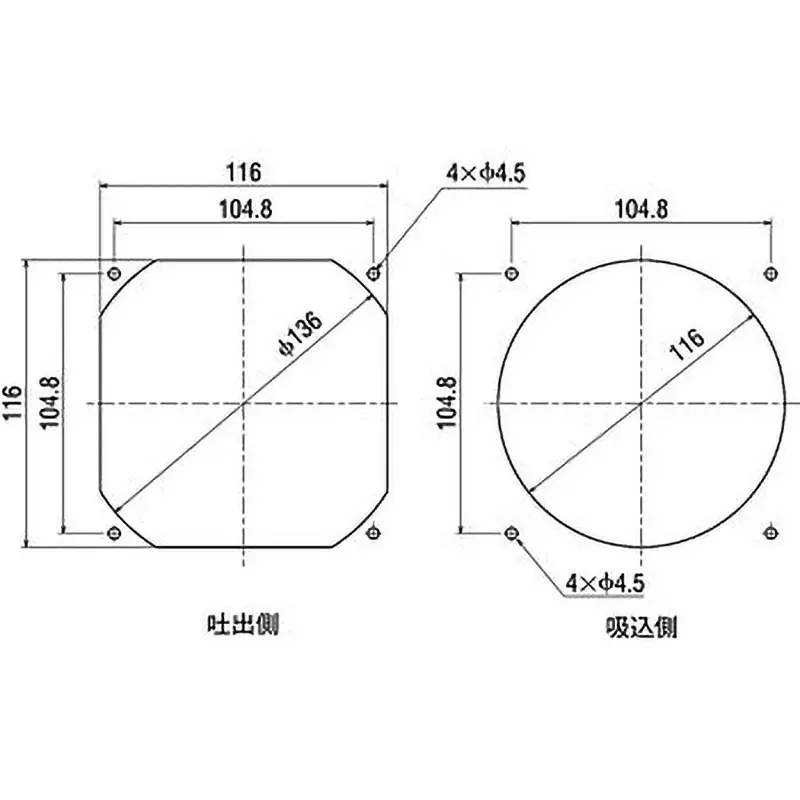

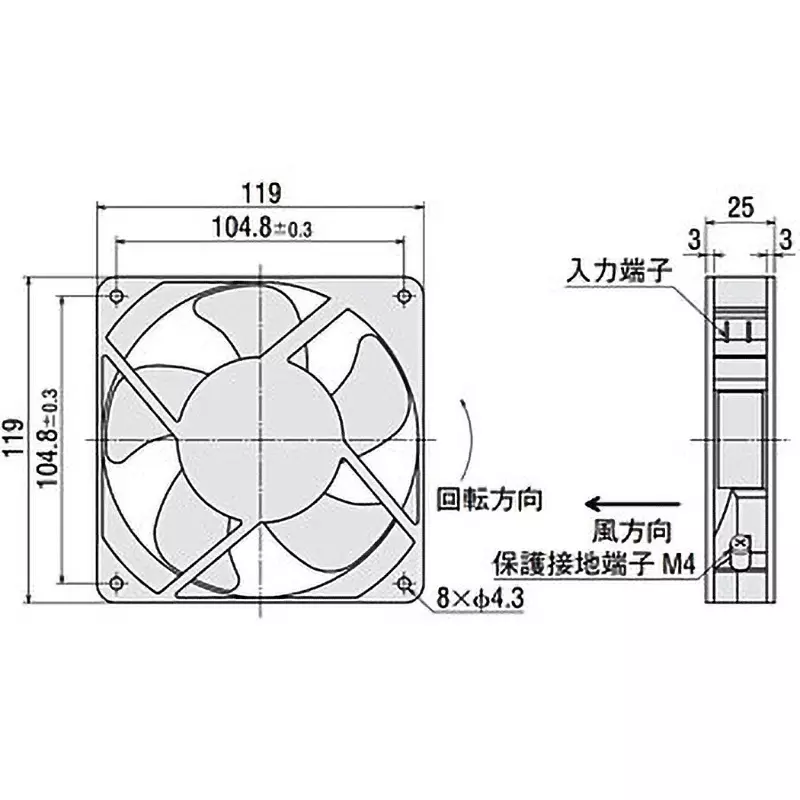

| Mounting Hole Spacing, Square (mm) | 119 |
| Shape | Square |
| Maximum Static Pressure (Pa) | 32/31(50/60Hz) |
Frame Material |
Aluminum die casting |
Mounting Hole Spacing, Square (mm) |
119 |
Shape |
Square |
Maximum Static Pressure (Pa) |
32/31(50/60Hz) |
Type |
Fan single item |
Material (Fan Blade) |
Polycarbonate (flame retardant grade V-0) |
Monotaro ID |
538185 |
Sound Pressure Level (dB) |
33/37(50/60Hz) |
Type of Product |
AC Propeller Fan |
Model No |
MU1225M-11 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Oriental Motor Co., Ltd. |
Maximum Airflow |
1.4/1.7(50/60 Hz) |
Current (A) (50/60Hz) |
0.14/0.12(50/60Hz) |
Series |
MU |
Mass (Kg) |
0.31 |
Rated Voltage (V) |
Single Phase 100 |
Frame Thickness (mm) |
25 |
Rated Rotation Speed (min⁻¹ [rpm]) |
2250/2600(50/60Hz) |
Speed Type |
Middle speed |
Specifications |
No alarm |
Input (W) |
10.5/9(50/60Hz) |
Input Method |
Terminal |
Relative Humidity |
0.95 |
