| Frame Material | Aluminum die casting |
| Mounting Hole Spacing, Square (mm) | 80 |
| Shape | Square |
| Maximum Static Pressure (Pa) | 20/34(50/60Hz) |
Frame Material |
Aluminum die casting |
Mounting Hole Spacing, Square (mm) |
80 |
Shape |
Square |
Maximum Static Pressure (Pa) |
20/34(50/60Hz) |
Type |
Set product |
Material (Fan Blade) |
Polycarbonate (flame retardant grade V-0) |
Frequency (Hz) |
50/60 |
Monotaro ID |
37652833 |
Sound Pressure Level (dB) |
24/28(50/60Hz) |
Type of Product |
AC Propeller Fan |
Model No |
T-MU825L-13-G |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Oriental Motor Co., Ltd. |
Maximum Airflow |
0.35/0.45(50/60 Hz) |
Current (A) (50/60Hz) |
0.12/0.1(50/60Hz) |

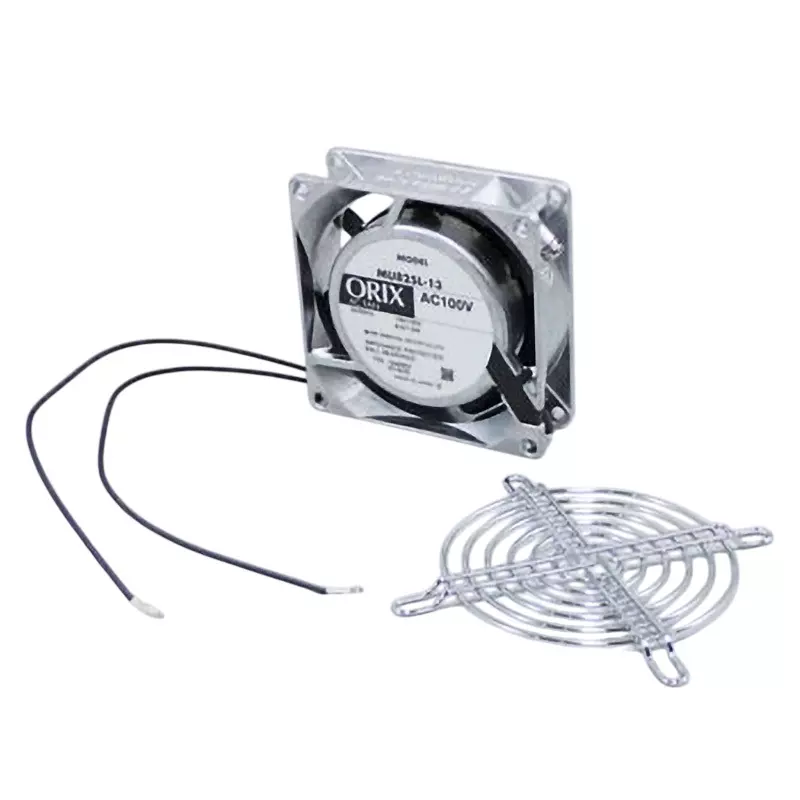

Set Contents |
Fan, finger guard, mounting screw (M4X40mm), instruction manual |
Series |
MU |
Rated Voltage (V) |
Single Phase 100 |
Frame Thickness (mm) |
25 |
Rated Rotation Speed (min⁻¹ [rpm]) |
2100/2600(50/60Hz) |
Speed Type |
Low speed |
Specifications |
No alarm |
Input (W) |
8.5/7.5(50/60Hz) |
Fan |
MU825L-13 |
