Ships within 25 days
View
View
View
View
| Mounting Hole Spacing, Square (mm) | 140 |
| Shape | Square |
| Maximum Static Pressure (Pa) | (220V)43(50Hz), (230V)45/34(50/60Hz) |
| Type | Thin general-purpose, set product |
Mounting Hole Spacing, Square (mm) |
140 |
Shape |
Square |
Maximum Static Pressure (Pa) |
(220V)43(50Hz), (230V)45/34(50/60Hz) |
Type |
Thin general-purpose, set product |
Frequency (Hz) |
Single phase 220:50, Single phase 230:50/60 |
Monotaro ID |
6868845 |
Sound Pressure Level (dB) |
(220V)44(50Hz), (230V)45/46(50/60Hz) |
Type of Product |
Fan Motor |
Model No |
T-MU1428S-51-GP |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Oriental Motor Co., Ltd. |
Maximum Airflow |
(220 V)2.4(50 Hz), (230 V)2.4/2.7(50/60 Hz) |
Current (A) (50/60Hz) |
(220V)0.07(50Hz), (230V)0.08/0.07(50/60Hz) |

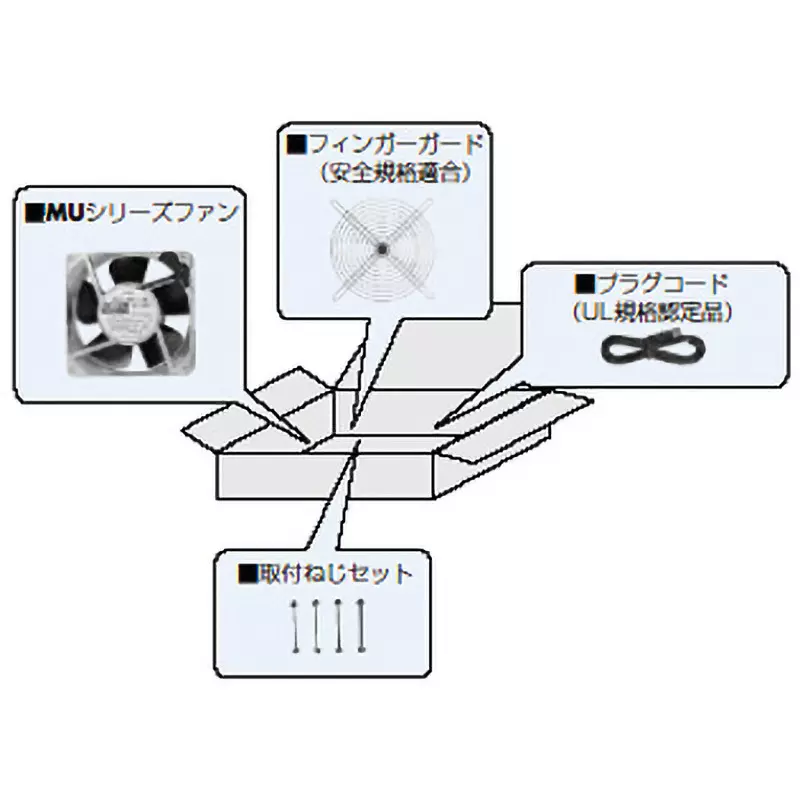

Set Contents |
Fan, finger guard, mounting screw (M4X50mm), power supply plug cord (1m), instruction manual |
Series |
MU |
Rated Voltage (V) |
Single Phase 220/230 |
Features |
Standard/compact/thin |
Frame Thickness (mm) |
28 |
Rated Rotation Speed (min⁻¹ [rpm]) |
(220V)2400(50Hz), (230V)2500/2700(50/60Hz) |
Speed Type |
Standard speed |
Specifications |
No alarm |
Input (W) |
(220V)12(50Hz), (230V)13.5/12(50/60Hz) |
Fan |
MU1428S-51 |
