Ships within 25 days
View
View
View
View
| Frame Material | Aluminum die casting |
| Mounting Hole Spacing, Square (mm) | 180 |
| Shape | Square |
| Maximum Static Pressure (Pa) | (200V)196/245(50/60Hz), (230V)245(60Hz) |
Frame Material |
Aluminum die casting |
Mounting Hole Spacing, Square (mm) |
180 |
Shape |
Square |
Maximum Static Pressure (Pa) |
(200V)196/245(50/60Hz), (230V)245(60Hz) |
Type |
Fan single item |
Material (Fan Blade) |
Polycarbonate (flame retardant grade V-0) |
Monotaro ID |
61919244 |
Sound Pressure Level (dB) |
(200V)56/60(50/60Hz), (230V)61(60Hz) |
Type of Product |
AC Long Life Propeller Fan |
Model No |
MRE18-DH |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Oriental Motor Co., Ltd. |
Maximum Airflow |
(200 V)11/12.8(50/60 Hz), (230 V)12.8(60 Hz) |
Current (A) (50/60Hz) |
(200V)0.27/0.36(50/60Hz), (230V)0.34(60Hz) |
Set Contents |

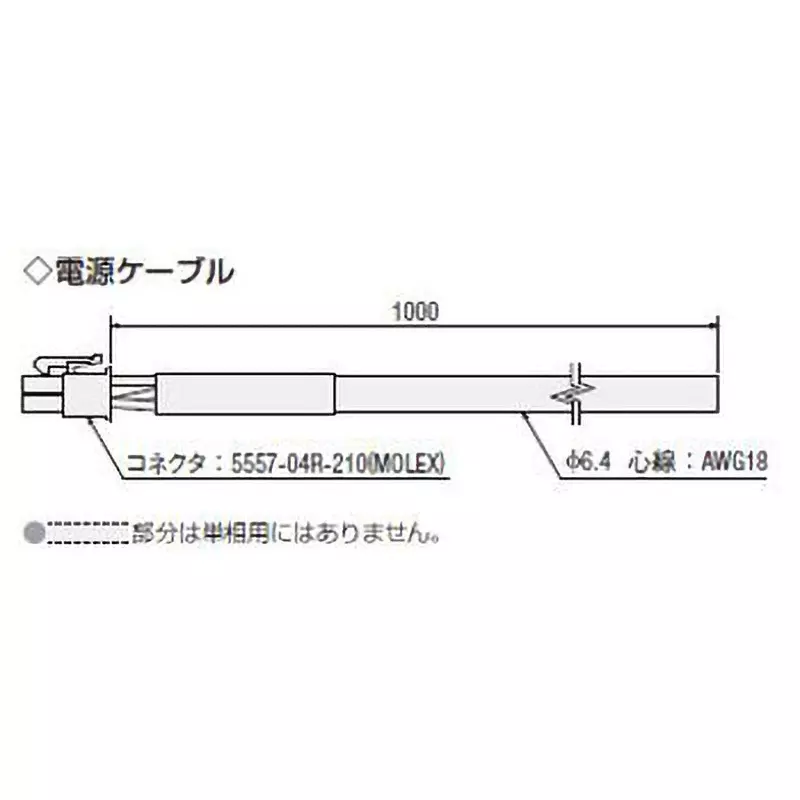

Fan, extension cable (power cable), instruction manual |
Series |
MRE |
Rated Voltage (V) |
Single Phase 200, 220, 230 |
Features |
Long life |
Frame Thickness (mm) |
90 |
Rated Rotation Speed (min⁻¹ [rpm]) |
(200V)2850/3300(50/60Hz), (230V)3350(60Hz) |
Additional Functions |
None |
Specifications |
No alarm |
Input (W) |
(200V)54.5/70(50/60Hz), (230V)77(60Hz) |
Expected Life (hours) |
100000 |
