| Maximum Static Pressure (Pa) | (100V)88/127, (110V)-/132, (115V)-/132 |
| Monotaro ID | 37731461 |

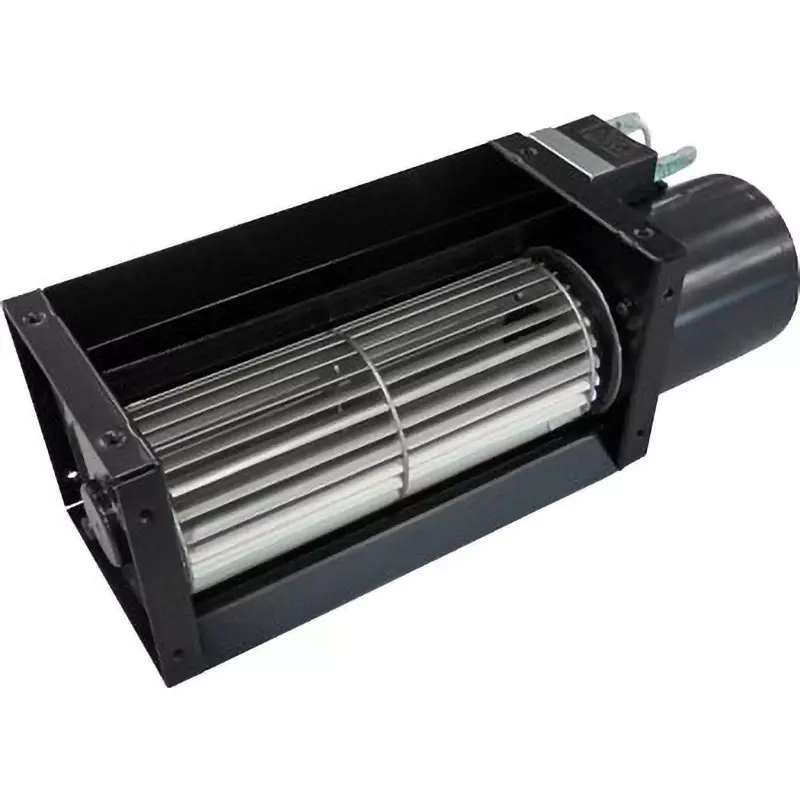

| Type of Product | AC Cross Flow Fan |
| Model No | MF915-BC |
Maximum Static Pressure (Pa) |
(100V)88/127, (110V)-/132, (115V)-/132 |
Monotaro ID |
37731461 |
Type of Product |
AC Cross Flow Fan |
Model No |
MF915-BC |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Oriental Motor Co., Ltd. |
Maximum Air Flow |
(100V)3.4/3.7, (110V)-/4.0, (115V)-/4.1 |
Material |
(Motor case) Aluminum die-cast, (Case) Steel plate, (Runner) Aluminum |
Bearing Type |
ball bearing |
Voltage |
Single Phase 100/110/115 V |
Noise Level (dB (A)) (50/60Hz) |
(100V)60/63, (110V)-/64, (115V)-/64 |
Specifications |
Built-in capacitor |
Power Supply |
AC |
Direction of Rotation |
(Runner) Counterclockwise when viewed from the motor side |
Length (mm) |
(Runner) 150 |
Protection Devices |
Built-in thermal protector |
Rotational Speed (50/60Hz) (RPM) |
(100V)2650/2950, (110V)-/3200, (115V)-/3250 |
