Ships within 25 days
View
View
View
View
| Frame Material | Aluminum die casting |
| Mounting Hole Spacing, Square (mm) | 119 |
| Shape | Square |
| Maximum Static Pressure (Pa) | (220V)81(50Hz), (230V)81/81(50/60Hz) |
Frame Material |
Aluminum die casting |
Mounting Hole Spacing, Square (mm) |
119 |
Shape |
Square |
Maximum Static Pressure (Pa) |
(220V)81(50Hz), (230V)81/81(50/60Hz) |
Type |
Thin general-purpose, set product |
Material (Fan Blade) |
Polycarbonate (flame retardant grade V-0) |
Frequency (Hz) |
Single phase 220:50, Single phase 230:50/60 |
Monotaro ID |
6868881 |
Sound Pressure Level (dB) |
(220V)43(50Hz), (230V)43/46(50/60Hz) |
Type of Product |
Fan Motor |
Model No |
T-MU1238A-51-GP |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Oriental Motor Co., Ltd. |
Maximum Airflow |
(220 V)2.7(50 Hz), (230 V)2.7/3(50/60 Hz) |
Current (A) (50/60Hz) |
(220V)0.1(50Hz), (230V)0.11/0.1(50/60Hz) |
Set Contents |

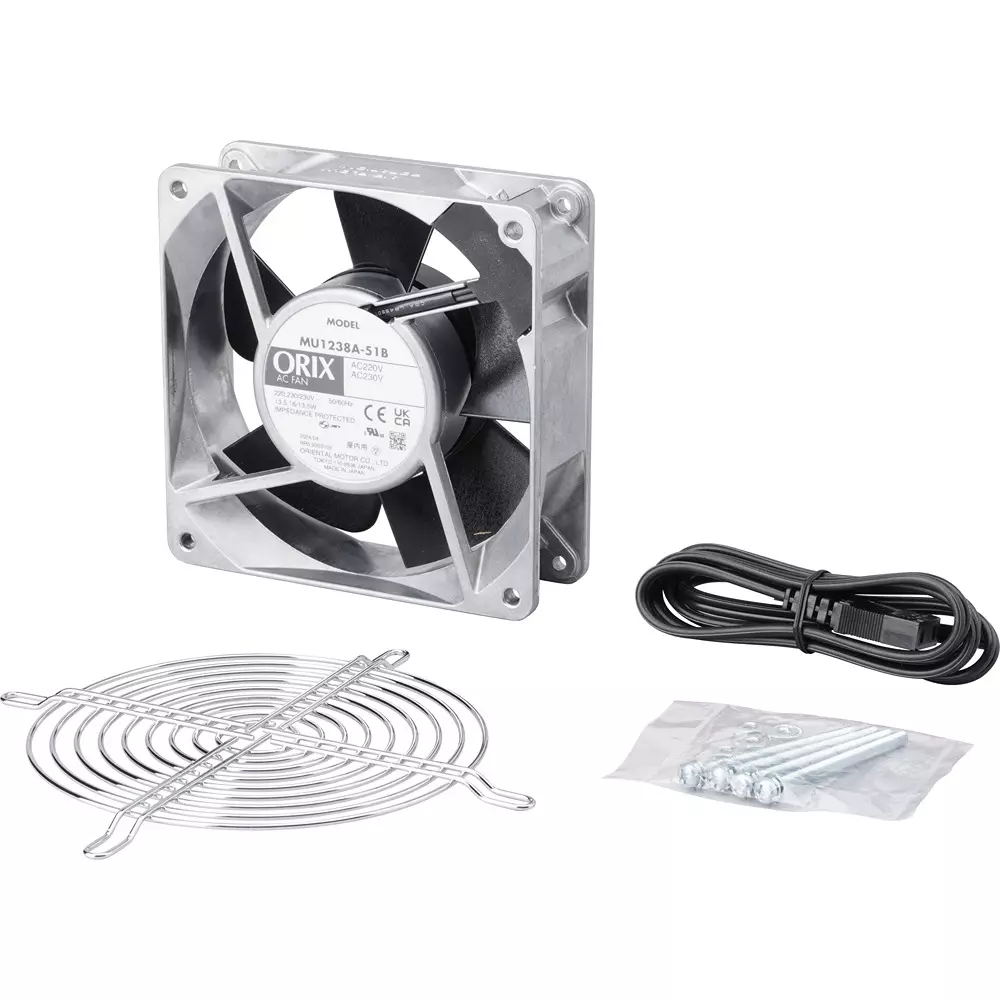

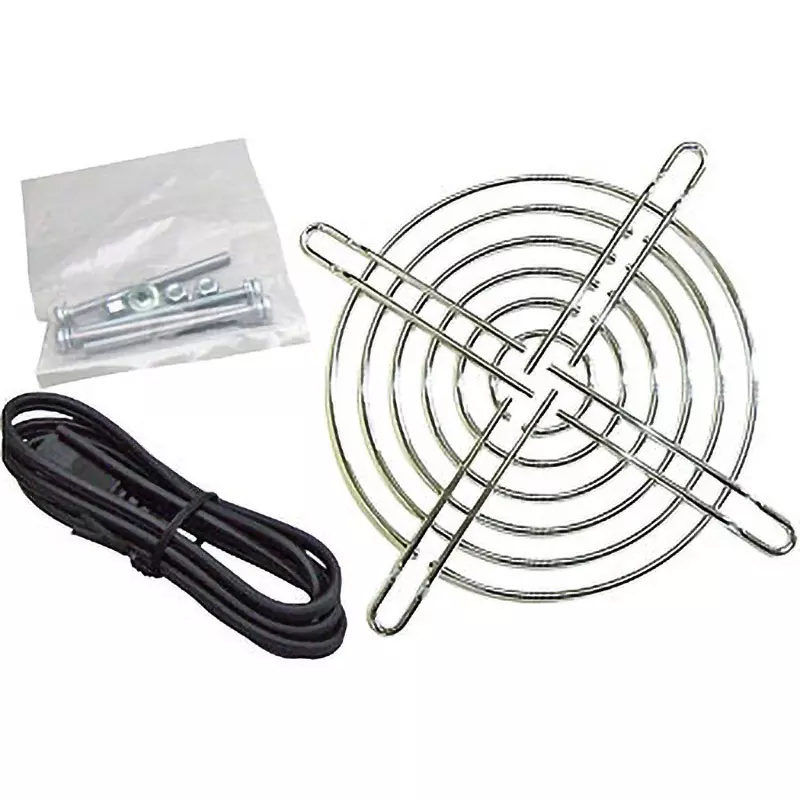

Fan, finger guard, mounting screw (M4X55mm), power cord plug cord (1m), instruction manual |
Series |
MU |
Rated Voltage (V) |
Single Phase 220/230 |
Frame Thickness (mm) |
38 |
Rated Rotation Speed (min⁻¹ [rpm]) |
(220V)2800(50Hz), (230V)2800/3250(50/60Hz) |
Speed Type |
Standard speed |
Specifications |
No alarm |
Input (W) |
(220V)13.5(50Hz), (230V)16/13.5(50/60Hz) |
Fan |
MU1238A-51B |
