| Frame Material | Aluminum die casting |
| Mounting Hole Spacing, Square (mm) | 119 |
| Shape | Square |
| Maximum Static Pressure (Pa) | 34/27(50/60Hz) |
Frame Material |
Aluminum die casting |
Mounting Hole Spacing, Square (mm) |
119 |
Shape |
Square |
Maximum Static Pressure (Pa) |
34/27(50/60Hz) |
Type |
Thin general-purpose, set product |
Material (Fan Blade) |
Polycarbonate (flame retardant grade V-0) |
Frequency (Hz) |
50/60 |
Monotaro ID |
37652991 |
Sound Pressure Level (dB) |
33/32(50/60Hz) |
Type of Product |
Fan Motor |
Model No |
T-MU1238L-41-GP |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Oriental Motor Co., Ltd. |
Maximum Airflow |
1.9/1.8(50/60 Hz) |
Current (A) (50/60Hz) |
0.07/0.06(50/60Hz) |
Set Contents |

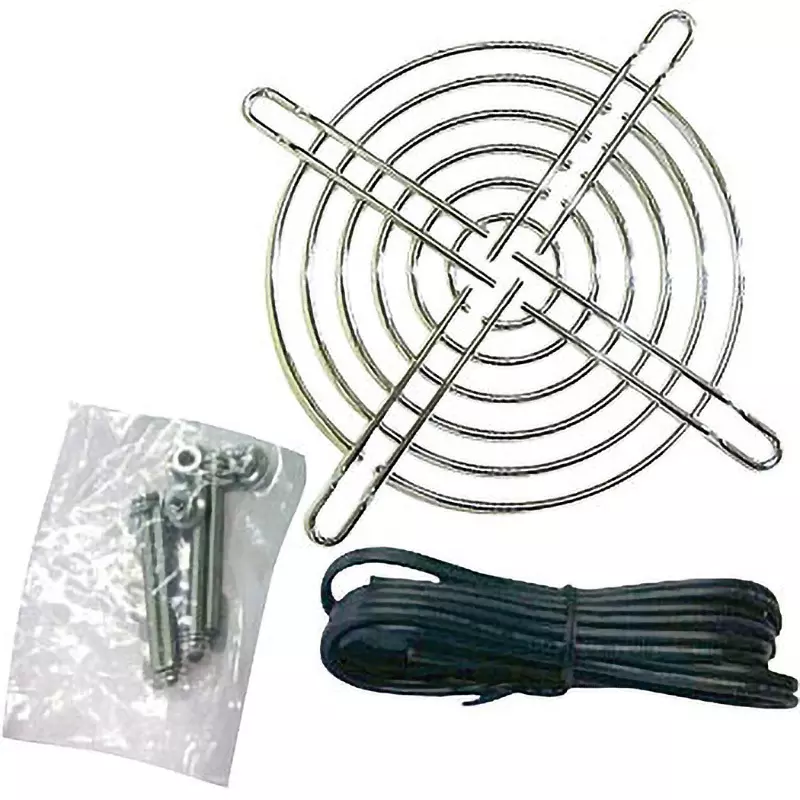

Fan, finger guard, mounting screw (M4X55mm), power cord plug cord (1m), instruction manual |
Series |
MU |
Rated Voltage (V) |
Single Phase 200 |
Frame Thickness (mm) |
38 |
Rated Rotation Speed (min⁻¹ [rpm]) |
2100/2100(50/60Hz) |
Speed Type |
Low speed |
Specifications |
No alarm |
Input (W) |
8/7.5(50/60Hz) |
Fan |
MU1238L-41B |
