| Mounting Hole Spacing, Square (mm) | 92 |
| Shape | Square |
| Maximum Static Pressure (Pa) | 34/44(50/60Hz) |
| Type | Thin general-purpose, set product |
Mounting Hole Spacing, Square (mm) |
92 |
Shape |
Square |
Maximum Static Pressure (Pa) |
34/44(50/60Hz) |
Type |
Thin general-purpose, set product |
Frequency (Hz) |
50/60 |
Monotaro ID |
37652867 |
Sound Pressure Level (dB) |
31/36(50/60Hz) |
Type of Product |
Fan Motor |
Model No |
T-MU925M-41-GP |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Oriental Motor Co., Ltd. |
Maximum Airflow |
0.85/1(50/60 Hz) |
Current (A) (50/60Hz) |
0.08/0.07(50/60Hz) |
Set Contents |

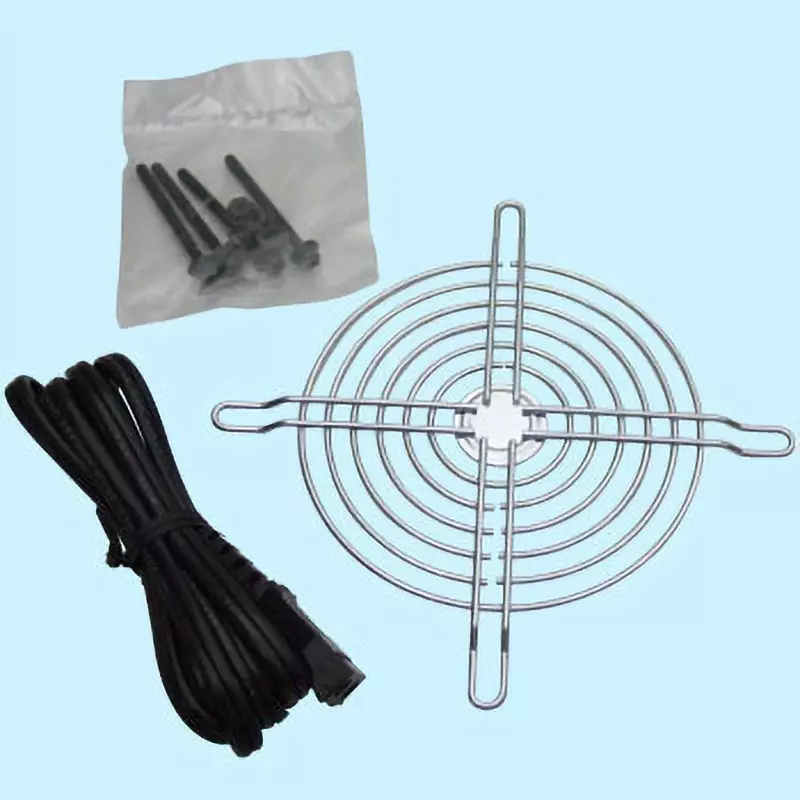

Fan, finger guard, mounting screw (M3X40mm), power supply plug cord (1m), instruction manual |
Series |
MU |
Rated Voltage (V) |
Single Phase 200 |
Features |
Standard/compact/thin |
Frame Thickness (mm) |
25 |
Rated Rotation Speed (min⁻¹ [rpm]) |
2300/2700(50/60Hz) |
Speed Type |
Middle speed |
Specifications |
No alarm |
Input (W) |
9/8(50/60Hz) |
Fan |
MU925M-41 |
