Ships within 19 days
Model No
View
View
View
View
| Type of Product | Basic Switch |

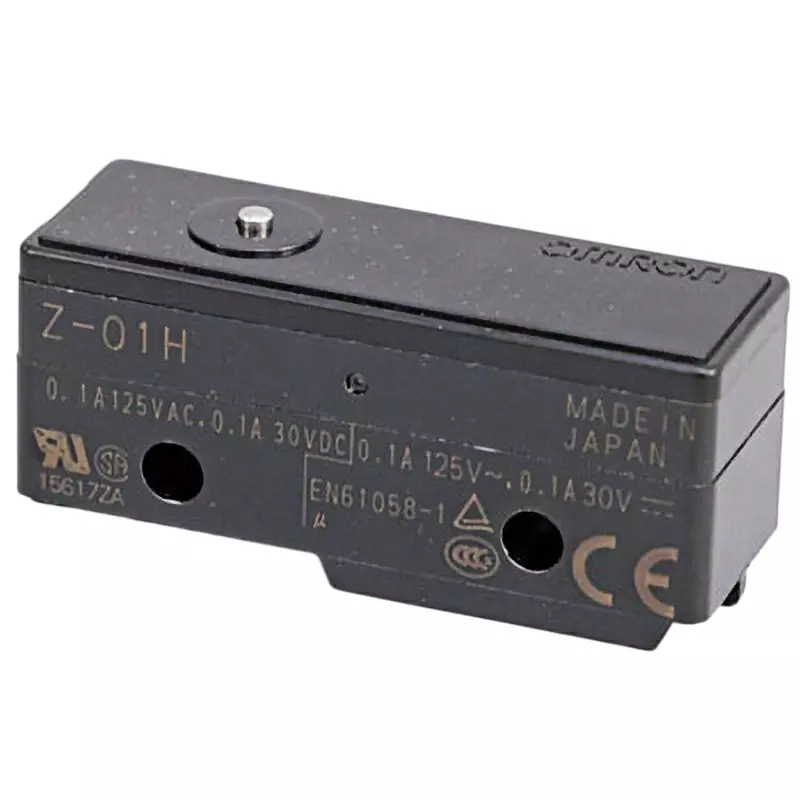

| Model No | Z-01H |
| Protection | IP00 |
| Dimension | 24.2x49.2x17.45 mm |
Type of Product |
Basic Switch |
Model No |
Z-01H |
Protection |
IP00 |
Dimension |
24.2x49.2x17.45 mm |
Type |
High Sensitivity |
Rated Voltage (V) |
AC125, DC8, 14, 30 |
Monotaro ID |
46491173 |
Mass (g) |
About 22-58 |
Terminal Type |
Soldering Terminals |
Insulation Resistance |
100 or more (with DC500V mega) |
Actuator Type |
Pin Push Button Type |
Withstand Voltage |
(Between same pole terminals) AC600V + 50 / 60 Hz + 1min, (between charging metal part and ground, between each terminal and non-charging metal part) AC2000V + 50 / 60 Hz + 1min |
Ambient Humidity to Use |
35 to 85%RH |
Contact Resistance |
50 or less (initial value) |
Protection Class |
IP00 |
Applicable Standard |
UL, CSA, TUV (EN61058-1), CCC (GB14048.5) |
Lead Wire Length (mm) |
- |
Contact Configuration |
1C |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10 to 55 Hz, double amplitude 1.5 mm (malfunction 1ms or less) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Category |
Basic Switch |
Operation Ambient Temperature (°C) |
-25-80 (no icing) |
Shock Resistance (m/s²) |
Up to 1000 m/s² |
