Ships within 19 days
Model No
View
View
View
View
| Type of Product | Basic Switch |
| Model No | Z-15GA55-B5V |

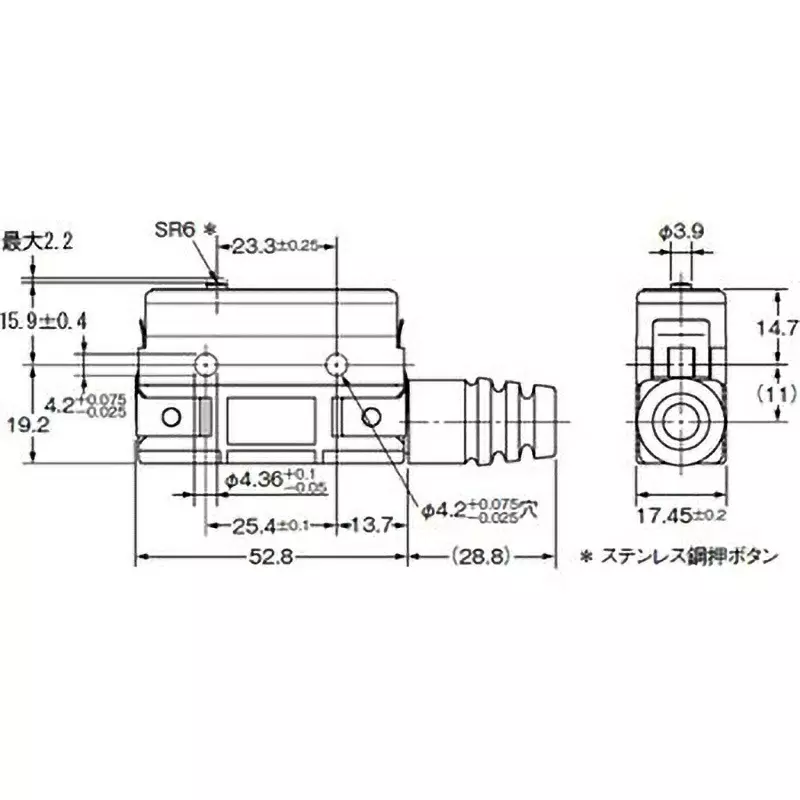

| Dimension | 24.2x49.2x17.45mm |
| Type | Standard |
Type of Product |
Basic Switch |
Model No |
Z-15GA55-B5V |
Dimension |
24.2x49.2x17.45mm |
Type |
Standard |
Rated Voltage (V) |
AC125, 250, 500, DC8, 14, 30, 125, 250 |
Monotaro ID |
35501015 |
Terminal Type |
Screw-Type Terminals With Waterproof Terminal Protective Covers. |
Actuator Type |
Pin Push Button Type |
Withstand Voltage |
(Between Terminals Of the Same Polarity) AC 1000V 50/60 Hz 1 Min, (Between Live Metal Parts And Earth, Between Each Terminal And Non-Live Metal Parts) AC 2000V 50/60 Hz 1 Min |
Contact Spacing |
0.5 mm |
Protection Class |
Equivalent To IP62 (Not Including Terminals) |
Applicable Standard |
UL, CSA, TUV (EN61058-1), CCC (GB14048.5) |
Lead Wire Length (mm) |
- |
Contact Configuration |
1C |
Classification |
Standard |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
