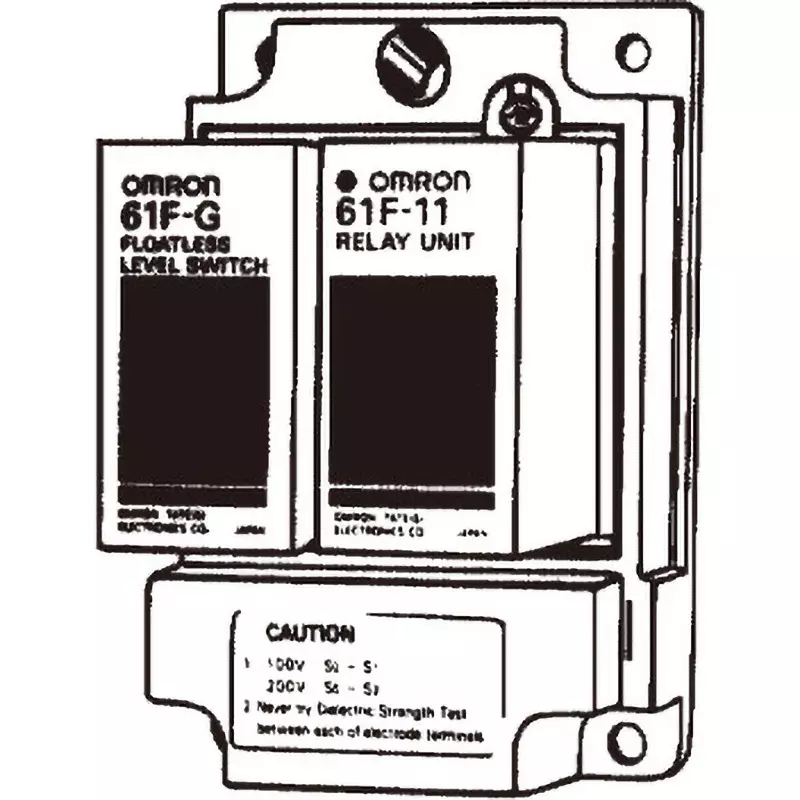

| Type of Product | Floatless Level Switch |
| Model No | 61F-G3D-AC100/200 |
| Output | AC220 V 5 A (Resistive Load), AC220 V 2 A (Inductive Load cosΦ = 0.4) |
| Rated Voltage (V) | AC100/200 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Floatless Level Switch |
Model No |
61F-G3D-AC100/200 |
Output |
AC220 V 5 A (Resistive Load), AC220 V 2 A (Inductive Load cosΦ = 0.4) |
Rated Voltage (V) |
AC100/200 |
Monotaro ID |
46486316 |
Mass (g) |
About 930 g |
Operation Ambient Temperature |
-10°C to 55°C |
Insulation Resistance |
100 mΩ (at DC500 V Mega) |
Withstand Voltage |
AC2000 V/min 50/60 Hz |
Ambient Humidity to Use |
45~85%RH |
Suitable Cable |
1 km or less |
Voltage between Electrodes |
AC8 V |
Power Consumption (VA) |
7.5 VA or less |
Allowable Voltage Fluctuation |
Rated Voltage: 85 to 110% |
Frequency (Hz) |
50/60 Hz |
Width (mm) |
175 |
Length (mm) |
73.5 mm |
Height (mm) |
127 mm |
Service Life |
Electrical: 500000 times or more | Mechanical: 5 million times or more |
Current (mA) |
375.5 |
Country of Origin |
JAPAN |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
