Ships within 25 days
Model No
View
View
View
View

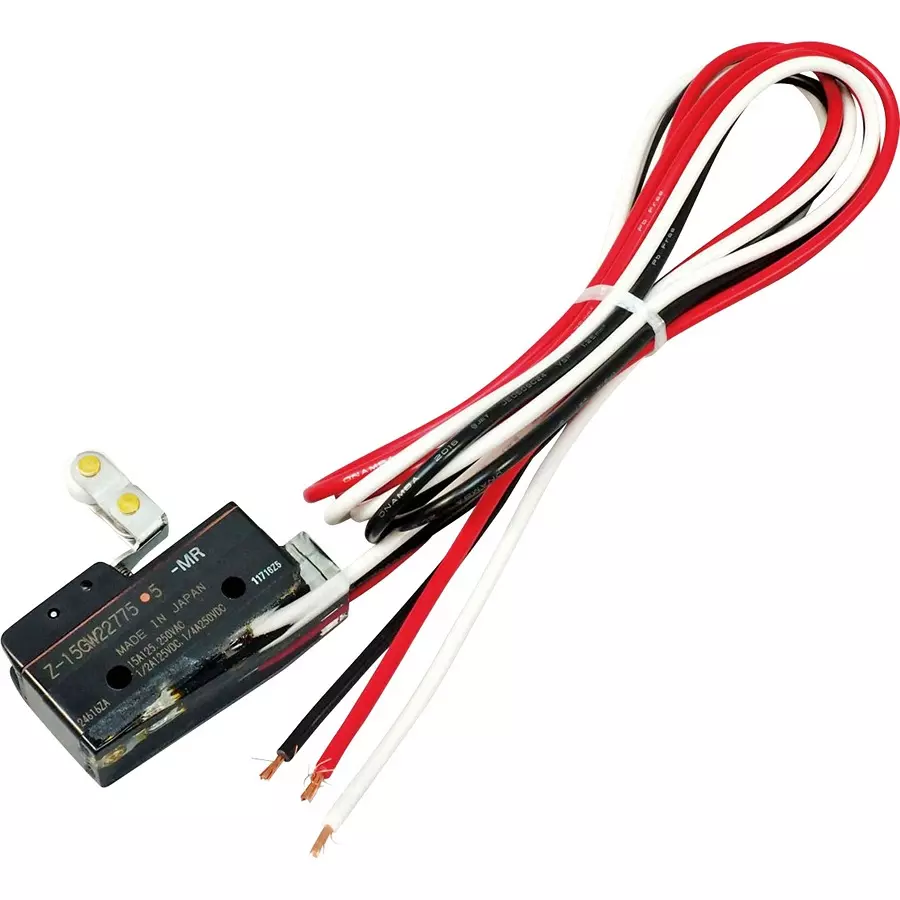

| Type of Product | Basic Switch |
| Model No | Z-15GW227755-MR-1M |
| Dimension | 52.8x49.2x17.45 mm |
| Type | Standard |
Type of Product |
Basic Switch |
Model No |
Z-15GW227755-MR-1M |
Dimension |
52.8x49.2x17.45 mm |
Type |
Standard |
Rated Voltage (V) |
AC125, 250, 500, DC8, 14, 30, 125, 250 |
Monotaro ID |
46492065 |
Mass (g) |
About 22-58 |
Terminal Type |
Molded Terminals |

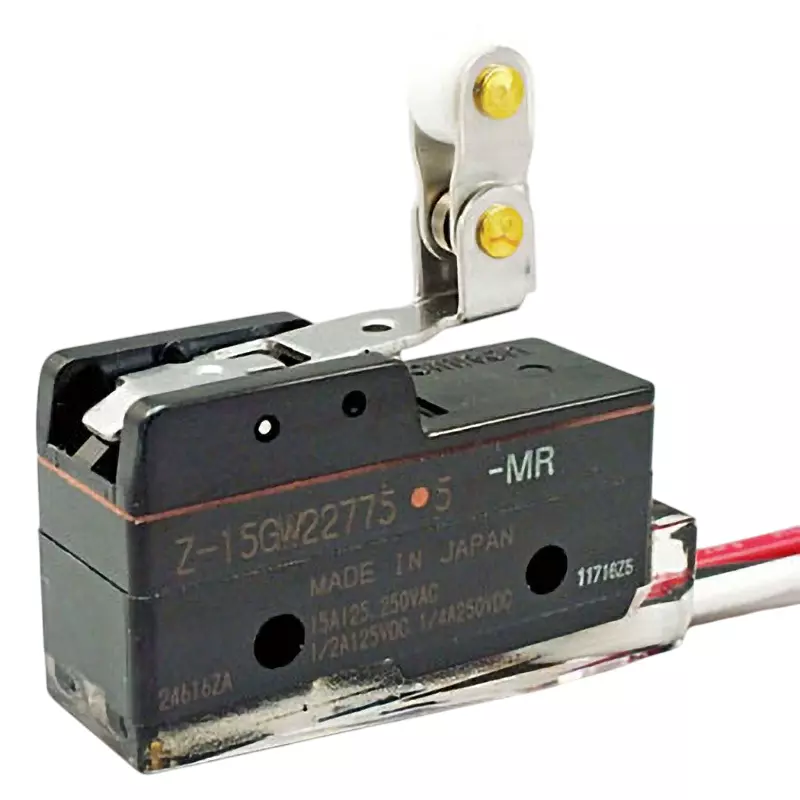

Actuator Type |
One-Way Operation Hinge Roller, Short Lever Type (Small Of) |
Withstand Voltage |
(Between Terminals Of The Same Polarity) Ac1000V 50/60 Hz 1Min, (Between Live Metal Parts And Earth, Between Each Terminal And Non-Live Metal Parts) Ac2000V 50/60 Hz 1Min |
Protection Class |
Drip-proof type: Equivalent to IP62 (excluding terminals) |
Applicable Standard |
UL, CSA, TUV (EN61058-1), CCC (GB14048.5) |
Lead Wire Length (mm) |
1000 |
Contact Configuration |
1C |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Category |
Basic Switch |
