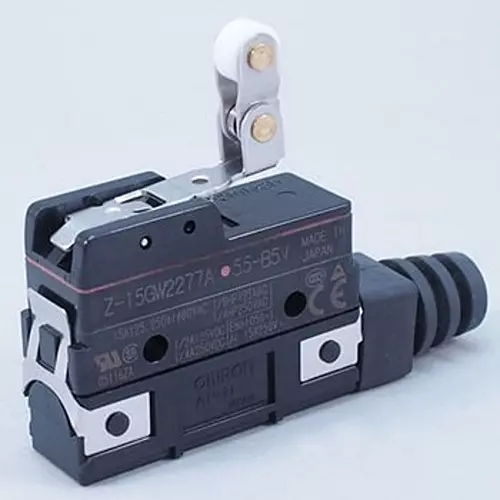

| Type of Product | Basic Switch |
| Model No | Z-15GW2277A55-B5V |
| Type | Standard |
| Rated Voltage (V) | AC125, 250, 500, DC8, 14, 30, 125, 250 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Basic Switch |
Model No |
Z-15GW2277A55-B5V |
Type |
Standard |
Rated Voltage (V) |
AC125, 250, 500, DC8, 14, 30, 125, 250 |
Monotaro ID |
39111676 |
Mass (g) |
About 22-58 |
Allowable Operating Speed |
0.01 mm to 1m / s (value of push button) |
Terminal Type |
Screw-tight terminal with drip-proof terminal protective cover |
Actuator Type |
One-way hinge, roller, short lever type (small OF) |
Withstand Voltage |
(Between terminals of the same polarity) AC1000V 50/60Hz 1min, (Between live metal parts and earth, between each terminal and non-live metal parts) AC2000V 50/60Hz 1min |
Mechanical Durability |
10 million times or more |
Minimum Applicable Load |
DC5 V 160 mA |
Protection Class |
Equivalent to IP62 (excluding terminals) |
Applicable Standard |
UL, CSA, TUV(EN61058-1), CCC(GB14048.5) |
Contact Configuration |
1c |
Shock Resistance |
Up to 1000m/s² |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10 to 55Hz, double amplitude 1.5 mm (malfunction 1ms or less) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-15-80 (no icing) |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (with DC500 V mega) |
Contact Resistance (ohm) |
15 or less (initial value) |
Dimensions (H x W x T) (mm) |
43.3x49.2x17.45 |
