Ships within 19 days
Actuator Type
Model No
View
View
View
View

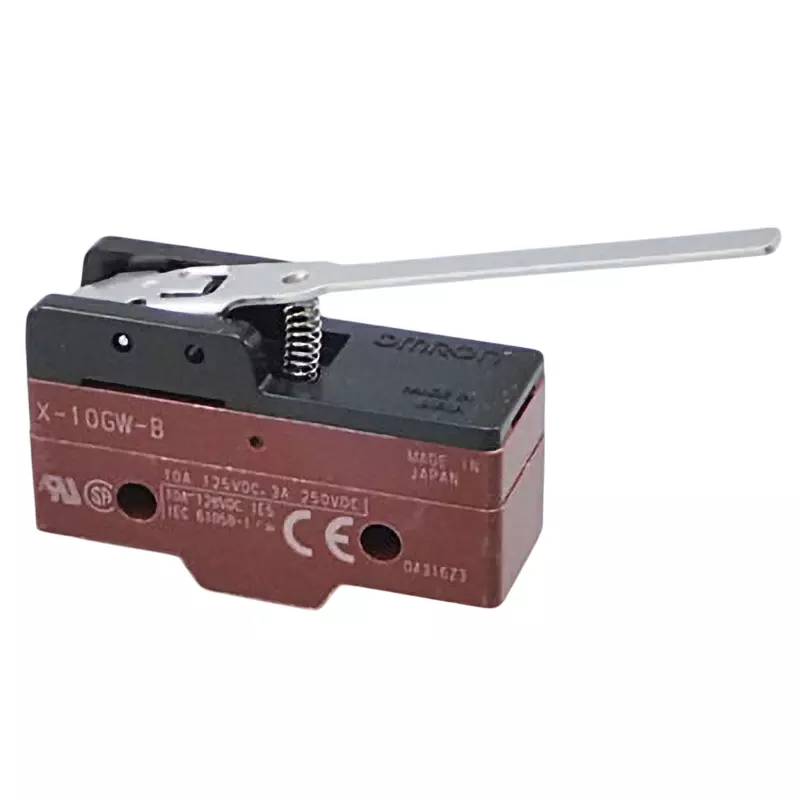

| Type of Product | Magnetic Blow-Off Basic Switch |
| Model No | X-10GW-B |
| Rated Voltage (V) | DC125 |
| Monotaro ID | 39101876 |
Type of Product |
Magnetic Blow-Off Basic Switch |
Model No |
X-10GW-B |
Rated Voltage (V) |
DC125 |
Monotaro ID |
39101876 |
Rated Current (A) |
10 |
Mass (g) |
Approximately 27-63 |
Terminal Type |
Screw terminal (Internal tooth washer) |
Insulation Resistance |
100 or more (with DC500V mega) |
Actuator Type |
Hinge/Lever Type |
Withstand Voltage |
Between homopolar terminals, between charged metal and ground, between each terminal and non-charged metal: AC1500V 50 / 60 Hz 1min |
Contact Spacing |
0.9 mm |
Protection Class |
IP00 |
Contact Configuration |
1C (Single Pole Double Throw Type) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Category |
Basic Switch |
Operation Ambient Temperature (°C) |
-25 to +80 (no icing) |
Sensor Shape |
Rectangular |
