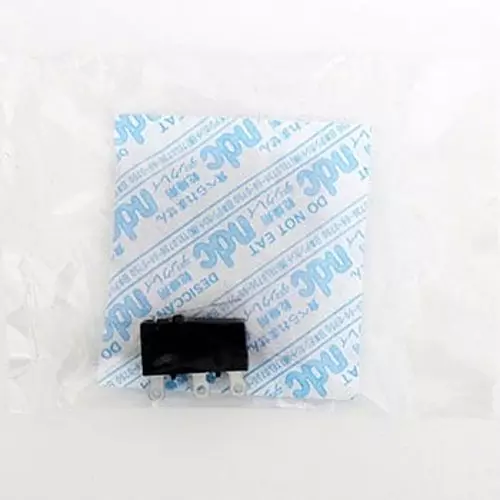

| Type of Product | Ultra-Small Basic Switch |
| Part No | 64-3379-65 |
| Model No | SS-3GLP |
| Rated Voltage (V) | AC125 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Ultra-Small Basic Switch |
Part No |
64-3379-65 |
Model No |
SS-3GLP |
Rated Voltage (V) |
AC125 |
Monotaro ID |
46554216 |
Rated Current (A) |
3 |
Mass (g) |
1.6 (in the case of pin push button type) |
Allowable Operating Speed |
0.1 mm to 1m / s (Pin pushbutton type) |
Electric Shock Protection Class |
ClassⅠ |
Terminal Type |
Solder terminal |
Actuator Type |
Hinge / lever type |
Mechanical Durability |
1,000,000 times or more (60 times / min) |
Electrical Durability |
70,000 times or more (20 times/min AC125V), 100,000 times or more (20 times/min DC30V) |
Protection Class |
IEC IP40 |
Operating Temperature Range |
-25 to 85℃ 60% RH or less (with no icing or condensation) |
Contact Configuration |
1c (single pole double throw type) |
Withstand voltage (V / min) |
Between terminals of the same polarity: AC1000 (50/60Hz), Between live metal parts and earth: AC1500 (50/60Hz), Between each terminal and non-live metal parts: AC1500 (50/60Hz) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shock Resistance (Malfunction) |
Up to 300 m/s² |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Shock Resistance (m/s²) |
Up to 1000 |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (with DC500 V insulation resistance meter) |
Contact Resistance (ohm) |
less than 50 |
Operating Humidity (％) |
85 % RH or less (at 5 to 35°C) |
