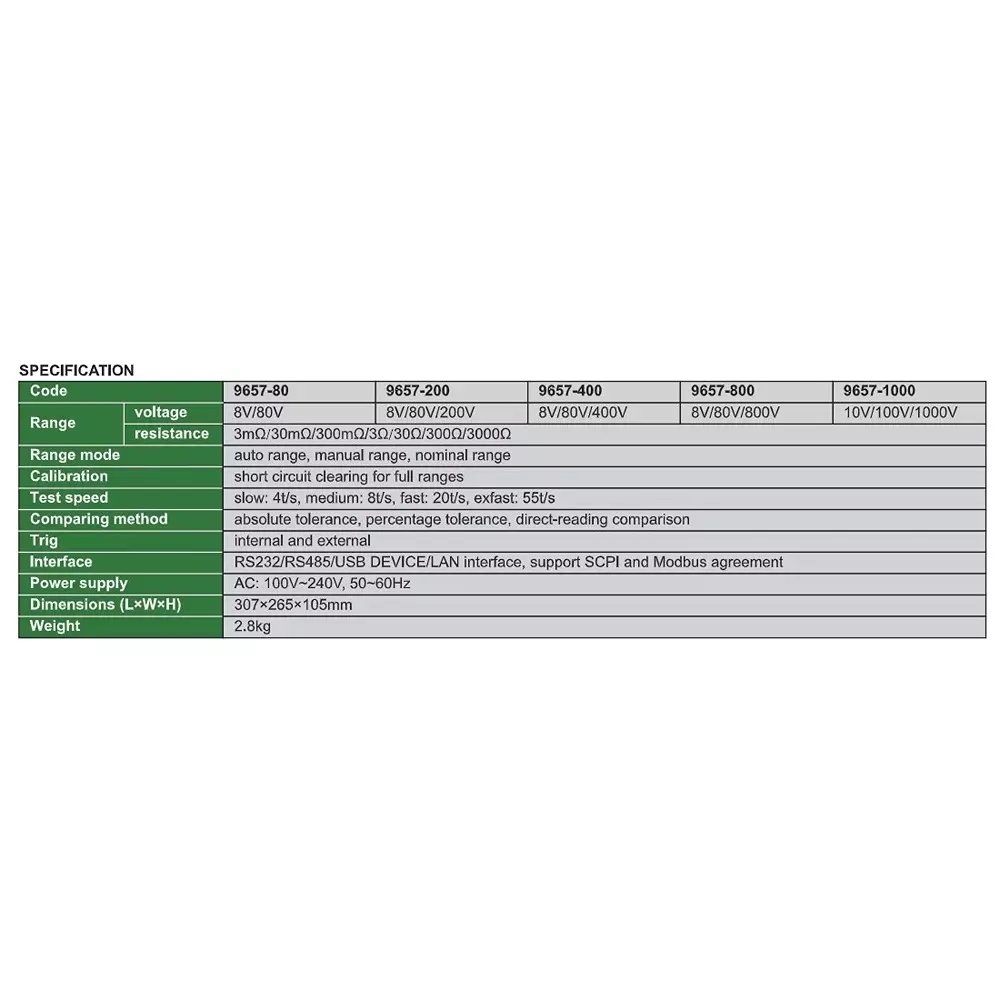

| Power Supply | AC: 100-240 V, 50/60 Hz |
| Voltage | 8 V / 80 V |
| Type of Product | Battery Tester |
| Weight | 2.8 Kg |
Power Supply |
AC: 100-240 V, 50/60 Hz |
Voltage |
8 V / 80 V |
Type of Product |
Battery Tester |
Weight |
2.8 Kg |
Interface |
RS232, RS485, USB DEVICE/LAN Interface, Support SCPI and Modbus Agreement |
Package Contains |

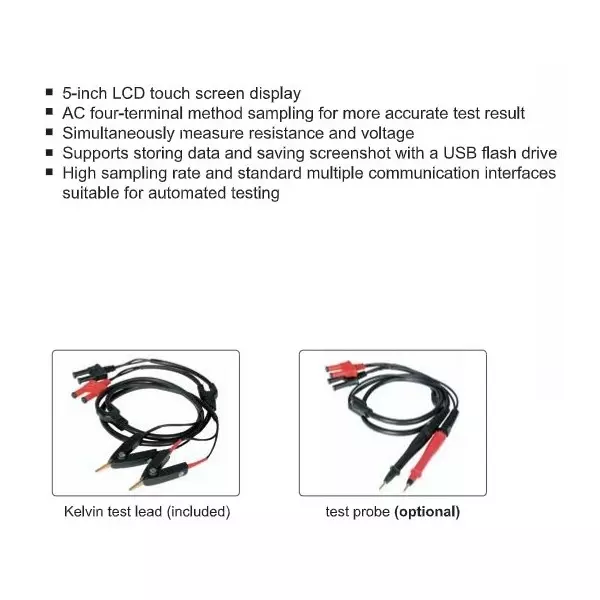

1 x Main Unit, 1 Kelvin Test Lead, 1 x RS232 Cable, 1 x HANDLER Connector |
Dimension |
307x265x105 mm |
Model No |
9657-80 |
Resistance |
3 mΩ / 30 mΩ / 300 mΩ / 3 Ω / 30 Ω / 300 Ω / 3000 Ω |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Insize |
Speed |
Test Speed: Slow: 4 t/s, Medium: 8 t/s, Fast: 20 t/s, Exfast: 55 t/s |
Mode |
Auto Range, Manual Range and Nominal Range |
Comparison Method |
Absolute Tolerance, Percentage Tolerance, Direct-reading Comparison |
Calibration |
Short Circuit Clearing for Full Ranges |
