| Voltage Range | 0.000V~70 V |
| Function | Battery internal resistance measurement, battery voltage measurement, temperature measurement |
| Safety | IEC 61010 |
| Temperature Resolution | 0.1℃ |
Voltage Range |
0.000V~70 V |
Function |
Battery internal resistance measurement, battery voltage measurement, temperature measurement |
Safety |
IEC 61010 |
Temperature Resolution |
0.1℃ |
Resistance Resolution |
1 u Ω |
Resistance Range |
0.000mΩ~3 Ω |
Power Consumption |
300mA MIN / 500mA MAX |
Operating Humidity |
below 80%RH |
Temperature Range |
-10.0℃~60.0℃ |
Accessories |

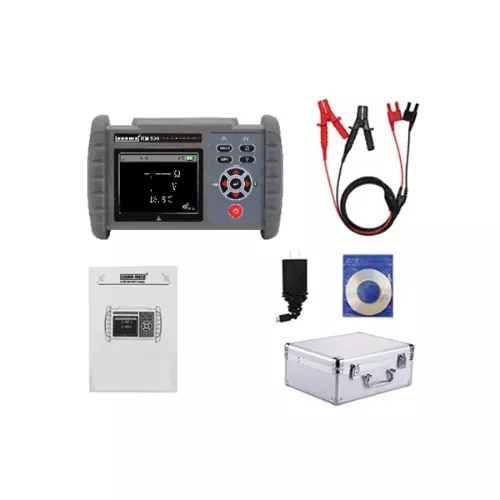

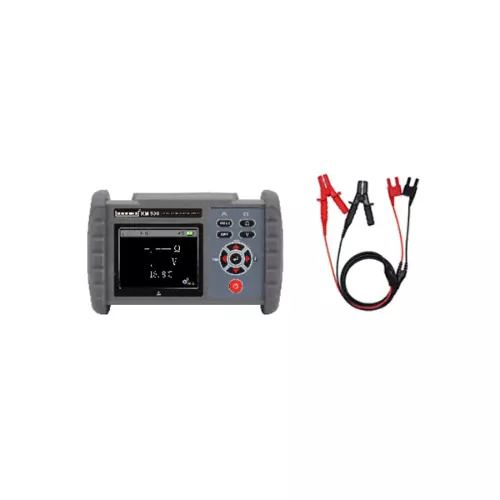

Test leads, USB cable, Charger, Software CD, Instruction Manuals, Instruments box |
Power Supply |
DC 3.7V lithium battery |
Operating Temperature |
-10℃～60℃ |
Storage Temperature |
20℃～60℃ |
Type of Product |

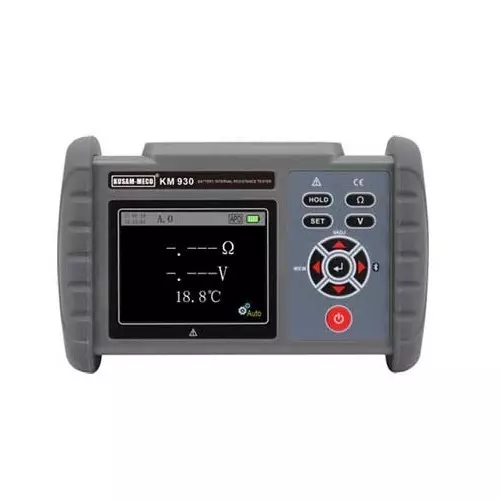

Battery Internal Resistance Tester |
Storage Humidity |
below 70%RH |
Weight |
480g (With battery) |
Voltage Resolution |
1 mV |
Insulation Resistance |
Above 20MΩ (500V between circuit and case) |
Withstand Voltage |
AC 3700V/RMS (between circuit and case) |
External Magnetic Field |
＜40A/m |
External Electric Field |
＜1V/m |
Model No |
KM 930 |
