Showing 40 out of 56 products
Indicator : Operation indicator (red LED)
Response Time : Light ON: Max. 20㎲,, Dark ON: Max. 100㎲
Power Supply : 5-24 V DC ±10%(ripple P-P : max. 10%)
Material : Case: PBT, Sensing part: PC
Type of Product : Photoelectric Sensors
Weight : Approx. 30 g
Ambient Temperature : -20 to 65 ℃
Insulation Resistance : ≥20 MΩ (250 V DC megger)
Sensing Distance : 5 mm
Protection Structure : IP50
Light Source : Infrared LED
Sensing Target : Opaque, ≥Ø0.8mmx2mm min.
Sensing Type : Through-Beam Type
Operation Mode : Light On/Dark On(Set By Control Wire)
Current Consumption : Max. 30 mA
Control Output : NPN open collector
Dielectric Strength : 1,000 V AC 50/60 Hz for 1 minute
Ambient Illumination : Fluorescent lamp: Max. 1,000lx(received illumination)
Environment Ambient Humidity : 35 to 85% RH, storage: 35 to 85% RH
Hysteresis Distance : ≤0.05 mm
Environment Ambient Temperature : -20 to 55℃, storage : -25 to 85℃
Load Voltage : ≤30 V DC
Residual voltage (V) : NPN: ≤1.2 V DC, PNP: ≤ 1.2 V DC
Peak Emission Wavelength : 940nm
Type of Product : Photoelectric Sensors
Protection Structure : IP67
Type of Product : Photoelectric Sensors
Protection Structure : IP67
Operation Mode : Selectable Light On Or Dark On By Control Wire (White)
Type of Product : Photoelectric Sensors
Ambient Temperature : -10 to 60 ℃
Protection Structure : IP66
Sensing Type : Diffuse reflective type
Operation Mode : Light ON/Dark ON(set by control wire)
Connection : Cable type
Type of Product : Photoelectric Sensors
Ambient Temperature : -25 to 65 ℃
Sensing Distance : 3m
Protection Structure : IP67
Sensing Type : Through-beam type
Response Time : Max. 1 ms
Material : Case: Polycarbonate, Lens, Lens cover: Polymethyl Methacrylate Acrylic
Type of Product : Photoelectric Sensors
Sensing Distance : 100 mm
Protection Structure : IP67
Sensing Target : Opaque, Translucent material
Sensing Type : Diffuse Reflective Type
Current Consumption : Max. 30 mA
Accessories : M18 fixing nut: 2, adjustment screwdriver
Sensitivity Adjuster : Sensitivity adjuster
Ambient Illumination : Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment Ambient Humidity : 35 to 85% RH, storage: 35 to 85% RH
Type of Product : Photoelectric Sensors
Protection Structure : IP65
Sensing Type : Retroreflective type(built-in polarizing filter)
Operation Mode : Light ON/Dark ON(set by Volume)
Type of Product : Photoelectric Sensors
Sensing Distance : 700mm
Protection Structure : IP66
Sensing Type : Diffuse reflective type
Response Time : Max. 1ms
Type of Product : Photoelectric Sensors
Sensing Distance : 100mm
Product Series : BRQ Series
Power : 10-30VDC
Protection Structure : IP67
Light Source : Infrared LED(850nm)
Sensing Type : Diffuse reflective type
Current Consumption : Max. 30mA
Type of Product : Photoelectric Sensors
Ambient Temperature : -25 to 55 ℃
Protection Structure : IP65
Sensing Type : Diffuse Reflective Type
Operation Mode : Light ON/Dark ON(set by Volume)
Connection : Connector type
Indicator : Operation indicator (red LED)
Response Time : Light ON: Max. 20㎲,, Dark ON: Max. 100㎲
Material : Case: PBT, Sensing part: PC
Type of Product : Photoelectric Sensors
Ambient Temperature : -20 to 65 ℃
Insulation Resistance : ≥20 MΩ (250 V DC megger)
Sensing Distance : 5 mm
Protection Structure : IP50
Light Source : Infrared LED
Sensing Target : Opaque, ≥Ø0.8mmx2mm min.
Sensing Type : Through-Beam Type
Operation Mode : Light On/Dark On(Set By Control Wire)
Current Consumption : Max. 30 mA
Control Output : PNP open collector
Dielectric Strength : 1,000 V AC 50/60 Hz for 1 minute
Load Current : Max. 100 mA
Ambient Illumination : Fluorescent lamp: Max. 1,000lx(received illumination)
Environment Ambient Humidity : 35 to 85% RH, storage: 35 to 85% RH
Hysteresis Distance : ≤0.05 mm
Environment Ambient Temperature : -20 to 55℃, storage : -25 to 85℃
Load Voltage : ≤30 V DC
Residual voltage (V) : NPN: ≤1.2 V DC, PNP: ≤ 1.2 V DC
Type of Product : Photoelectric Sensors
Weight : 50 gm
Ambient Temperature : -25-50° C
Sensing Distance : 2 meter
Protection Structure : IP64
Ambient Humidity : 35 to 85% RH, storage: 35 to 85% RH
Sensing Target : Opaque, Translucent Material
Sensing Type : Diffuse Reflective
Control Output : PNP open collector
Type of Product : Photoelectric Sensors
Sensing Distance : 15m
Product Series : BJ Series
Power : 12-24VDC
Protection Structure : IP65
Sensing Type : Through-beam type
Current Consumption : Max. 30mA
Environment Ambient Humidity : 35 to 85% RH
Type of Product : Photoelectric Sensors
Ambient Temperature : -25 to 55 ℃
Protection Structure : IP65
Sensing Type : Diffuse reflective type
Operation Mode : Light ON/Dark ON(set by Volume)
Connection : Cable Type
Type of Product : Photoelectric Sensors
Protection Structure : IP65
Sensing Type : Narrow beam Reflective Type
Operation Mode : Light ON/Dark ON(set by Volume)
Connection : Cable type
Type of Product : Photoelectric Sensors
Ambient Temperature : -20 to 65 ℃
Sensing Distance : 5m(MS-2)
Protection Structure : IP50
Operation Mode : Light ON/Dark ON (Set By Volume)
Connection : Cable type
Type of Product : Photoelectric Sensors
Ambient Temperature : -20 to 65 ℃
Protection Structure : IP50
Sensing Type : Through-beam type
Operation Mode : Light ON/Dark ON (Set By Volume)
Connection : Cable Type
Response Time : Max. 1ms
Type of Product : Photoelectric Sensors
Ambient Temperature : -25 to 65 ℃
Protection Structure : IP66
Operation Mode : Light On/Dark On(Set By Control Wire)
Connection : Cable type
Type of Product : Photoelectric Sensors
Ambient Temperature : -20 to 65 ℃
Protection Structure : IP50
Operation Mode : Light ON/Dark ON (Set By Volume)
Connection : Cable Type
Type of Product : Photoelectric Sensors
Ambient Temperature : -25 to 65 ℃
Protection Structure : IP66
Sensing Target : Opaquematerial of min. Ø4mm
Operation Mode : Light On/Dark On(Set By Control Wire)
Response Time : Max. 1 ms
Material : Case: Polycarbonate, Lens, Lens cover: Polymethyl Methacrylate Acrylic
Type of Product : Photoelectric Sensors
Weight : Approx. 120 g (approx. 50 g)
Sensing Distance : 3 m
Protection Structure : IP67
Light Source : Red LED (660 nm)
Sensing Target : Opaque material of min. Ø75mm
Sensing Type : Retroreflective Type with Built-In Polarizing Filter
Operation Mode : Selectable Light On Or Dark On By Control Wire (White)
Current Consumption : Max. 30 mA
Sensitivity Adjuster : Sensitivity adjuster
Ambient Illumination : Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment Ambient Humidity : 35 to 85% RH, storage: 35 to 85% RH
Environment Ambient Temperature : -25 to 60℃, storage: -30 to 70℃
Connection : Cable Type (3.5 , 2 mm)
Type of Product : Photoelectric Sensors
Ambient Temperature : -25 to 55 ℃
Protection Structure : IP65
Sensing Type : Diffuse reflective type
Operation Mode : Light ON/Dark ON(set by Volume)
Current Consumption : Max. 30mA
Connection : Cable Type
Response Time : Max. 1ms
Type of Product : Photoelectric Sensors
Ambient Temperature : -25 to 65 ℃
Sensing Distance : 50mm
Protection Structure : IP66
Light Source : Infrared LED(940nm)
Operation Mode : Light ON/Dark ON (Set By Wire)
Current Consumption : Max. 30mA
Type of Product : Photoelectric Sensors
Ambient Temperature : -10 to 60 ℃
Protection Structure : IP66
Operation Mode : Light On/Dark On(Set By Control Wire)
Page 1 of 2 results
| Product Name | Specifications | Expected Price | Dispatch Time | Discount |
|---|---|---|---|---|
| Autonics Infrared LED Through-Beam Type 5 mm Sensing Distance Photoelectric Sensor, BS5-L2M | Ambient Illumination Fluorescent lamp: Max. 1,000lx(received illuminat | Ambient Temperature -20 to 65 | ₹848 | 24 hrs | -- |

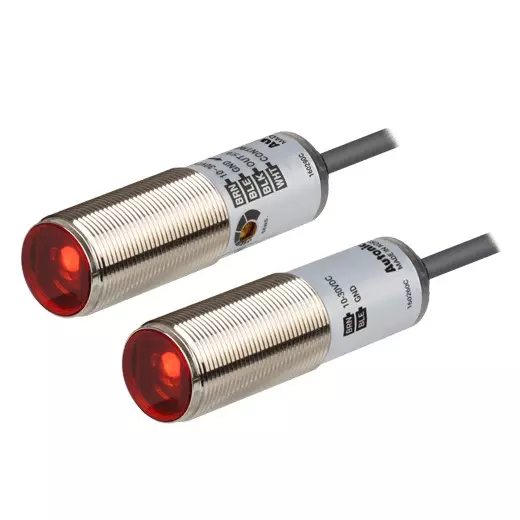

| Autonics BRQ Series BRQM400-DDTA Photoelectric Sensors | Control Output NPN open collector | Current Consumption Max. 30mA | ₹3,067 | 24 hrs | -- |
| Autonics Photo Sensor 10...30V DC BRQM400-DDTA-P | Control Output PNP open collector | Part No BRQM400-DDTA-P | ₹3,067 | 4 days | -- |
