Insize Other Precision Gauge

Showing 40 out of 148 products

Sort by

Insize 6284-3 Styli For Dail Test Indicator Applicable For 2381-08

Ships within 60 days

Insize Styli For Dail Test Indicator (6284 Series)

By Insize

₹365 - ₹542

You save ₹58!

13.83% OFF

Insize Styli For Dail Test Indicator (6284 Series) Dial test indicators are precision measurement tools used in mechanical engineering and metrology to measure small distances and deviations with high accuracy. They consist of a dial face, a needle that moves in response to very slight changes, and a stylus that makes contact with the object being measured. The stylus is a critical component of the dial test indicator as it directly interacts with the surface of the workpiece, transmitting minute movements to the indicator mechanism. Styli for dial test indicators come in various shapes, sizes, and materials to suit different measurement needs. Common materials for styli include tungsten carbide for durability and wear resistance, ruby for its hardness and smoothness, and various grades of steel for general-purpose applications. The shape of the stylus can vary from conical to cylindrical, pointed, or flat, depending on the specific requirements of the measurement task, such as the surface finish of the part or the accessibility of the measurement point.

Type of Product : Styli For Dail Test Indicator

Ships within 24 hrs

INSIZE Sheet Metal Gage 4809

By Insize

₹1,607 ~~₹1,639~~

You save ₹32!

1.95% OFF

The INSIZE Sheet Metal Gage 4809 is a high-quality measuring tool designed for professionals who work with sheet metal. This gage is made of durable stainless steel, making it resistant to corrosion and wear. It is a versatile tool that can be used to measure the thickness of sheet metal, wire, and other materials.
The INSIZE Sheet Metal Gage 4809 has a measuring range of 0.5mm to 2.5mm, which makes it suitable for a wide range of applications. It has a clear and easy-to-read scale that is marked in both millimeters and inches, allowing for precise measurements. The gage also features a locking mechanism that ensures accurate readings and prevents the tool from slipping during use.
One of the key features of the INSIZE Sheet Metal Gage 4809 is its compact size and lightweight design. It is small enough to fit in your pocket or tool bag, making it easy to carry around and use on the go. The gage is also very easy to use, with a simple design that requires no special training or expertise.
The INSIZE Sheet Metal Gage 4809 is an essential tool for anyone who works with sheet metal. It is ideal for metalworkers, machinists, mechanics, and anyone else who needs to measure the thickness of sheet metal or other materials. The gage is also suitable for use in a variety of industries, including automotive, aerospace, construction, and manufacturing.
Overall, the INSIZE Sheet Metal Gage 4809 is a reliable and accurate measuring tool that is built to last. Its durable construction, compact size, and easy-to-use design make it an excellent choice for professionals who need to measure sheet metal thickness on a regular basis. Whether you are a seasoned metalworker or just starting out, this gage is sure to be a valuable addition to your toolkit.

Insize Precision Vice with 0-100 mm Jaw Opening and 73 mm Jaw Width, 6526-100

Ships within 24 hrs

Insize Quick Moving Precision Vice (6526 Series)

By Insize

₹6,843 - ₹10,973

You save ₹2,041!

15.68% OFF

The Insize Quick Moving Precision Vice 6526 is a versatile and reliable tool designed for precision workholding in machining, milling, and drilling operations. It features a robust construction with high-quality materials, ensuring durability and long-lasting performance in demanding industrial environments. One of the standout features of the Insize 6526 vice is its quick-moving design, which allows for rapid adjustment and positioning of workpieces. This makes it ideal for applications where efficiency and speed are essential, enabling operators to quickly secure and release workpieces with minimal downtime. The vice also offers excellent precision, thanks to its precise machining and accurate alignment mechanisms. This ensures that workpieces are held securely and accurately, minimizing the risk of errors and rework. Additionally, the Insize 6526 vice is equipped with a range of convenient features, including a swivel base for easy positioning, hardened and ground jaws for improved grip, and a compact design for use in tight spaces. Overall, the Insize Quick Moving Precision Vice 6526 is a reliable and versatile tool that is well-suited for a wide range of precision machining applications.

Type of Product : Precision Vice

Material : Alloy Steel

Hardness : HRC56-58

Squareness : 5 µm/100 mm

Parallelism : 3 µm/100 mm

Insize Circumference Gage 7114-2200, Dia 300-700 mm

Ships within 24 hrs

Insize Circumference Gage Economic Type (7114 Series)

By Insize

₹955 - ₹1,651

You save ₹118!

9.29% OFF

The Insize Circumference Gauge is a specialized measuring tool designed for accurately measuring the circumference of cylindrical objects. It is commonly used in various industries, including manufacturing, engineering, and quality control, where precise measurements of cylindrical parts are essential for ensuring proper fit, function, and quality. The Insize Circumference Gauge typically consists of a measuring head with an adjustable contact point or anvil and a scale or digital display for reading measurements. The contact point makes contact with the surface of the cylindrical object, allowing the user to determine its circumference accurately. To use the Insize Circumference Gauge, the user adjusts the contact point to the desired position and then places it around the circumference of the object being measured. The gauge is then tightened securely to ensure accurate contact with the surface. The measurement is read from the scale or digital display, providing the circumference value of the cylindrical object. Some models of the Insize Circumference Gauge may feature additional functions or accessories to enhance usability and accuracy. These may include interchangeable contact points for measuring different diameters, data output capabilities for transferring measurements to a computer or data collection device, and built-in calibration features for ensuring accurate measurements over time. Overall, the Insize Circumference Gauge offers precision, reliability, and ease of use for measuring the circumference of cylindrical objects in various industrial applications. Its accurate measurement capabilities make it an essential tool for quality assurance, machining, and engineering tasks where precise measurements are required.

Type of Product : Circumference Gage

Graduation : ± 0.1 mm

Material : Stainless Steel

Usage For : To Measure Circumference Of Pipes , Wooden Blocks, Big Size Tanks, tires etc.

Accuracy Diameter(mm) : ± 0.5 mm

Accuracy Of Circumference : ± 1.5 mm

Package Contains : Product Catalog

Insize Taper Gauge 4833-1 Range 0.8-15 mm

Ships within 6 days

Insize Taper Gages (4833 Series)

By Insize

₹612 - ₹1,108

The Insize Taper Gauge 4833 is a precision measurement tool designed for accurately measuring the taper of machined surfaces. It is commonly used in manufacturing, machining, and quality control processes where precise taper measurements are crucial. The gauge features a durable construction with a fine adjustment mechanism, allowing for precise and repeatable measurements. It has a range of 0-6 inches (0-150mm) and a resolution of 0.001 inches (0.02mm), making it suitable for a wide range of taper measurement applications. The Insize Taper Gauge 4833 is easy to use, with a simple and intuitive design. It is equipped with a locking screw to secure the gauge at the desired position, ensuring accurate measurements. The gauge also features a clear, easy-to-read scale for quick and convenient taper measurements. Overall, the Insize Taper Gauge 4833 is a reliable and accurate tool for measuring tapers in various applications. Its robust construction, precision design, and user-friendly features make it a valuable addition to any workshop or manufacturing facility.

Type of Product : Taper Gage

Material : Stainless Steel

Accuracy : ±0.1

Graduation (Inch) : 1/64 Inch

Insize 25-800 µm Range Wet Film Gage with ±5 µm Accuracy, 4845-1

Ships within 6 days

Insize Wet Film Gage (4845 Series)

By Insize

₹1,533 - ₹2,241

You save ₹190!

8.17% OFF

The Insize Wet Film Gage 4845 is a precision tool designed for measuring the thickness of wet paint films during application. It is a crucial instrument in industries such as automotive, aerospace, and manufacturing, where the quality and consistency of coatings are essential. This gage features a simple yet effective design, with a durable stainless steel construction that ensures long-term reliability and accuracy. The gage consists of a series of teeth of varying lengths, each marked with a specific measurement value. To use the gage, the teeth are pressed gently onto the wet paint film, and the length of the longest tooth that retains a trace of the wet film indicates the thickness. The Insize Wet Film Gage 4845 provides precise measurements, allowing painters and coating applicators to ensure that the coating thickness meets specifications. This helps prevent issues such as over-application, which can lead to drying and adhesion problems, or under-application, which may result in inadequate protection or coverage. Overall, the Insize Wet Film Gage 4845 is a reliable and easy-to-use tool that plays a crucial role in ensuring the quality and consistency of paint and coating applications in various industries.

Type of Product : Wet Film Gage

Material : Stainless Steel

Insize Range 0.25-6 mm Pitch Gauge 4820-1241

Ships within 6 days

Insize Metric 60⁰ Screw Type Pitch Gages

By Insize

₹683 - ₹1,025

Insize Metric 60⁰ Screw Type Pitch Gages pitch gauge is a precision instrument used primarily in aviation and engineering to measure the angle or pitch of a surface relative to a reference plane, typically the horizon. This device plays a crucial role in ensuring the proper alignment of aircraft control surfaces, such as the wings and tail, to maintain stability and control during flight. The pitch gauge consists of a calibrated scale or digital readout that indicates the degree of tilt or inclination of the surface being measured. It is designed to be highly accurate, often calibrated to fractions of a degree, allowing mechanics and pilots to make precise adjustments. In aviation, the pitch gauge is used during pre-flight inspections to verify that the aircraft's control surfaces are correctly aligned according to manufacturer specifications. This alignment is critical for aerodynamic performance and safety in flight, ensuring the aircraft responds predictably to control inputs. Outside of aviation, pitch gauges are also employed in various engineering applications, such as in the construction of vehicles, boats, and even in carpentry and construction to measure and set angles accurately.

Type of Product : Pitch Gauge

Insize Non Magnetic Stainless Steel Edge Finder with 168 mm Spindle Length, 6558-44

Ships within 6 days

Insize Non Magnetic Stainless Steel Edge Finder For EDM 6558 Series (Ball Dia: 1-5 mm)

By Insize

₹1,297 - ₹2,005

You save ₹300!

13.04% OFF

Insize Non Magnetic Stainless Steel Edge Finder For EDM 6558 Series (Ball Dia: 1-5 mm) Edge Finder is a precision tool designed for machinists, engineers, and hobbyists who work with milling machines, lathes, or CNC equipment. This indispensable device is used to accurately locate the edges of a workpiece, ensuring precise alignment and measurements for various machining operations. Constructed from high-quality, durable materials, the Edge Finder typically features a cylindrical shank that fits into the machine’s collet or chuck, and a probe or contact tip at the opposite end. When the machine spindle rotates, the user moves the workpiece until the tip touches the edge. At the point of contact, the probe will visibly shift, or "kick," indicating the exact edge location. Edge Finders come in different types, including mechanical, optical, and electronic variants. Mechanical edge finders are the most common, with a spring-loaded tip that visibly deflects upon contact. Optical edge finders use light and lenses to enhance visibility, while electronic edge finders provide a digital readout for even greater accuracy. Using an edge finder enhances the precision of machining tasks, reduces errors, and saves time by eliminating guesswork. This tool is essential for any machining setup that requires meticulous positioning and alignment of materials, leading to higher quality and consistency in finished products.

Type of Product : Edge Finder

Insize Range 4-62 TPI Pitch Gauge 4820-328

Ships within 6 days

Insize Whitworth 55⁰ Screw Type TPI Pitch Gages

By Insize

₹931 - ₹1,120

Insize Whitworth 55⁰ Screw Type TPI Pitch Gages pitch gauge is a precision instrument used primarily in aviation and engineering to measure the angle or pitch of a surface relative to a reference plane, typically the horizon. This device plays a crucial role in ensuring the proper alignment of aircraft control surfaces, such as the wings and tail, to maintain stability and control during flight. The pitch gauge consists of a calibrated scale or digital readout that indicates the degree of tilt or inclination of the surface being measured. It is designed to be highly accurate, often calibrated to fractions of a degree, allowing mechanics and pilots to make precise adjustments. In aviation, the pitch gauge is used during pre-flight inspections to verify that the aircraft's control surfaces are correctly aligned according to manufacturer specifications. This alignment is critical for aerodynamic performance and safety in flight, ensuring the aircraft responds predictably to control inputs. Outside of aviation, pitch gauges are also employed in various engineering applications, such as in the construction of vehicles, boats, and even in carpentry and construction to measure and set angles accurately.

Type of Product : Pitch Gauge

Insize 0-12.7 mm Digital Linear Gage with 1.6 µm Accuracy and IP43 Rating, 7130-10

Ships within 6 days

Insize Digital Linear Gage (7130 Series)

By Insize

₹27,139 - ₹30,679

You save ₹4,004!

13.05% OFF

The Insize Digital Linear Gage with 1.6 µm Accuracy and IP43 Rating is a high-precision measuring instrument designed for accurately measuring linear dimensions in various industrial applications. This digital linear gage combines exceptional accuracy with a durable construction that provides protection against dust and water ingress. With a measurement accuracy of 1.6 µm (micrometers), the Insize Digital Linear Gage offers precise measurement capabilities, making it suitable for applications where tight tolerances are required. Whether measuring dimensions of machined parts, conducting quality control inspections, or performing metrology tasks, this gage ensures reliable and repeatable results. The IP43 rating signifies that the digital linear gage is protected against solid objects greater than 1 mm in diameter and water spray at an angle of up to 60 degrees from vertical. This level of protection makes the instrument suitable for use in environments where moderate levels of dust and moisture are present, providing peace of mind to users working in demanding industrial settings. Key features of the Insize Digital Linear Gage with 1.6 µm Accuracy and IP43 Rating may include: 1. High-resolution digital display: Provides clear and easy-to-read measurements, allowing operators to quickly and accurately determine dimensions. 2. Robust construction: Built to withstand the rigors of industrial environments, ensuring long-lasting durability and reliability. 3. Zero-setting function: Enables users to establish a reference point for measurements, enhancing measurement accuracy and efficiency. 4. Data output capabilities: Allows measurement data to be transferred to external devices for further analysis or documentation, streamlining data management processes. 5. User-friendly interface: Intuitive controls and ergonomic design make the gage easy to use, reducing operator fatigue and improving productivity. Overall, the Insize Digital Linear Gage with 1.6 µm Accuracy and IP43 Rating offers precision, durability, and reliability for accurate measurement of linear dimensions in challenging industrial environments. Its combination of high accuracy and IP43-rated protection makes it an ideal choice for a wide range of metrology and quality control applications.

Range : 0-12.7 mm

Accuracy : 1.6 µm

Resolution : 0.1 µm

IP Rating : IP43

Insize Concentricity Gage Accuracy 2m Diameter 3-45 mm, 4725-45

Ships within 6 days

Insize Concentricity Gage with Fixed Stand (4725 Series)

By Insize

₹93,219 - ₹2,94,999

You save ₹14,502!

13.57% OFF

The Insize Concentricity Gage with Fixed Stand, 4725, is a precision measuring instrument designed for accurately measuring the concentricity of cylindrical workpieces. It consists of a fixed stand with a dial indicator and a V-block to support the workpiece. The fixed stand provides a stable base for the measurement process, ensuring repeatable and accurate results. The V-block securely holds the workpiece in place, allowing for precise measurement of its concentricity. The dial indicator is used to measure the variation in the radial distance between the axis of the workpiece and a reference point on its surface. The gage is ideal for use in various industries, including manufacturing, machining, and quality control. It is commonly used to inspect the concentricity of shafts, pins, and other cylindrical components, ensuring they meet the required specifications and standards. The Insize Concentricity Gage with Fixed Stand, 4725, is easy to use and provides reliable measurements, making it a valuable tool for any workshop or production facility that requires accurate concentricity measurements.

Type of Product : Concentricity Gage

Insize Shank Dia 20 mm Electronic Edge Finder Without Beeper 6566-2

Ships within 6 days

Insize Electronic Edge Finder Beeper (6566 Series)

By Insize

₹6,607 - ₹7,433

The shank is electrically conducted to the metal workpiece through the chuck and table. Without Beeper . With Battery 23AE , 12x1 PC

Type of Product : Electronic Edge Finder

Accuracy : 5µm

Tip Dimension (mm) : 10 mm

Shank Diameter : 20 mm

Insize Block Level with In-Built Bluetooth, ±10 mm/m (±0.573°) Range and 0.01 mm/m (0.001°) Resolution, 4951-1

Ships within 6 days

Insize Block Level with In-Built Bluetooth, ±10 mm/m (±0.573°) Range and 0.01 mm/m (0.001°) Resolution, 4951-1

By Insize

₹47,456

Insize Block Level with In-Built Bluetooth, ±10 mm/m (±0.573°) Range and 0.01 mm/m (0.001°) Resolution, 4951-1 is engineered for precision dimensional inspection in tool rooms, manufacturing, and quality control environments. Designed to meet relevant industrial standards stated in the specification, this product supports accurate verification of components where tight tolerances are critical. The construction, material selection, and finishing ensure durability, repeatability, and consistent measurement performance during regular use. Its defined range, accuracy level, and configuration make it suitable for professional inspection workflows and controlled production processes.
Insize Block Level with In-Built Bluetooth, ±10 mm/m (±0.573°) Range and 0.01 mm/m (0.001°) Resolution, 4951-1 is well suited for applications requiring dependable measurement, calibration support, or dimensional reference in precision engineering sectors. The product is optimized for ease of handling, clear identification, and stable measurement results, reducing operator error and inspection time. It is commonly used in machining, automotive, aerospace, and general manufacturing environments where compliance, reliability, and measurement confidence are essential.

Insize Stainless Steel Blade T-Bevel with Tough Rubber Handle, 2281-360

Ships within 6 days

Insize Stainless Steel Blade T-Bevel with Tough Rubber Handle, 2281-360

By Insize

₹906 ~~₹988~~

You save ₹82!

8.27% OFF

Insize Stainless Steel Blade T-Bevel with Tough Rubber Handle, 2281-360 is a versatile measuring and layout tool used in woodworking, metalworking, construction, and various DIY projects. It is designed to measure, transfer, and replicate angles accurately. The T-bevel consists of a handle or stock and a blade or blade assembly that can be adjusted to match and hold specific angles. Here's a detailed explanation of a T-bevel:
Components and Features:
Handle or Stock: The handle or stock of a T-bevel is typically made of wood, plastic, or metal and serves as the user's grip. It contains a slot or receptacle that allows the blade to pivot and be secured at different angles.
Blade or Blade Assembly: The blade of a T-bevel is typically made of metal and is attached to the handle at one end. It can be adjusted to various angles and locked in place using a wing nut or locking mechanism.
Measurement Scale: Many T-bevels have a measurement scale marked along the blade, allowing users to read the exact angle they've set, typically in degrees.
Locking Mechanism: The locking mechanism secures the blade at the desired angle, ensuring that it remains in position during measurements and layout work.
Operation:
Angle Measurement: To measure an angle using a T-bevel, the user loosens the wing nut or locking mechanism to allow the blade to pivot freely. The blade is adjusted to match the angle to be measured, typically by aligning it with an existing angle or edge on a workpiece.
Angle Transfer: Once the blade matches the desired angle, the locking mechanism is tightened to secure the blade in place. The T-bevel can then be used to transfer this angle to another workpiece or to make angled cuts or markings.
Layout and Marking: T-bevels are often used to mark angles on wood, metal, or other materials. The blade can serve as a guide for drawing lines or making cuts at the measured angle.
Applications:
Woodworking: T-bevels are commonly used in woodworking to measure and replicate angles for joinery, mitered cuts, and creating precise angles in projects.
Metalworking: They find applications in metal fabrication for transferring and replicating angles when cutting, welding, or bending metal.
Construction: T-bevels are used in construction for layout work, such as marking angled cuts in framing or determining roof pitch.
DIY Projects: Homeowners and DIY enthusiasts use T-bevels for various projects that require accurate angle measurements and layout work.
Advantages:
Precision: T-bevels allow for precise angle measurements and angle transfers, contributing to the accuracy of woodworking and metalworking projects.
Versatility: They are versatile tools that can measure, transfer, and replicate a wide range of angles, reducing the need for multiple tools.
Durability: T-bevels are typically made from durable materials, ensuring long-lasting performance in demanding environments.
Ease of Use: They are straightforward to operate, making them suitable for both professionals and hobbyists.

Insize Portable Magnetic Powder Flaw Detector 0-230 mm, MPI-P220

Ships within 6 days

Insize Portable Magnetic Powder Flaw Detector 0-230 mm, MPI

By Insize

₹30,679 - ₹49,559

You save ₹664!

1.85% OFF

The Insize Portable Magnetic Powder Flaw Detector (MPI) is a specialized instrument used in non-destructive testing (NDT) to detect surface and near-surface flaws or defects in ferromagnetic materials. Here's a breakdown of its features and functionalities:
Portable Design: The MPI device is designed to be portable, allowing for convenient on-site testing of components and structures. Its compact size and lightweight construction make it easy to transport and handle in various industrial environments.
Magnetic Particle Testing Principle: The MPI operates on the principle of magnetic particle testing, which involves magnetizing the test piece and applying magnetic particles (usually in the form of a dry powder or a wet suspension) to the surface. When magnetic particles are attracted to and accumulate around a surface or near-surface flaw or defect, they create a visible indication that can be detected and evaluated.
Range: The MPI is capable of inspecting ferromagnetic materials with a thickness range of 0-230 mm (millimeters). This range covers a wide variety of applications, from thin-walled components to thick structures.
Flaw Detection: The device is highly sensitive to surface and near-surface flaws such as cracks, voids, inclusions, laps, seams, and other discontinuities in the material. By carefully examining the pattern and distribution of magnetic particles on the surface, inspectors can identify and assess the severity of flaws.

Type of Product : Portable Magnetic Powder Flaw Detector

Dimension : 235x50x195 mm

Weight : 2.3 Kg

Strength : >2KA/m

Frequency : 50/60 Hz

Spacing : 0-230 mm

Temperature : -10°C to 40°C

Power : 220 V

Insize Digital Flushness Gauge ±5 mm Range, 0.005 mm Accuracy and 0.001 mm Resolution, 2936-51

Ships within 6 days

Insize Digital Flushness Gauge ±5 mm Range, 0.005 mm Accuracy and 0.001 mm Resolution, 2936-51

By Insize

₹71,201

Insize Digital Flushness Gauge ±5 mm Range, 0.005 mm Accuracy and 0.001 mm Resolution, 2936-51 is a professionally engineered measuring and monitoring instrument designed to meet demanding industrial, laboratory, and inspection requirements. Built for accuracy and repeatability, Insize Digital Flushness Gauge ±5 mm Range, 0.005 mm Accuracy and 0.001 mm Resolution, 2936-51 supports reliable measurement performance for routine testing, calibration, and quality assurance tasks. The construction emphasizes durability and operational stability, making it suitable for continuous use in production floors, maintenance environments, and technical service applications. Its compact and user-friendly design allows easy integration into existing workflows while ensuring dependable readings across the specified operating range. This instrument is well suited for engineers, technicians, and quality professionals who require consistent and precise results.
Insize Digital Flushness Gauge ±5 mm Range, 0.005 mm Accuracy and 0.001 mm Resolution, 2936-51 offers dependable performance backed by controlled accuracy characteristics and stable signal processing for trustworthy results. Designed to reduce measurement error and improve confidence, Insize Digital Flushness Gauge ±5 mm Range, 0.005 mm Accuracy and 0.001 mm Resolution, 2936-51 supports efficient diagnostics, verification, and compliance-related measurements. The clear display and intuitive operation minimize operator fatigue and interpretation errors during extended use. Its robust build quality ensures long service life even under demanding working conditions. Ideal for inspection, testing, and preventive maintenance programs, this product reflects Insize’s commitment to measurement reliability, functional efficiency, and professional-grade instrumentation for industrial and technical applications.

Insize Taper Gage Set Range 1-29 mm 4837-1

Ships within 6 days

Insize Taper Gage Set Range 1-29 mm 4837-1

By Insize

₹2,241

Include 4pcs (1-8mm, 8-15mm, 15-22mm, 22-29mm),
Measure opening,
Slot width, hole diameter, etc.
Diameter correction table on the back Made of stainless steel
When measuring diameter of holes, correction on reading is needed due to the thickness of tape gage.
For example, when reading A is 14.96mm. diameter 0D is 15mm.

Insize 4-40 mm Applicable Diameter Range Concentricity Gage with 2 µm Accuracy, 4726-1

Ships within 6 days

Insize Concentricity Gage with Fixed Stand (4726 Series)

By Insize

₹2,47,799 - ₹2,59,599

You save ₹21,787!

8.22% OFF

Insize Concentricity Gage with Fixed Stand (4726 Series) concentricity gage is a precision measurement tool used to determine the concentricity of cylindrical objects, ensuring that their geometric centers are aligned. This instrument is essential in industries where high precision is critical, such as automotive, aerospace, and machining. Concentricity gages typically consist of a base, a rotating spindle, and a series of dial indicators or electronic sensors. To use the gage, the object under inspection, such as a shaft or a round part, is mounted on the spindle, which is then rotated. The dial indicators measure any deviations in the object's surface relative to its central axis. These deviations indicate how much the object's outer surface is offset from being perfectly concentric with its center. The data collected from a concentricity gage can help in identifying manufacturing defects, misalignments, or wear and tear in components, enabling corrections to be made before further processing or assembly. This ensures the high quality and performance of the final product, reducing the risk of mechanical failures and improving overall efficiency in production processes. Concentricity gages are valued for their accuracy, reliability, and ease of use in quality control applications.

Type of Product : Concentricity Gage

Insize 5.000mm White Ceramic Standard Ball Gauge 4190-5D000

Ships within 6 days

Insize White Ceramic Standard Ball Gauge 4190 Series (Diameter: 1-5.59 mm)

By Insize

₹199 - ₹294

Insize White Ceramic Standard Ball Gauge 4190 Series (Diameter: 1-5.59 mm) ceramic ball is a spherical object made from ceramic materials, renowned for their high strength, hardness, and resistance to extreme temperatures and chemical corrosion. These balls are commonly used in a variety of industrial applications due to their superior mechanical properties. Typically composed of materials such as silicon nitride (Si₃N₄), zirconia (ZrO₂), or alumina (Al₂O₃), ceramic balls are integral in applications where conventional steel balls would fail due to harsh conditions. In bearings, ceramic balls are prized for their low density, which reduces centrifugal force and overall wear during high-speed rotations. Their exceptional hardness and smooth surface result in reduced friction, leading to enhanced performance and longevity of the bearings. Additionally, ceramic balls are non-magnetic and electrically insulating, making them suitable for applications in electronic and magnetic-sensitive environments. Ceramic balls are also employed in grinding and milling processes, where their hardness and durability allow for the efficient processing of hard materials without contamination. Their ability to withstand high temperatures makes them ideal for use in aerospace, automotive, and chemical industries. Overall, ceramic balls play a crucial role in enhancing the efficiency, reliability, and durability of various mechanical systems.

Type of Product : Ceramic Ball

Material : Ceramic

Roundness/Cylindricity : 0.5μm

Insize Shank Dia 10 mm Edge Finder 6562-4

Ships within 6 days

Insize Shank Dia 10 mm Edge Finder (6562 Series)

By Insize

₹2,831 - ₹3,185

Insize Shank Dia 10 mm Edge Finder (6562 Series) Edge Finder is a precision tool designed for machinists, engineers, and hobbyists who work with milling machines, lathes, or CNC equipment. This indispensable device is used to accurately locate the edges of a workpiece, ensuring precise alignment and measurements for various machining operations. Constructed from high-quality, durable materials, the Edge Finder typically features a cylindrical shank that fits into the machine’s collet or chuck, and a probe or contact tip at the opposite end. When the machine spindle rotates, the user moves the workpiece until the tip touches the edge. At the point of contact, the probe will visibly shift, or "kick," indicating the exact edge location. Edge Finders come in different types, including mechanical, optical, and electronic variants. Mechanical edge finders are the most common, with a spring-loaded tip that visibly deflects upon contact. Optical edge finders use light and lenses to enhance visibility, while electronic edge finders provide a digital readout for even greater accuracy. Using an edge finder enhances the precision of machining tasks, reduces errors, and saves time by eliminating guesswork. This tool is essential for any machining setup that requires meticulous positioning and alignment of materials, leading to higher quality and consistency in finished products.

Type of Product : Edge Finder

Insize Level Bubble, 90 mm Aluminium Alloy Base Diameter, Range 0-4° and 1° Graduation, 4955-4

Ships within 6 days

Insize Level Bubble, 90 mm Aluminium Alloy Base Diameter, Range 0-4° and 1° Graduation, 4955-4

By Insize

₹2,403

Insize Level Bubble, 90 mm Aluminium Alloy Base Diameter, Range 0-4° and 1° Graduation, 4955-4 is engineered for precision dimensional inspection in tool rooms, manufacturing, and quality control environments. Designed to meet relevant industrial standards stated in the specification, this product supports accurate verification of components where tight tolerances are critical. The construction, material selection, and finishing ensure durability, repeatability, and consistent measurement performance during regular use. Its defined range, accuracy level, and configuration make it suitable for professional inspection workflows and controlled production processes.
Insize Level Bubble, 90 mm Aluminium Alloy Base Diameter, Range 0-4° and 1° Graduation, 4955-4 is well suited for applications requiring dependable measurement, calibration support, or dimensional reference in precision engineering sectors. The product is optimized for ease of handling, clear identification, and stable measurement results, reducing operator error and inspection time. It is commonly used in machining, automotive, aerospace, and general manufacturing environments where compliance, reliability, and measurement confidence are essential.

Insize 20 Pcs Parallel Set Alloy Tool Steel Body, HRC55-60 Hardness and 100 mm Length, 6511-20

Ships within 6 days

Insize 20 Pcs Parallel Set Alloy Tool Steel Body, HRC55-60 Hardness and 100 mm Length, 6511-20

By Insize

₹9,557

Insize 20 Pcs Parallel Set Alloy Tool Steel Body, HRC55-60 Hardness and 100 mm Length, 6511-20 is engineered for precision dimensional inspection in tool rooms, manufacturing, and quality control environments. Designed to meet relevant industrial standards stated in the specification, this product supports accurate verification of components where tight tolerances are critical. The construction, material selection, and finishing ensure durability, repeatability, and consistent measurement performance during regular use. Its defined range, accuracy level, and configuration make it suitable for professional inspection workflows and controlled production processes.
Insize 20 Pcs Parallel Set Alloy Tool Steel Body, HRC55-60 Hardness and 100 mm Length, 6511-20 is well suited for applications requiring dependable measurement, calibration support, or dimensional reference in precision engineering sectors. The product is optimized for ease of handling, clear identification, and stable measurement results, reducing operator error and inspection time. It is commonly used in machining, automotive, aerospace, and general manufacturing environments where compliance, reliability, and measurement confidence are essential.

Insize Imaging Level 0-10 mm/m Range, 0.01 mm/m Graduation and 165 mm Length, 4956-10

Ships within 6 days

Insize Imaging Level 0-10 mm/m Range, 0.01 mm/m Graduation and 165 mm Length, 4956-10

By Insize

₹58,989

Insize Imaging Level 0-10 mm/m Range, 0.01 mm/m Graduation and 165 mm Length, 4956-10 is engineered for precision dimensional inspection in tool rooms, manufacturing, and quality control environments. Designed to meet relevant industrial standards stated in the specification, this product supports accurate verification of components where tight tolerances are critical. The construction, material selection, and finishing ensure durability, repeatability, and consistent measurement performance during regular use. Its defined range, accuracy level, and configuration make it suitable for professional inspection workflows and controlled production processes.
Insize Imaging Level 0-10 mm/m Range, 0.01 mm/m Graduation and 165 mm Length, 4956-10 is well suited for applications requiring dependable measurement, calibration support, or dimensional reference in precision engineering sectors. The product is optimized for ease of handling, clear identification, and stable measurement results, reducing operator error and inspection time. It is commonly used in machining, automotive, aerospace, and general manufacturing environments where compliance, reliability, and measurement confidence are essential.

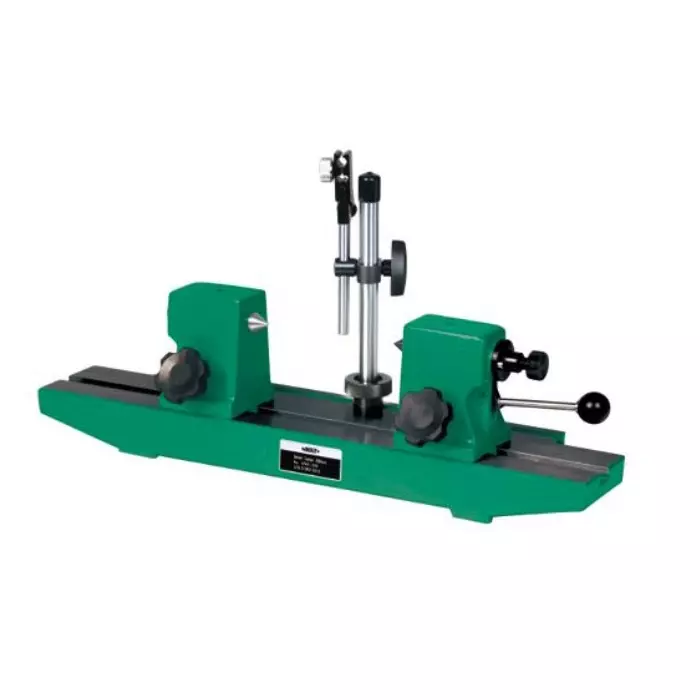

Insize Bench Center Basic Type 75 mm Center Height and 2 µm Runout Accuracy, 4742-300

Ships within 6 days

Insize Bench Center Basic Type 75 mm Center Height and 2 µm Runout Accuracy, 4742-300

By Insize

₹89,367

Insize Bench Center Basic Type 75 mm Center Height and 2 µm Runout Accuracy, 4742-300 is engineered for precision dimensional inspection in tool rooms, manufacturing, and quality control environments. Designed to meet relevant industrial standards stated in the specification, this product supports accurate verification of components where tight tolerances are critical. The construction, material selection, and finishing ensure durability, repeatability, and consistent measurement performance during regular use. Its defined range, accuracy level, and configuration make it suitable for professional inspection workflows and controlled production processes.
Insize Bench Center Basic Type 75 mm Center Height and 2 µm Runout Accuracy, 4742-300 is well suited for applications requiring dependable measurement, calibration support, or dimensional reference in precision engineering sectors. The product is optimized for ease of handling, clear identification, and stable measurement results, reducing operator error and inspection time. It is commonly used in machining, automotive, aerospace, and general manufacturing environments where compliance, reliability, and measurement confidence are essential.

Insize 4789-3 1-25 mm Concentricity Gauge

Ships within 6 days

Insize Concentricity Gage With Fixed Stand (4789 Series)

By Insize

₹67,259 - ₹76,699

The Insize Concentricity Gage With Fixed Stand (4789 Series) is a precision measurement tool designed for assessing the concentricity of cylindrical objects. This gage is particularly useful in industries where precise alignment and uniformity of round parts are critical, such as automotive, aerospace, and machining sectors. The 4789 Series features a robust fixed stand, ensuring stability and repeatability during measurements. The stand is constructed from durable materials to withstand rigorous use while maintaining accuracy. The gage is equipped with a high-precision dial indicator, providing clear and accurate readings. This indicator is capable of detecting minute deviations in concentricity, making it ideal for quality control and inspection processes. The gage's user-friendly design allows for easy setup and operation. Parts to be measured are placed between two centers or on a V-block, and the dial indicator records the variance as the part is rotated. This setup is essential for detecting any eccentricity in the part’s structure. Overall, the Insize Concentricity Gage With Fixed Stand (4789 Series) is a reliable, accurate, and essential tool for ensuring the concentricity of cylindrical components, thereby enhancing the quality and performance of manufactured parts.

Accuracy : 2 µm

Stand Type : Fixed Stand

Insize 50 mm Digital Zero Setter 6557-50

Ships within 6 days

Insize 50 mm Digital Zero Setter 6557-50

By Insize

₹7,433

Insize Stainless Steel Fillet Welding Gage with Calculating Card, 4846-1

Ships within 6 days

Insize Stainless Steel Fillet Welding Gage with Calculating Card, 4846-1

By Insize

₹3,215 ~~₹3,503~~

You save ₹288!

8.23% OFF

Insize Stainless Steel Fillet Welding Gage with Calculating Card, 4846-1 is a specialized measuring tool used in welding and metal fabrication to assess the size and quality of fillet welds. Fillet welds are commonly used in various applications to join two pieces of metal at right angles or in a lap joint configuration. Properly sized and executed fillet welds are crucial for ensuring the strength and integrity of welded joints. The fillet welding gauge helps welders and inspectors verify that welds meet specified standards and tolerances. Here's a detailed explanation:
Components and Features:
Arms or Blades: The main components of a fillet welding gauge are the arms or blades that extend perpendicularly from the body of the gauge. These arms are precisely machined to match various fillet weld sizes and configurations.
Scales and Notches: The arms or blades feature scales and notches that correspond to specific weld sizes and angles. These markings help determine if the fillet weld's dimensions conform to the required specifications.
Depth Gauge: Some fillet welding gauges include a depth gauge feature, which allows users to measure the depth or leg length of a fillet weld accurately.
Operation:
Selection: The user selects the appropriate fillet welding gauge with arms that match the fillet weld size and configuration being inspected.
Placement: The arms of the gauge are carefully placed along the fillet weld, ensuring that they make contact with the weld's surface.
Comparison: By comparing the fillet weld's dimensions to the scales and notches on the gauge, the user can determine whether the weld meets the specified size and angle requirements.
Assessment: The gauge helps assess the weld's leg length, throat thickness, and angle, ensuring it conforms to the design and quality standards.
Recording: The measurements and assessment results can be recorded for documentation and quality control purposes.
Applications:
Welding Inspection: Fillet welding gauges are used by welding inspectors and quality control personnel to verify that fillet welds meet code requirements, industry standards, and project specifications.
Welding Training: They are valuable tools in welding training programs, helping trainees understand and practice proper fillet weld dimensions and angles.
Field Inspections: Welders and inspectors use fillet welding gauges in the field to assess weld quality and make on-site adjustments as needed.
Advantages:
Accuracy: Fillet welding gauges provide accurate measurements of fillet weld dimensions, ensuring compliance with welding standards.
Efficiency: They enable quick and efficient inspections, reducing the time required to assess multiple welds.
Consistency: Fillet welding gauges ensure consistency in weld quality and dimensions, contributing to the overall reliability and safety of welded joints.
In summary, a fillet welding gauge is a specialized measuring tool used to assess the size and quality of fillet welds in welding and metal fabrication applications. Its ability to accurately verify weld dimensions and angles is crucial for maintaining weld integrity and ensuring that welded joints meet industry standards and specifications.

Insize Non Magnetic Stainless Steel Edge Finder with 117 mm Spindle Length, 6558-64

Ships within 6 days

Insize Non Magnetic Stainless Steel Edge Finder For EDM 6558 Series (Ball Dia: 6-10 mm)

By Insize

₹1,297 - ₹2,005

You save ₹240!

13.08% OFF

Insize Non Magnetic Stainless Steel Edge Finder For EDM 6558 Series (Ball Dia: 6-10 mm) Edge Finder is a precision tool designed for machinists, engineers, and hobbyists who work with milling machines, lathes, or CNC equipment. This indispensable device is used to accurately locate the edges of a workpiece, ensuring precise alignment and measurements for various machining operations. Constructed from high-quality, durable materials, the Edge Finder typically features a cylindrical shank that fits into the machine’s collet or chuck, and a probe or contact tip at the opposite end. When the machine spindle rotates, the user moves the workpiece until the tip touches the edge. At the point of contact, the probe will visibly shift, or "kick," indicating the exact edge location. Edge Finders come in different types, including mechanical, optical, and electronic variants. Mechanical edge finders are the most common, with a spring-loaded tip that visibly deflects upon contact. Optical edge finders use light and lenses to enhance visibility, while electronic edge finders provide a digital readout for even greater accuracy. Using an edge finder enhances the precision of machining tasks, reduces errors, and saves time by eliminating guesswork. This tool is essential for any machining setup that requires meticulous positioning and alignment of materials, leading to higher quality and consistency in finished products.

Type of Product : Edge Finder

Insize Chamfer Gauge Stainless Steel Body 10 Leaves, 0.5 to 5.0 mm Range and ±0.03 mm Accuracy, 4814-1

Ships within 6 days

Insize Chamfer Gauge Stainless Steel Body 10 Leaves, 0.5 to 5.0 mm Range and ±0.03 mm Accuracy, 4814-1

By Insize

₹13,430

Insize Chamfer Gauge Stainless Steel Body 10 Leaves, 0.5 to 5.0 mm Range and ±0.03 mm Accuracy, 4814-1 is engineered for precision dimensional inspection in tool rooms, manufacturing, and quality control environments. Designed to meet relevant industrial standards stated in the specification, this product supports accurate verification of components where tight tolerances are critical. The construction, material selection, and finishing ensure durability, repeatability, and consistent measurement performance during regular use. Its defined range, accuracy level, and configuration make it suitable for professional inspection workflows and controlled production processes.
Insize Chamfer Gauge Stainless Steel Body 10 Leaves, 0.5 to 5.0 mm Range and ±0.03 mm Accuracy, 4814-1 is well suited for applications requiring dependable measurement, calibration support, or dimensional reference in precision engineering sectors. The product is optimized for ease of handling, clear identification, and stable measurement results, reducing operator error and inspection time. It is commonly used in machining, automotive, aerospace, and general manufacturing environments where compliance, reliability, and measurement confidence are essential.

Ships within 6 days

Insize Caliper/Micrometer Lapping Blocks (6307 Series)

By Insize

₹11,327 - ₹12,979

The Insize Caliper/Micrometer Lapping Blocks 6307 are precision tools designed for lapping the measuring faces of calipers and micrometers. These blocks are made from high-quality materials to ensure accuracy and durability in the lapping process. They are typically used with lapping paste to remove any irregularities or damage from the measuring faces, restoring them to their original smoothness. The 6307 blocks feature a flat surface with a fine finish, providing a stable and reliable lapping surface for the measuring instruments. They are designed to be easy to use, allowing for quick and efficient lapping of calipers and micrometers. The blocks come in a set of two, with one block used for rough lapping and the other for fine lapping, ensuring a precise and consistent result. Overall, the Insize Caliper/Micrometer Lapping Blocks 6307 are essential tools for maintaining the accuracy and reliability of calipers and micrometers, making them ideal for use in precision machining and metrology applications.

Type of Product : Lapping Block

Dimension : 360x230x210 mm

Suitable For : 0-100 mm Outside Micrometers

Weight : 15 Kg

Included Components : 4 Lapping Blocks

Frequency : 50/60 Hz

Supplied With : Diamond Paste

Power Supply : 220 V

Insize 30-40 mm Range Digital Taper Slot Gage with Built In Wireless, 1160-40WL

Ships within 6 days

Insize Digital Taper Slot Gage with Built In Wireless (1160-WL Series)

By Insize

₹29,499 - ₹34,219

You save ₹515!

1.48% OFF

Insize Digital Taper Slot Gage with Built In Wireless (1160-WL Series) Digital Taper Slot Gage is a precision measuring instrument designed for accurately assessing the width of slots or gaps in various materials and components. Unlike traditional slot gages, which rely on manual reading and interpretation, the digital version offers enhanced accuracy and ease of use through its electronic readout. The device features a tapered blade that can be inserted into the slot or gap. As the blade is inserted, the digital readout provides a precise measurement of the slot width, eliminating the need for manual calculation or estimation. This feature significantly reduces the risk of human error, ensuring more reliable and consistent measurements. Digital Taper Slot Gages are commonly used in manufacturing, engineering, and quality control processes where precise slot measurements are critical. They are particularly useful in industries such as automotive, aerospace, and metalworking, where maintaining tight tolerances is essential for product performance and safety. The digital readout typically offers measurements in both metric and imperial units, with some models featuring data output capabilities for recording and analysis. The gage is often constructed from durable materials to withstand industrial environments and frequent use, ensuring long-lasting performance and accuracy. Overall, a Digital Taper Slot Gage is an invaluable tool for professionals requiring precise and reliable slot measurements in their work.

Type of Product : Digital Taper Slot Gage

Material : Stainless Steel

Insize 60 Degree Metric Thread Center Gage 4810-601

Ships within 6 days

Insize 60 Degree Center Gage (4810 Series)

By Insize

₹294 - ₹412

You save ₹27!

8.4% OFF

Insize 60 Degree Center Gage (4810 Series) center gage, also known as a fishtail gage or thread center gage, is a precision tool commonly used in machining and metalworking. It serves multiple purposes, primarily in the cutting and inspecting of screw threads. The tool is typically made of hardened steel for durability and accuracy. One of the main functions of a center gage is to set and check the angle of the lathe tool when cutting threads on a lathe. The gage has a 60-degree angle, which corresponds to the thread angle for standard Unified and Metric threads. By aligning the cutting tool with the gage, machinists can ensure that the tool is correctly positioned for accurate thread cutting. Additionally, the center gage is used to check the pitch of screw threads. It has a series of notches or teeth that correspond to various thread pitches. By comparing these notches to the threads being cut, machinists can verify the pitch and consistency of the threads. The center gage also features engraved scales for measuring threads per inch (TPI) and thread pitch. This makes it a versatile tool in both threading operations and inspections, ensuring precision and consistency in the manufacturing process. Its compact size and multifunctionality make it an essential tool in any machinist's toolbox.

Type of Product : Center Gage

Ships within 6 days

Insize 2397-502A Zero Setter 50 mm

By Insize

₹15,368 ~~₹16,745~~

You save ₹1,377!

8.23% OFF

Magnetic Base.
Test force 9N.

Insize Caliper Inspection Gauge Block and Ring Gauge Set Made of Alloy Steel for 0-150 mm Calipers, 4176-301

Ships within 6 days

Insize Caliper Inspection Gauge Block and Ring Gauge Set Made of Alloy Steel for 0-150 mm Calipers, 4176-301

By Insize

Pack of 1 kit

₹15,719

Insize Caliper Inspection Gauge Block and Ring Gauge Set Made of Alloy Steel for 0-150 mm Calipers, 4176-301 is a precision inspection tool designed for accurate verification of internal fine metric threads used in high-accuracy machining and manufacturing environments. Manufactured in compliance with ISO 1502 standards, this Go and No Go plug gauge ensures precise checking of thread diameter, pitch accuracy, and tolerance conformity. The 6H tolerance class represents a standard medium-fit internal thread, commonly specified for engineered components requiring controlled assembly and reliable interchangeability. The Go end checks the maximum material condition, while the No Go end confirms the thread does not exceed the permitted tolerance, supporting consistent quality assurance.
Insize Caliper Inspection Gauge Block and Ring Gauge Set Made of Alloy Steel for 0-150 mm Calipers, 4176-301 is produced from hardened, wear-resistant steel to maintain dimensional stability and long-term accuracy even under repeated inspection cycles. Clear Go and No Go markings reduce operator error and improve inspection efficiency on shop floors and in metrology labs. This gauge is widely used in automotive, aerospace, tooling, and general engineering industries where fine-pitch threads are critical for performance and safety. Its robust construction, precision grinding, and adherence to international standards make it a dependable solution for routine inspection, final quality control, and process validation.

Insize Carbide Measuring Face Precision Ball Point 1 mm Dia 12 mm Length, 6282-3101

Ships within 6 days

Insize Carbide Measuring Face Precision Ball Point 12 mm Length

By Insize

₹624 - ₹872

You save ₹86!

12.15% OFF

The Insize Precision Ball Point is a finely crafted tool used in coordinate measurement systems for precise contact with objects. Its smooth, spherical tip ensures accurate readings and minimizes wear during inspections. This ball point is ideal for measuring small features, ensuring high-quality and consistent results in quality control processes, and is commonly used in industries that require extreme precision such as aerospace, automotive, and manufacturing.

Type of Product : Precision Ball Point

Accuracy : ±2 µm

Length : 12 mm

Country of Origin : India

Supplied With : Manufacturer Inspection Certificate

Name of Manufacturer/Packer/Importer : INSIZE CO., LTD.

Thread Size : M2.5x0.45 mm

Measuring face : Carbide Measuring Face

Insize 23.812mm (15/16") White Ceramic Standard Ball Gauge 4190-23D812

Ships within 6 days

Insize White Ceramic Standard Ball Gauge 4190 Series (Diameter: 12.7-40 mm)

By Insize

₹577 - ₹12,979

Insize White Ceramic Standard Ball Gauge 4190 Series (Diameter: 12.7-40 mm) ceramic ball is a spherical object made from ceramic materials, renowned for their high strength, hardness, and resistance to extreme temperatures and chemical corrosion. These balls are commonly used in a variety of industrial applications due to their superior mechanical properties. Typically composed of materials such as silicon nitride (Si₃N₄), zirconia (ZrO₂), or alumina (Al₂O₃), ceramic balls are integral in applications where conventional steel balls would fail due to harsh conditions. In bearings, ceramic balls are prized for their low density, which reduces centrifugal force and overall wear during high-speed rotations. Their exceptional hardness and smooth surface result in reduced friction, leading to enhanced performance and longevity of the bearings. Additionally, ceramic balls are non-magnetic and electrically insulating, making them suitable for applications in electronic and magnetic-sensitive environments. Ceramic balls are also employed in grinding and milling processes, where their hardness and durability allow for the efficient processing of hard materials without contamination. Their ability to withstand high temperatures makes them ideal for use in aerospace, automotive, and chemical industries. Overall, ceramic balls play a crucial role in enhancing the efficiency, reliability, and durability of various mechanical systems.

Type of Product : Ceramic Ball

Material : Ceramic

Insize 20-40mm 0.01mm Digital Internal Chamfer Gage 2942-403

Ships within 6 days

Insize Digital Internal Chamfer Gage 2942

By Insize

₹92,039 - ₹2,12,399

You save ₹28,458!

12.16% OFF

The Insize Digital Internal Chamfer Gage 2942 is a precision instrument designed for measuring internal chamfers with high accuracy and efficiency. It features a digital display that provides clear and easy-to-read measurements, eliminating the need for manual reading and reducing errors. This chamfer gage is equipped with a carbide measuring face that ensures durability and long-term accuracy. The gage has a measuring range of 0-12.7mm (0-0.5 inches) with a resolution of 0.01mm (0.0005 inches), making it suitable for a wide range of chamfer measurements. The gage's design includes a spring-loaded mechanism that ensures consistent pressure during measurement, resulting in accurate and repeatable readings. Additionally, the gage is lightweight and compact, making it easy to handle and maneuver in tight spaces. Overall, the Insize Digital Internal Chamfer Gage 2942 is a reliable and versatile tool for measuring internal chamfers with precision and ease, making it ideal for use in machining, manufacturing, and other industrial applications.

Type of Product : Chamfer Gage

Country of Origin : India

Ships within 6 days

Insize Chamfer Gage (1267 Series)

By Insize

₹6,725 - ₹8,141

You save ₹853!

9.58% OFF

Insize Chamfer Gage (1267 Series) chamfer gage is a precision measuring tool used to assess the size and angle of chamfers, which are the beveled edges or corners on machined parts. Typically utilized in manufacturing and quality control environments, a chamfer gage ensures that chamfers meet specified dimensions and tolerances. The tool consists of a conical probe that fits into the chamfered area and a dial or digital readout that indicates the measurement. Chamfer gages are available in various sizes and configurations to accommodate different chamfer dimensions and angles. The primary advantage of using a chamfer gage is its accuracy and ease of use. Operators simply insert the gage into the chamfer, and the tool provides an immediate reading of the chamfer's size. This helps in verifying that parts conform to design specifications, thereby preventing defects and ensuring consistency in production. Chamfer gages are essential in industries where precise dimensions are critical, such as aerospace, automotive, and machining. By providing quick and accurate measurements, chamfer gages contribute to efficient quality control processes. They help reduce inspection time, minimize material waste, and improve overall product quality, making them indispensable tools in precision manufacturing.

Type of Product : Chamfer Gage

Insize 14-110 mm Shaft Diameter Keyway Symmetry Gage with 0.01 mm Graduation, 4865-14

Ships within 6 days

Insize 14-110 mm Shaft Diameter Keyway Symmetry Gage with 0.01 mm Graduation, 4865-14

By Insize

₹70,415 ~~₹76,722~~

You save ₹6,307!

8.22% OFF

Insize 14-110 mm Shaft Diameter Keyway Symmetry Gage with 0.01 mm Graduation, 4865-14 is a specialized measuring tool used to assess the symmetry and alignment of keyways in machine parts, particularly shafts and hubs. It helps ensure that keyways, which are slots or grooves used to secure components like gears, pulleys, and couplings onto shafts, are correctly positioned and centered. Here's a detailed explanation of a Keyway Symmetry Gage:
Purpose: The primary purpose of a Keyway Symmetry Gage is to check the concentricity and alignment of keyways in machine components. It verifies that keyways are properly centered and symmetrically aligned to the axis of the shaft or hub.
Design: A Keyway Symmetry Gage typically consists of two components: a cylindrical body with a centering shaft and a sliding indicator. The cylindrical body is designed to fit into the keyway, while the centering shaft aligns with the axis of the keyway.
Measurement Process: To use the gage, the cylindrical body is inserted into the keyway, and the centering shaft aligns with the keyway's axis. The sliding indicator, which is graduated and typically equipped with a dial or digital readout, is then moved along the length of the cylindrical body. As it moves, it measures any deviations from symmetry.
Symmetry Assessment: By observing the readings on the indicator as it traverses the length of the keyway, the operator can assess whether the keyway is symmetrically aligned. Any deviations or irregularities in the readings indicate a lack of symmetry or alignment issues.
Acceptance Criteria: Keyway Symmetry Gages are often accompanied by specifications or tolerance limits. These criteria define the allowable deviation from perfect symmetry. If the measurements fall within the specified tolerance, the keyway is considered symmetrical and aligned properly.
Applications: These gages are commonly used in industries such as manufacturing, automotive, and mechanical engineering, where proper alignment and concentricity of keyways are crucial for ensuring the correct functioning and assembly of machine components.
Alignment Correction: If a keyway is found to be out of alignment or lacking symmetry, corrective measures may be necessary. This can involve re-machining the keyway or adjusting the position of the component being attached to the shaft or hub.
Benefits: The use of a Keyway Symmetry Gage helps prevent issues such as misalignment, vibration, and premature wear in machinery, resulting in improved reliability and performance.
In summary, a Keyway Symmetry Gage is a precision tool designed to assess the concentricity and alignment of keyways in machine components. By ensuring that keyways are properly centered and symmetrically aligned, these gages contribute to the reliability and efficiency of machinery in various industrial applications.

Insize Calibration Foil 780 μm for Coating Thickness Gage, 9503-FL11

Ships within 6 days

Insize Calibration Foil for Coating Thickness Gage, 9503

By Insize

₹660 - ₹1,887

You save ₹50!

7.11% OFF

The Insize Calibration Foil is an essential tool for calibrating and ensuring the accuracy of measuring instruments. Made from high-quality material, this foil is used to check the precision of gauges, calipers, and other measuring tools in industrial and laboratory settings. It helps in maintaining the integrity of measurements, providing users with confidence in the accuracy and performance of their equipment during quality control procedures.

Type of Product : Calibration Foil

Suitable For : Coating Thickness Gage

Country of Origin : India

Supplied With : Manufacturer Inspection Certificate

Name of Manufacturer/Packer/Importer : INSIZE CO., LTD.

Page 1 of 4 results

Product Name	Expected Price	Dispatch Time	Discount
Kristeel Shinwa Tyre Depth Gauge Digital (0-150mm) 3970	₹4,365	7 days	--
Insize Precision Vice with 0-100 mm Jaw Opening and 73 mm Jaw Width, 6526-100	₹10,973	24 hrs	15.68% OFF
Kristeel PPG Pipe Pit Gauge	₹3,727	7 days	--
Kristeel Circumference Gauge 1515I, Dia 3100-3500 mm	₹25,659	7 days	--
Insize 10.000mm White Ceramic Standard Ball Gauge 4190-10D000	₹441	60 days	--
Insize Taper Gage 4630-1 Range 0.5-10 mm	₹2,375	6 days	9.58% OFF
Ozar Outside Firm Joint Caliper 1000mm ACP2425	₹3,421	4 days	--
Insize Circumference Gage 7114-3460, Dia 700-1100 mm	₹1,591	24 hrs	8.28% OFF
Insize Circumference Gage 7114-2200, Dia 300-700 mm	₹1,155	24 hrs	9.29% OFF
Kristeel V Pulley Gauge Set of A,B,C & D (PG)	₹730	24 hrs	--

Insize Other Precision Gauge

Top Selling Insize Other Precision Gauge Products Price List for March 2026
