Showing 40 out of 51 products

Sort by

Simphoenix AC Drive E500 Series 3 Phase 380 V with 1.5 kW/2 HP Power and 4.5 A Output Current Rating, E500-4T0015(B)

Ships within 3 days

Simphoenix AC Drive E500 Series 3 Phase 380 V for Textile, Food, Transmission, Ceramics, Grinding Machine

By Simphoenix

₹12,979 - ₹24,779

You save ₹5,783!

30.82% OFF

The **Simphoenix AC Drive E500 Series 3 Phase 380 V for Textile, Food, Transmission, Ceramics, Grinding Machine** is a versatile variable frequency drive engineered for precise motor control in demanding industrial applications. Designed to operate on a 3-phase 380 V power supply, the **Simphoenix AC Drive E500 Series 3 Phase 380 V for Textile, Food, Transmission, Ceramics, Grinding Machine** delivers stable speed regulation, high torque output, and efficient energy utilization. Its advanced control algorithms support smooth acceleration and deceleration, making it suitable for processes requiring accuracy and consistency, such as textile machinery, food processing equipment, and ceramic production lines. The **Simphoenix AC Drive E500 Series 3 Phase 380 V for Textile, Food, Transmission, Ceramics, Grinding Machine** is built for reliability and adaptability across varied operating conditions. It supports transmission systems and grinding machines by providing precise torque control and reduced mechanical stress, extending equipment life. With user-friendly parameter settings, robust protection functions, and compact design, the **Simphoenix AC Drive E500 Series 3 Phase 380 V for Textile, Food, Transmission, Ceramics, Grinding Machine** simplifies installation and maintenance. This drive is an ideal solution for manufacturers seeking efficient motor control, improved process stability, and dependable long-term performance.

Type of Product : AC Drive

Voltage : 380 V

Country of Origin : India

Phase : 3 Phase

Series : E500

Application : Textile, Food, Transmission, Ceramics, Grinding Machine, Centrifugal Machine, Engraving Machine

Name of Manufacturer/Packer/Importer : Symphonix Solution

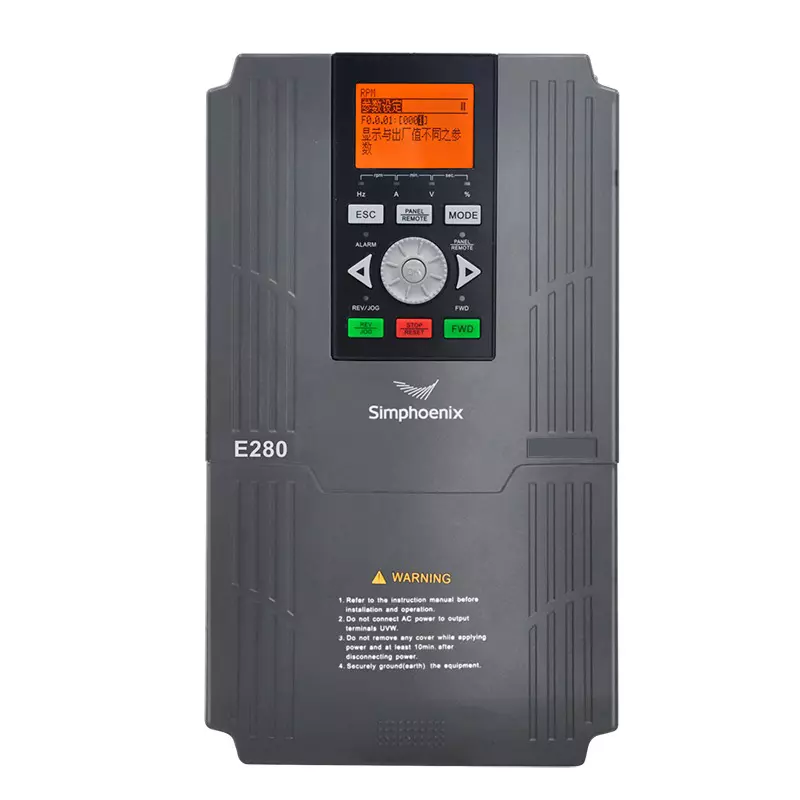

Simphoenix AC Drive E280 Series 3 Phase 380 V with 5.5 kW/7.5 HP Power and 13 A Output Current Rating, E280-4T0055

Ships within 3 days

Simphoenix AC Drive E280 Series 3 Phase 380 V with 0.0~50.0 Hz Start Frequency

By Simphoenix

₹20,059 - ₹2,71,399

You save ₹13,866!

34.82% OFF

The **Simphoenix AC Drive E280 Series 3 Phase 380 V with 0.0~50.0 Hz Start Frequency** is a compact and efficient variable frequency drive designed for precise control of three-phase induction motors in industrial applications. Operating on a 380 V power supply, the **Simphoenix AC Drive E280 Series 3 Phase 380 V with 0.0~50.0 Hz Start Frequency** offers smooth motor startup and stable speed regulation across a wide operating range. The adjustable start frequency of 0.0 to 50.0 Hz enables accurate low-speed control, making it suitable for applications requiring gentle starts, reduced mechanical stress, and consistent torque delivery. The **Simphoenix AC Drive E280 Series 3 Phase 380 V with 0.0~50.0 Hz Start Frequency** is engineered for reliability, energy efficiency, and ease of use. It incorporates essential motor protection functions such as overcurrent, overvoltage, and overload protection, helping extend motor life and minimize downtime. With its user-friendly interface, compact footprint, and flexible parameter settings, the **Simphoenix AC Drive E280 Series 3 Phase 380 V with 0.0~50.0 Hz Start Frequency** is ideal for conveyors, pumps, fans, and general-purpose machinery where dependable performance and precise speed control are required.

Type of Product : AC Drive

Input Voltage : 3 AC 380 V ± 20%, 3 AC 220 V ± 20%

Voltage : 380 V

Output Frequency : Low frequency running mode: 0.00 ~ 300.00 Hz; High frequency running mode: 0.00 ~ 400.00 Hz

Country of Origin : India

Phase : 3 Phase

Series : E280

Control Mode : Closed-loop Vector Control, Open-loop Vector Control, V/F Control

Input Frequency : 50/60 Hz ±20%

Torque : Start Torque: 0 Speed 200%, 0 Speed 180%, 0 Speed 100%

Output Voltage : 0 V ~ input rated voltage

Accuracy : Torque Control: ±1%, ±5%

Digital Input : E280-4T0040 and below: Standard built-in 5 DI (extension unavailable, optional) E280-4T0055 and above: Standard built-in 6 DI (extension available) Extension up to 9 DI, including 1 high-speed DI (optional)

Analog Input : E280-4T0040 and below: Built-in (Ai1: 0 ~ 10 V), (Ai2: 0 ~ 20 mA); Extension unavailable, optional E280-4T0055 and above: Built-in (Ai1: 0 ~ 10 V), (Ai2: 0 ~ 20 mA); Extension available Extendable: 1 AI (-10 V ~ +10 V dual polarity voltage input)

Digital Output : E280-4T0040 and below: Standard built-in 1 DO E280-4T0055 and above: Standard built-in 2 DO Extendable: 1 high-speed DO (0 ~ 100 kHz)

Application : Machine tool, Textile machinery, Cable machinery, Petrochemical processing, Construction, Transmission

Analog Output : E280-4T0040 and below: Built-in 1 AO (0 ~ 10 V); 0 ~ 20 mA output optional E280-4T0055 and above: Built-in 2 AO (0 ~ 10 V); 0 ~ 20 mA output optional

Name of Manufacturer/Packer/Importer : Symphonix Solution

Speed Accuracy : Stable: ±0.02%, ±0.02%, ±0.5%

Frequency Accuracy : Low frequency running mode: digital set—0.01Hz, analog set—highest frequency x 0.1% High frequency running mode: digital set—0.1Hz, analog set—highest frequency x 0.1%

Pulse Output : 0 ~ 100.0 kHz pulse NPN type OC output (optional)

Pulse Input : 0 ~ 100.0 kHz pulse input; NPN type OC output (optional)

Acceleration and Deceleration Time : 0.01~600.00 Sec./0.01~600.00 Min.

Braking : Initial frequency of DC braking / bank brake: 0.0~upper frequency, braking / bank brake injecting current 0.0~100.0%

Magnetic Flow Braking : By increasing motor magnetic flow (30~120% available), motor can achieve fast decreasing braking.

Carrier Wave Frequency : Three phase voltage vector combined mode: 1.5~10.0 kHz; Two phase voltage vector combined mode: 1.5~12.5 kHz; (high frequency mode can be 15 kHz)

Speed Adjustment : 1:1000, 1:200, 1:100

Start Frequency : 0.0~50.0 Hz

Overload : G type: 110%~long term; 150%~90s; 180%~2s; P type: 105%~long term;

Response Time : Torque: ≤5ms, ≤25ms

Frequency Resolution : Low frequency running mode: 0.01Hz; High frequency running mode: 0.1Hz

Contact Output : Standard: 1 set AC 250 V/1 A (NO/NC); Extendable: 1 ~ 6 sets (NO/NC)
