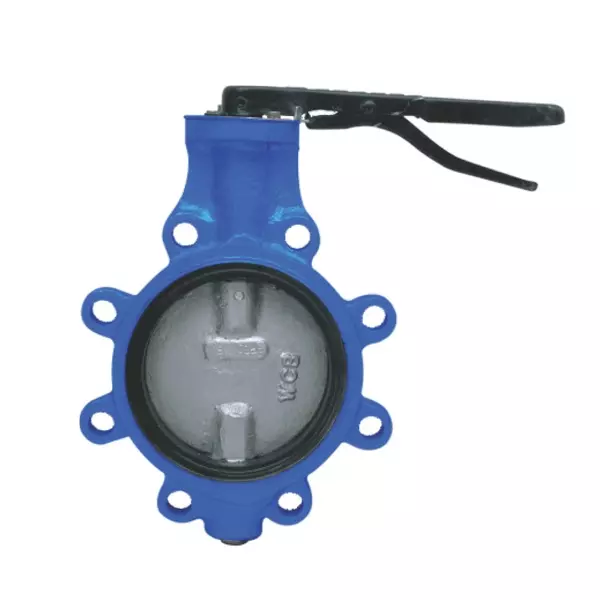

| Type of Product | Butterfly Valve |
| Size (Inch) | 8 inch |
| End Connection Type | Insertion Between Flanges as per ASME/ANSI B 16.1 CI-125 |
| Size (mm) | 200 mm |
Type of Product |
Butterfly Valve |
Size (Inch) |
8 inch |
End Connection Type |
Insertion Between Flanges as per ASME/ANSI B 16.1 CI-125 |
Size (mm) |
200 mm |
Model No |
CI 030 |
Standard |
BS:5155 |
Body Material |
Cast Iron |
Stem |
Stainless Steel 410 |
Pressure |
B.T.P. - 24 Bar Hyd, S.T.P. - 17.6 Bar Hyd |
Seat |
Moulded Liner |
Disc Material |
Stainless Steel (CF8) |
Rating |
PN-1.6 |
Type |
Wafer Type, Without Lugs Lever Operated |
Trim |
EPDM Liner |
Fastener |
Carbon Steel (BS 916) |
Lining Material |
EPDM |
Material Standard |
EN 1561 Gr. GJL 200 |
Country of Origin |
India |
Suitable For |
Water |
Color |
Blue |
Name of Manufacturer/Packer/Importer |
Industrial Engineering Syndicate |
