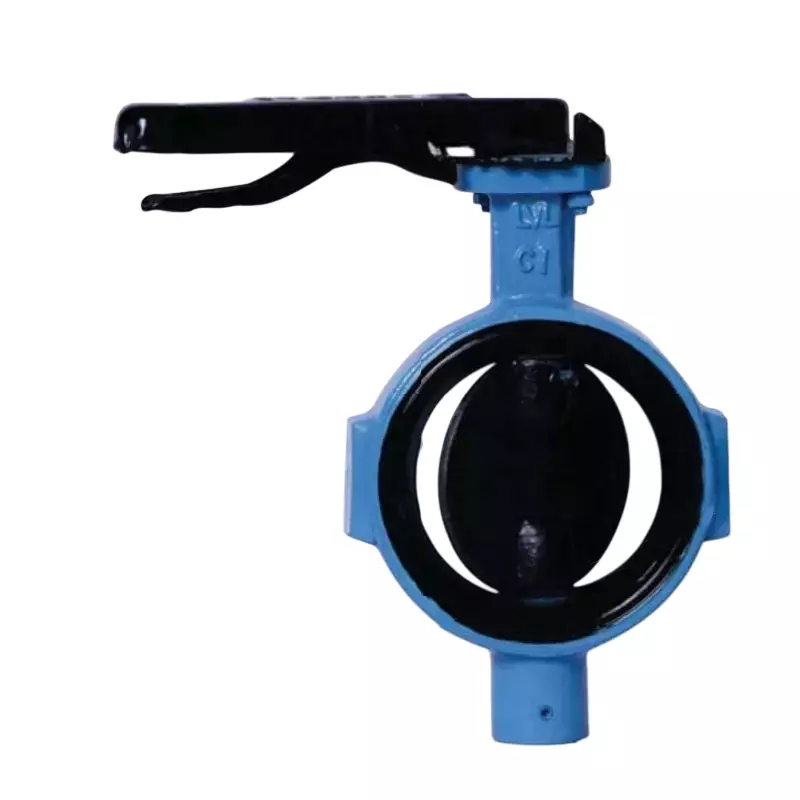

| Type of Product | Butterfly Valve |
| Size (Inch) | 8 inch |
| End Connection Type | Clamping Between Flanges as per ANSI B 16.1 CL-125 |
| Size (mm) | 200 mm |
Type of Product |
Butterfly Valve |
Size (Inch) |
8 inch |
End Connection Type |
Clamping Between Flanges as per ANSI B 16.1 CL-125 |
Size (mm) |
200 mm |
Model No |
CI 091 |
Standard |
IS:13095 |
Body Material |
Cast Iron |
Stem |
IS 6603 x 12 Cr. 12 |
Pressure |
B.T.P. - 2.4 Mpa Hyd, S.T.P. - 1.6 Mpa Hyd |
Seat |
Moulded EPDM Liner |
Disc Material |
SG Iron Epoxy Coated |
Rating |
PN-1.6 |
Type |
Wafer Type, Lever Operated (With ISI Mark Non IBR) |
Trim |
EPDM Liner |
Lining Material |
EPDM |
Material Standard |
IS:210 Gr. FG 260 |
Country of Origin |
India |
Suitable For |
Water |
Color |
Blue |
Name of Manufacturer/Packer/Importer |
Industrial Engineering Syndicate |
