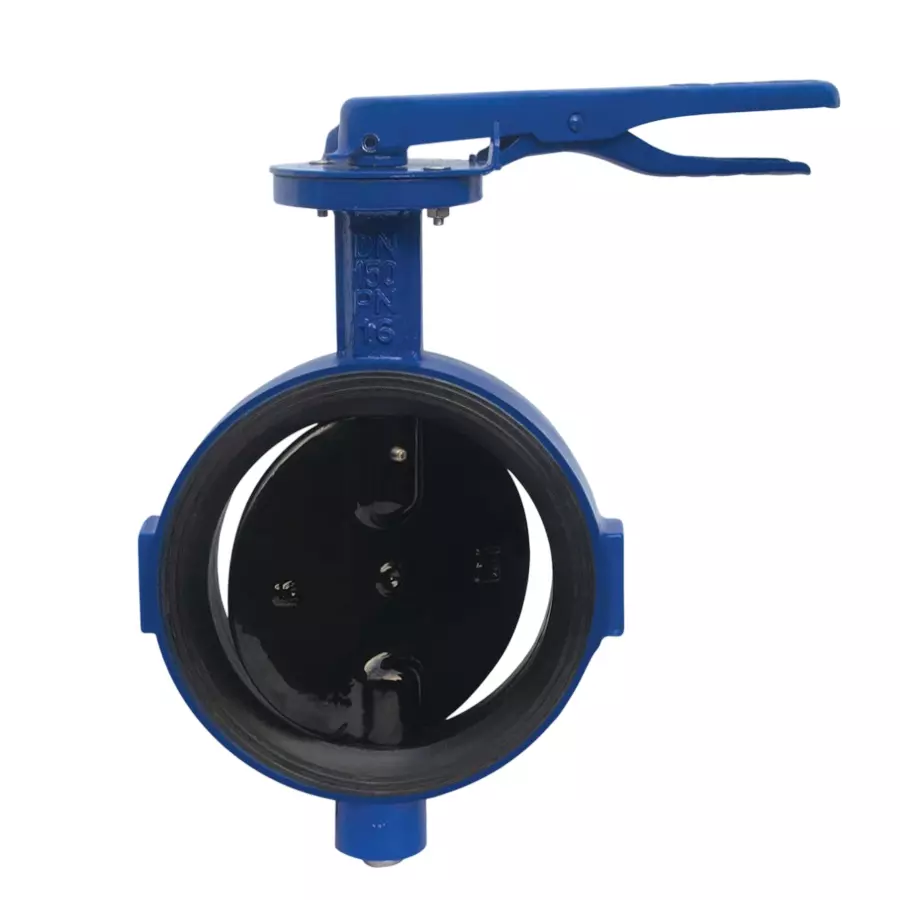

| Type of Product | Butterfly Valve |
| Size (Inch) | 12 inch |
| End Connection Type | Clamping Between Flanges as per ASME/ANSI B 16.1 CL-125 |
| Size (mm) | 300 mm |
Type of Product |
Butterfly Valve |
Size (Inch) |
12 inch |
End Connection Type |
Clamping Between Flanges as per ASME/ANSI B 16.1 CL-125 |
Size (mm) |
300 mm |
Model No |
CI 061 B |
Standard |
EN 593 (BS:5155) |
Body Material |
Cast Iron |
Stem |
Stainless Steel 410 |
Pressure |
B.T.P. - 24 Bar Hyd., S.T.P. - 17.6 Bar Hyd |
Seat |
Moulded EPDM Liner |
Disc Material |
Stainless Steel (CF8M) |
Rating |
PN-1.6 |
Type |
Wafer Type, Lever Operated NON IBR |
Trim |
EPDM Liner |
Lining Material |
EPDM |
Material Standard |
EN 1561 Gr. GJL 200 |
Country of Origin |
India |
Color |
Blue & Black |
Name of Manufacturer/Packer/Importer |
Industrial Engineering Syndicate |
