| Inner Diameter | 35 mm |
| Type | NAST |
| Country of Origin | Japan |

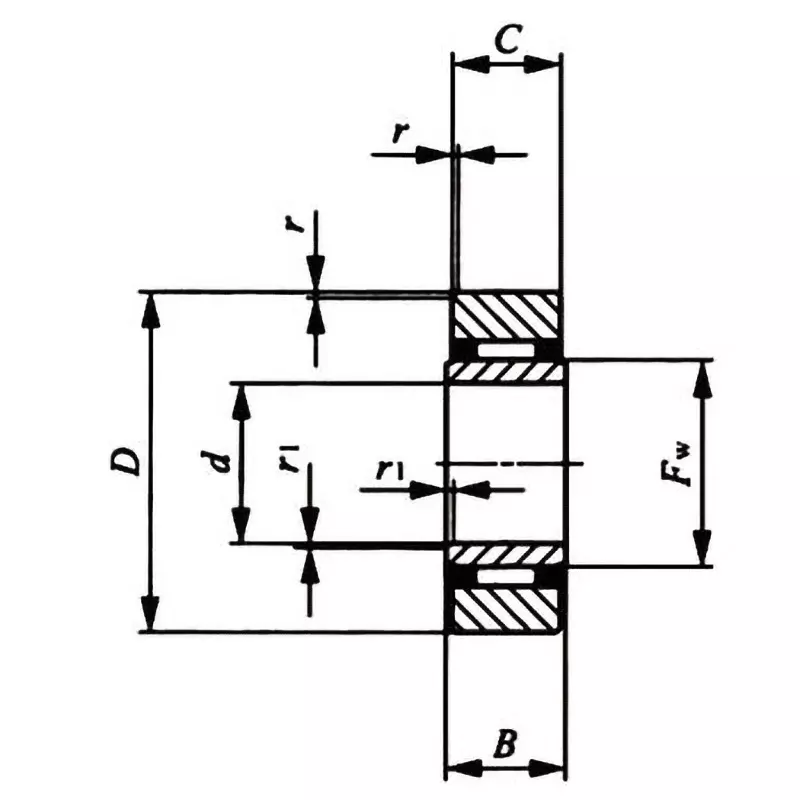

| Type of Product | Separate Type Roller Follower NAST (Open Type, With Inner Ring, Cylindrical Outer Ring) |
Inner Diameter |
35 mm |
Type |
NAST |
Country of Origin |
Japan |
Type of Product |
Separate Type Roller Follower NAST (Open Type, With Inner Ring, Cylindrical Outer Ring) |
Model No |
NAST35 |
Monotaro ID |
10300841 |
Mass (g) |
440 g |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Outer Diameter (Φmm) |
72 |
Dimensions C (mm) |
19.8 |
Specifications |
1N≒0.102kgf |
Basic Dynamic Load Rating (N) |
32400 |
Dimensions B (mm) |
20 |
Basic Static Load Rating (N) |
50600 |
Chamfer Dimension r (mm) |
1 |
Nominal No. |
35 |
Dimension Fw (mm) |
42 |
Inner ring |
With inner ring |
Dimensions D (mm) |
35 |
Chamfer Dimension r1 (mm) |
0.6 |
