Ships within 25 days
View
View
View
View
| Width (mm) | 35 |
| Type | CFE-VB |
| Country of Origin | Japan |
| Shape | Hexagon socket |
Width (mm) |
35 |
Type |
CFE-VB |
Country of Origin |
Japan |
Shape |
Hexagon socket |
Outer Diameter |
90 mm |
Type of Product |

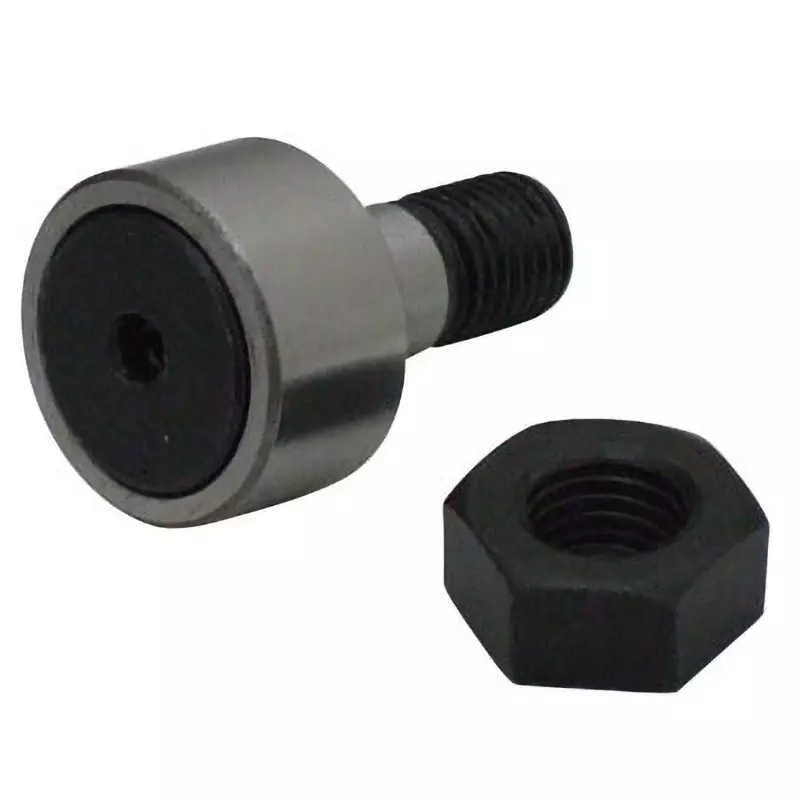

Cam Follower with Eccentric Collar CFE VB |
Model No |
CFE30-2VB |

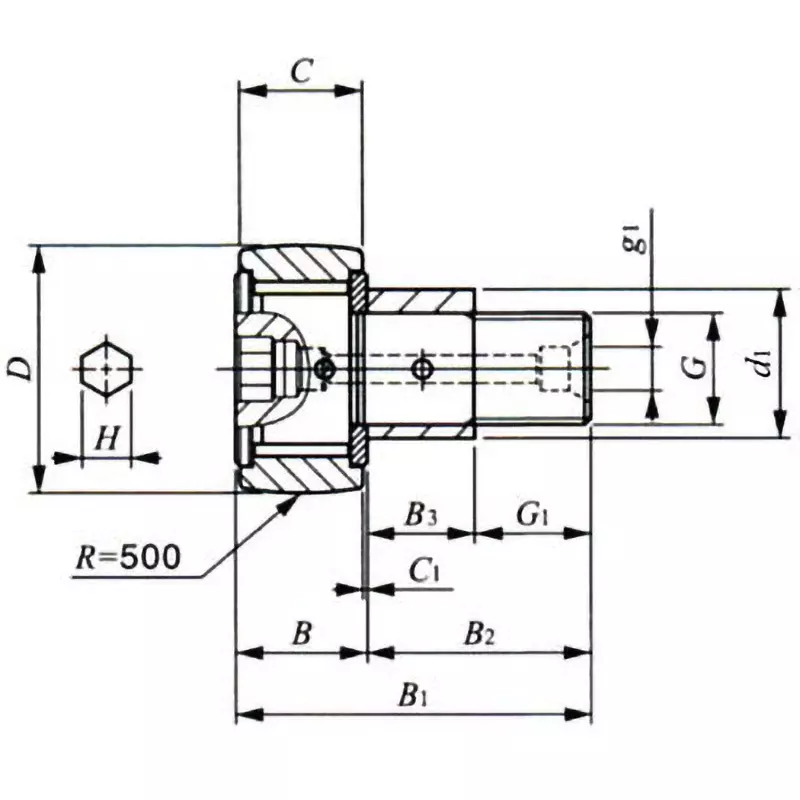

Dimension C1 (mm) |
1 |
Dimension B1 (mm) |
100 |
Dimension G1 (mm) |
30.5 |
Dimensions g (mm) |
M30x1.5 |
Mass (Kg) |
2.38 |
Dimension B3 (mm) |
32.5 |
Monotaro ID |
10327186 |
Dimensions H (mm) |
17 |
Maximum Tightening Torque (Nm) |
438 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimension B2 |
63 mm |
Dimensions C (mm) |
35 |
Specifications |
1N≒0.102kgf |
Dimensions B (mm) |
37 |
Basic Static Load Rating (N) |
144000 |

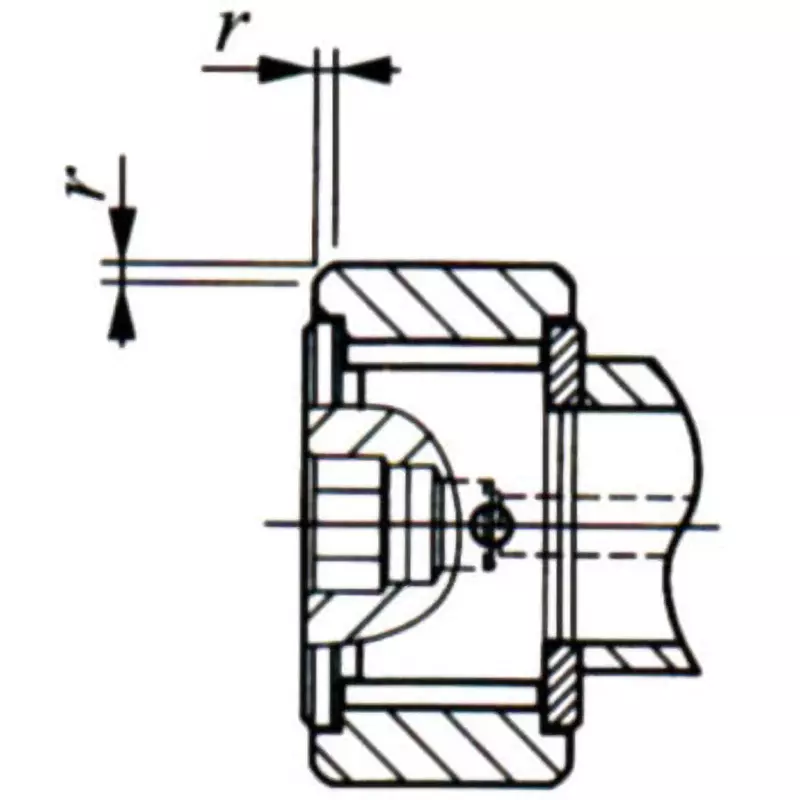

Chamfer Dimension r (mm) |
1 (minimum allowable dimension) |
Dimensions D (mm) |
90 |
Remark |
1. When the stud screw diameter G is 10mm or less, there is an oil hole (grease plug) in the head. Others have oil holes (grease nipples) on the stud head and oil holes on the outer diameter and end face. 2. Grease is enclosed. |
