Ships within 25 days
View
View
View
View
| Width (mm) | 19.05 |
| Type | CR |
| Country of Origin | Japan |
| Outer Diameter | 34.925 mm |
Width (mm) |
19.05 |
Type |
CR |
Country of Origin |
Japan |
Outer Diameter |
34.925 mm |
Type of Product |
Inch Cam Follower CR |
Model No |
CR22 |

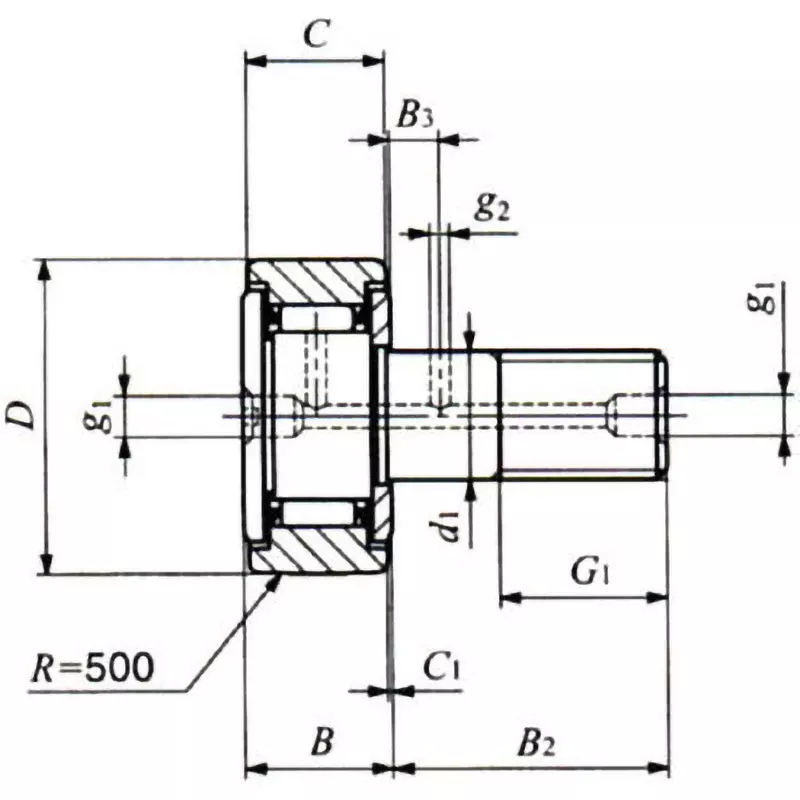

Dimension C1 (mm) |
0.79400000000000004 |
Dimension G1 (mm) |
15.875 |
Dimension B3 (mm) |
7.9379999999999997 |
Monotaro ID |
10329164 |
Mass (g) |
157 |
Maximum Tightening Torque (Nm) |
27.7 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |

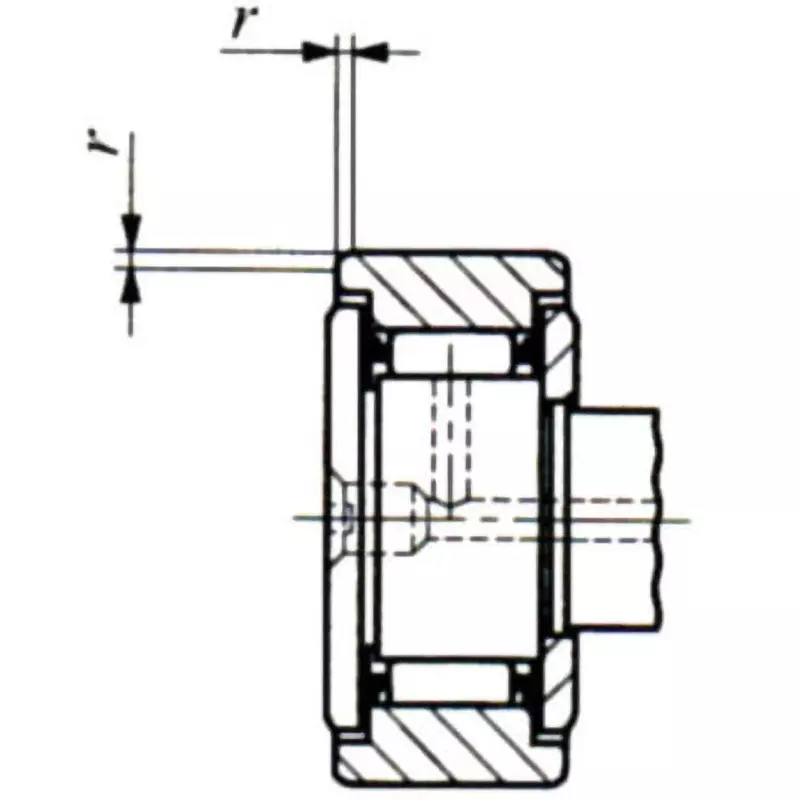

Dimension R |
1.588 mm |
Dimension D1 (mm) |
12.7 |
Dimension B2 |
31.75 mm |
Dimensions C (mm) |
19.05 |
Specifications |
1N≒0.102kgf |
Basic Dynamic Load Rating (N) |
14200 |
Dimensions B (mm) |
20.399999999999999 |
Basic Static Load Rating (N) |
16000 |
Dimensions D (mm) |
34.924999999999997 |
Remark |
1. For stud diameter d1 of 6.35mm or less, there is an oil hole only in the stud head. Others have oil holes in the stud head, outer diameter and end face. 2. Grease is enclosed. |
Screw UNF |
-20 |
