Ships within 25 days
View
View
View
View
| Width (mm) | 11 |
| Type | CF-B |
| Country of Origin | Japan |
| Shape | Hexagon socket |
Width (mm) |
11 |
Type |
CF-B |
Country of Origin |
Japan |
Shape |
Hexagon socket |
Outer Diameter |
16 mm |
Type of Product |
Standard Cam Follower CF B |
Model No |
CF6B |

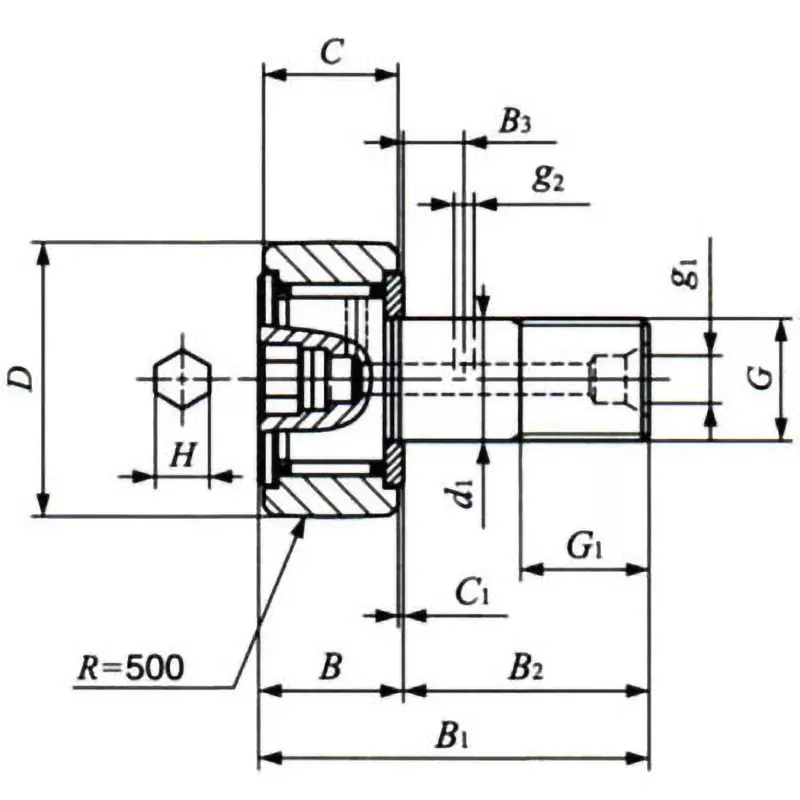

Dimension C1 (mm) |
0.6 |
Dimension B1 (mm) |
28.2 |
Dimension G1 (mm) |
8 |
Dimensions g (mm) |
M6x1.0 |
Monotaro ID |
10324465 |
Seal |
Without seal |
Mass (g) |
18.5 |
Dimensions H (mm) |
3 |
Maximum Tightening Torque (Nm) |
2.7 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimension B2 |
16 mm |
Dimensions C (mm) |
11 |
Specifications |
1N≒0.102kgf |
Dimensions B (mm) |
12.2 |

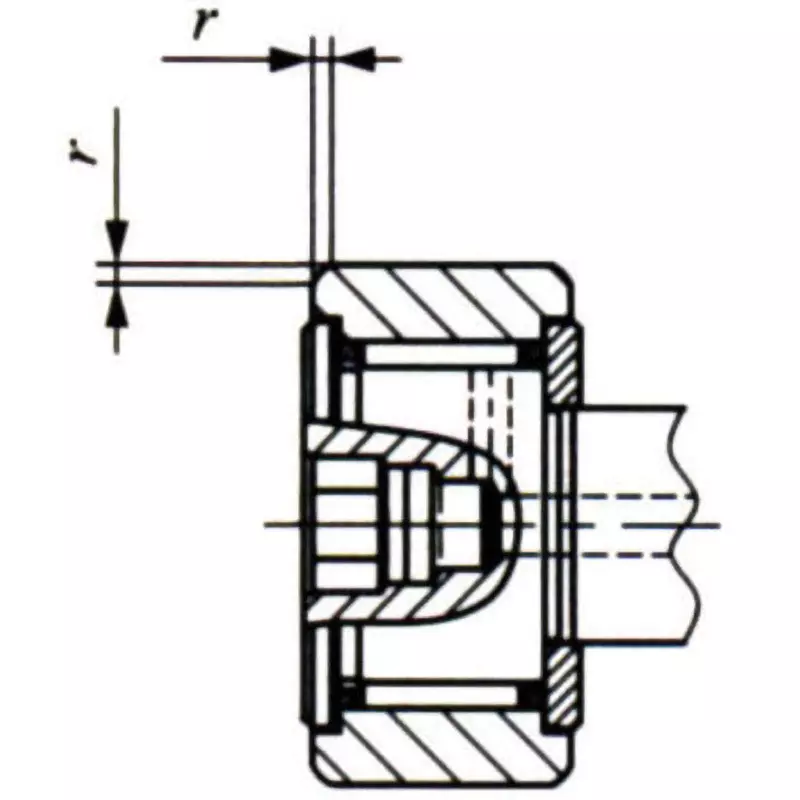

Chamfer Dimension r (mm) |
0.3 (minimum allowable dimension) |
Dimensions D (mm) |
16 |
Remark |
1. There is no oil hole when the stud diameter d1 is 4mm or less. If the stud diameter d1 is 5mm or more and 10mm or less, there is an oil hole (grease plug) in the head. Others have oil holes (grease nipples) on the stud head, and oil holes on the outer diameter and end face. 2. Shield type stud diameter d1 is 10mm or less and seal type is filled with grease. Others do not contain grease, so use them with proper lubrication. |
