| Width (mm) | 24 |
| Type | CF-G |
| Country of Origin | Japan |
| Shape | Hexagon socket |
Width (mm) |
24 |
Type |
CF-G |
Country of Origin |
Japan |
Shape |
Hexagon socket |
Outer Diameter |
47 mm |
Type of Product |

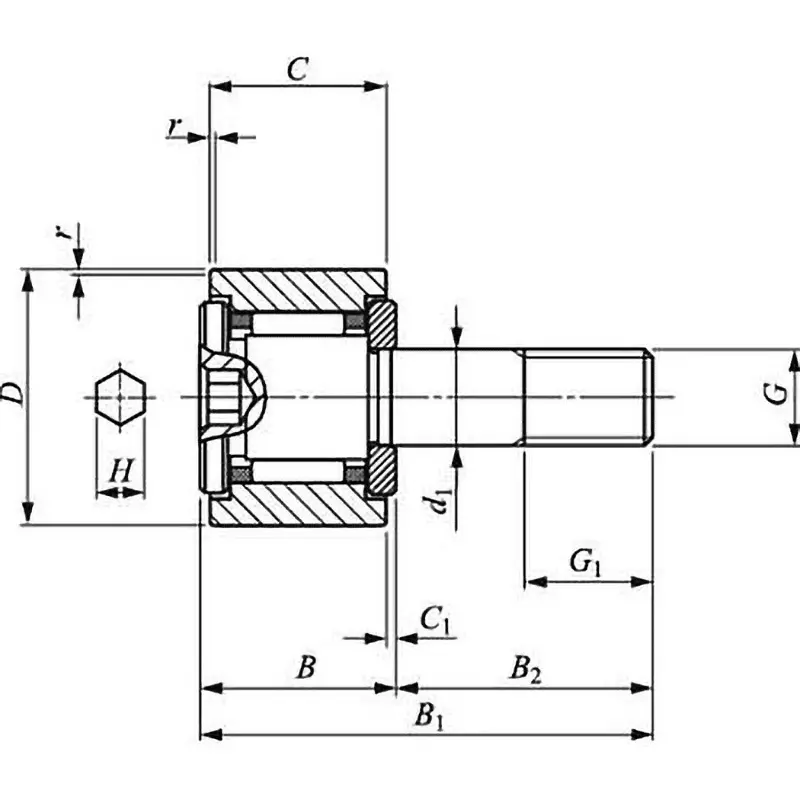

Cam Follower G CF-G |
Model No |
CF20-1G |
Dimension C1 (mm) |
0.8 |
Dimension B1 (mm) |
66.099999999999994 |
Dimension d1 (Φmm) |
20 |
Dimension G1 (mm) |
21 |
Dimensions g (mm) |
M20x1.5 |
Monotaro ID |
38324063 |
Seal |
No seal |
Mass (g) |
400 |
Dimensions H (mm) |
8 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimension R |
1 mm |
Dimension D (Φmm) |
47 |
Dimension B2 |
40.5 mm |
Dimensions F (mm) |
34 |
Dimensions B (mm) |
25.6 |
