| Width (mm) | 12 |
| Country of Origin | Japan |
| Shape | Spherical outer ring |
| Outer Diameter | 30 mm |
Width (mm) |
12 |
Country of Origin |
Japan |
Shape |
Spherical outer ring |
Outer Diameter |
30 mm |
Type of Product |

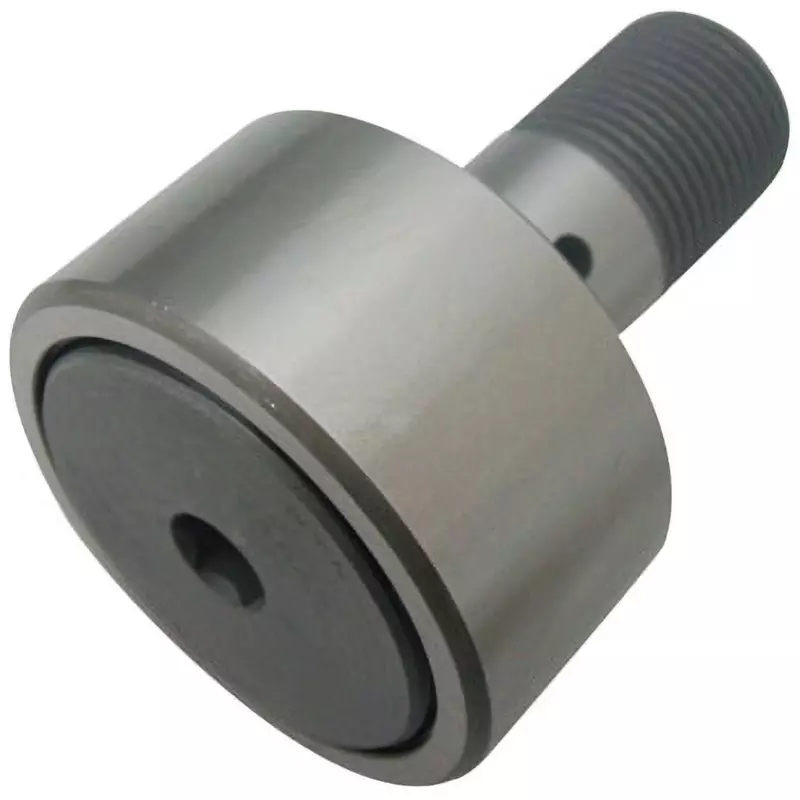

NTN Full Roller Type Cam Follower |
Model No |
KRV30LLH |
Dimension B1 (mm) |
40 |
Dimensions E (mm) |
23 |
Dimensions g (mm) |
M12x1.5 |
Mass (Kg) |
0.089 (reference) |
Dimensions A (mm) |
3 |
Monotaro ID |
5792096 |
Seal |
Included |
Dimensions H (mm) |
6 |
Maximum Tightening Torque (Nm) |
20 |
Outer Shape |
Spherical shape |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension D1 (mm) |
12(-0.018 to 0) |
Dimension B2 |
25 mm |
Trusco Part No. |
819-8220 |
Dimensions C (mm) |
14 |
Dimensions F (mm) |
15 |
Dimensions B (mm) |
15 |
Screw Dimension |
M12x1.5 mm |
