| Inner Diameter | Φ50 mm |
| Type | Separate Type |
| Country of Origin | Japan |
| Type of Product | Roller Follower |
Inner Diameter |
Φ50 mm |
Type |
Separate Type |
Country of Origin |
Japan |
Type of Product |
Roller Follower |
Model No |
NAST50ZZR |

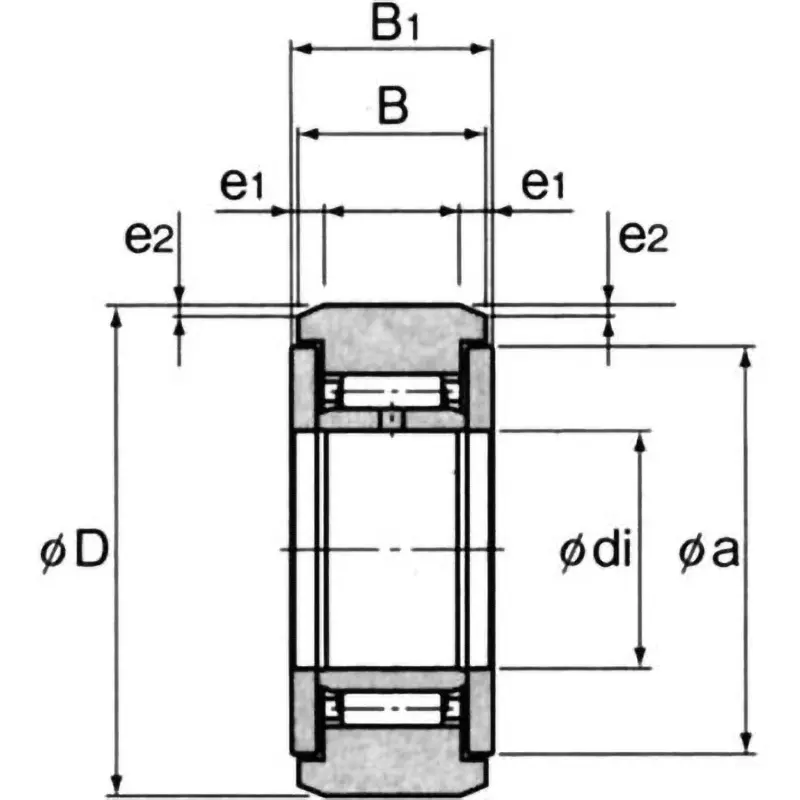

Dimension B1 (mm) |
26 |
Monotaro ID |
34568782 |
Mass (g) |
830 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Dimension B (Φmm) |
25.8 |
Limit Speed r/min |
3500 RPM |
RoHS Directive |
Correspondence |
Outer Diameter (Φmm) |
90 |
Dimension d |
Φ50 mm |
Dimension D (Φmm) |
90 |
Special Features |
without seal, with side plate, spherical outer ring |
Load Capacity |
11 kN |
Basic Load Rating C (kN) |
38.7 kN |
Basic Load Rating Co (kN) |
71.8 kN |
Dimension A (Φmm) |
76 |
Dimension E2 |
1.2 mm |
Dimension E1 |
4 mm |
