| Width (mm) | 14 |
| Type | CF-AB Type |
| Country of Origin | Japan |
| Material | Carbon steel |
Width (mm) |
14 |
Type |
CF-AB Type |
Country of Origin |
Japan |
Material |
Carbon steel |
Type of Product |
Cam Follower |
Model No |
CF12-AB |

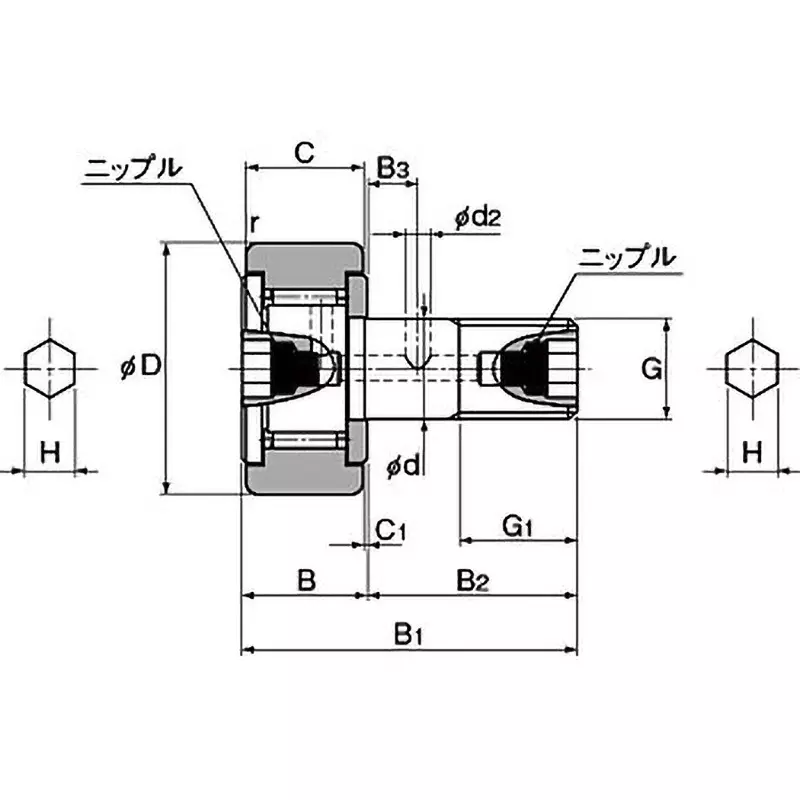

Dimension C1 (mm) |
0.6 |
Dimension B1 (mm) |
40 |
Dimension G1 (mm) |
13 |
Dimension B3 (mm) |
6 |
Monotaro ID |
6540494 |
Mass (g) |
105 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Dimension H (Φmm) |
6 |
Dimension B (Φmm) |
15 |
Dimension R |
0.6 mm |
Limit Speed r/min |
14000 RPM |
Outer Diameter (Φmm) |
30 |
Dimension d2 (Φmm) |
3 |
Allowable Load (kN) |
9.3699999999999992 |
Dimension D (Φmm) |
30 |
Dimension B2 |
25 mm |
Dimension G |
M12x1.5 |
Dimension C |
14 mm |
Special Features |
No Seal |
