Ships within 25 days
View
View
View
View
| Width (mm) | 12 |
| Type | CF Type |
| Country of Origin | Japan |
| Shape | Cylindrical outer ring |
Width (mm) |
12 |
Type |
CF Type |
Country of Origin |
Japan |
Shape |
Cylindrical outer ring |
Material |
Carbon steel |
Type of Product |
Cam Follower with Hexagon Socket |
Model No |
CF10-1UU-A |

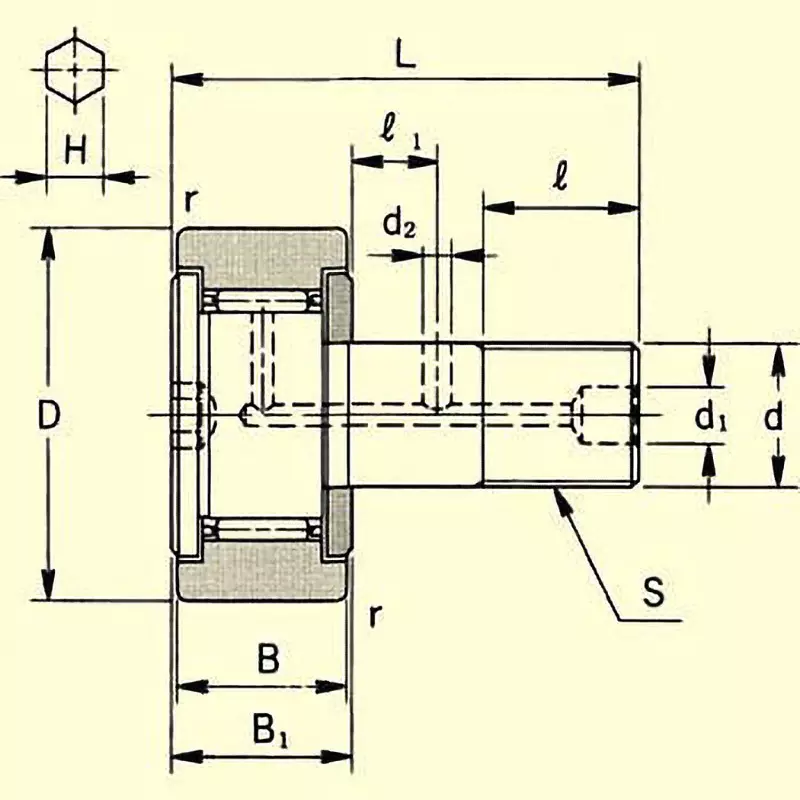

Dimension B1 (mm) |
13 |
Monotaro ID |
6332986 |
Seal |
With seal |
Mass (g) |
60 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Dimension H (Φmm) |
5 |
CO (kN) |
6.78 |
Dimension S |
M10x1.25 mm |
C (kN) |
5.33 |
Dimension B (Φmm) |
12 |
Dimension L (mm) |
36 |
Dimension R |
1 mm |
Outer Diameter (Φmm) |
26 |
Dimension D1 (mm) |
※ |
Dimension d |
10 mm |
