Ships within 25 days
View
View
View
View
| Width (mm) | 11 |
| Type | CF Type |
| Country of Origin | Japan |
| Shape | Spherical outer ring |
Width (mm) |
11 |
Type |
CF Type |
Country of Origin |
Japan |
Shape |
Spherical outer ring |
Type of Product |
Cam Follower with Hexagon Socket |
Model No |
CF8UUR-A |

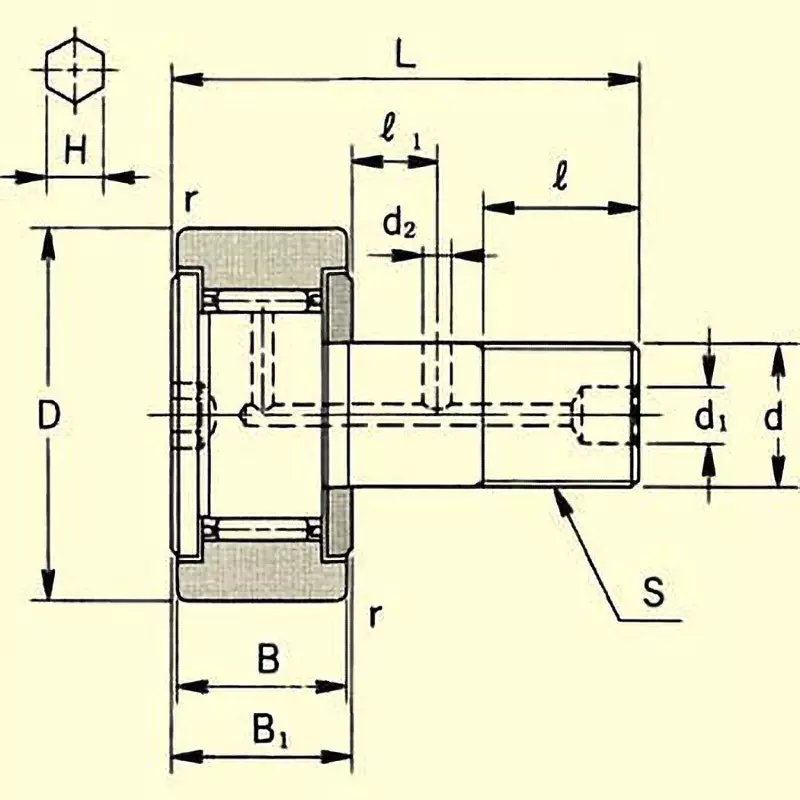

Dimension B1 (mm) |
12 |
Monotaro ID |
6333327 |
Seal |
With seal |
Mass (g) |
28.5 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Dimension H (Φmm) |
4 |
CO (kN) |
4.6500000000000004 |
Dimension S |
M8x1.25 mm |
C (kN) |
4.17 |
Dimension B (Φmm) |
11 |
Dimension L (mm) |
32 |
Dimension R |
0.5 mm |
Limit Speed r/min |
20000 RPM (Applicable to grease lubrication without seal. Allowable up to 130% of this value for oil lubrication and up to 70% for seal lubrication.) |
Outer Diameter (Φmm) |
19 |
Dimension d |
8 mm |
