| Inner Diameter | Φ10 mm |
| Type | Separate Type |
| Country of Origin | Japan |
| Type of Product | Roller Follower |
Inner Diameter |
Φ10 mm |
Type |
Separate Type |
Country of Origin |
Japan |
Type of Product |
Roller Follower |
Model No |
NAST10ZZUUR |

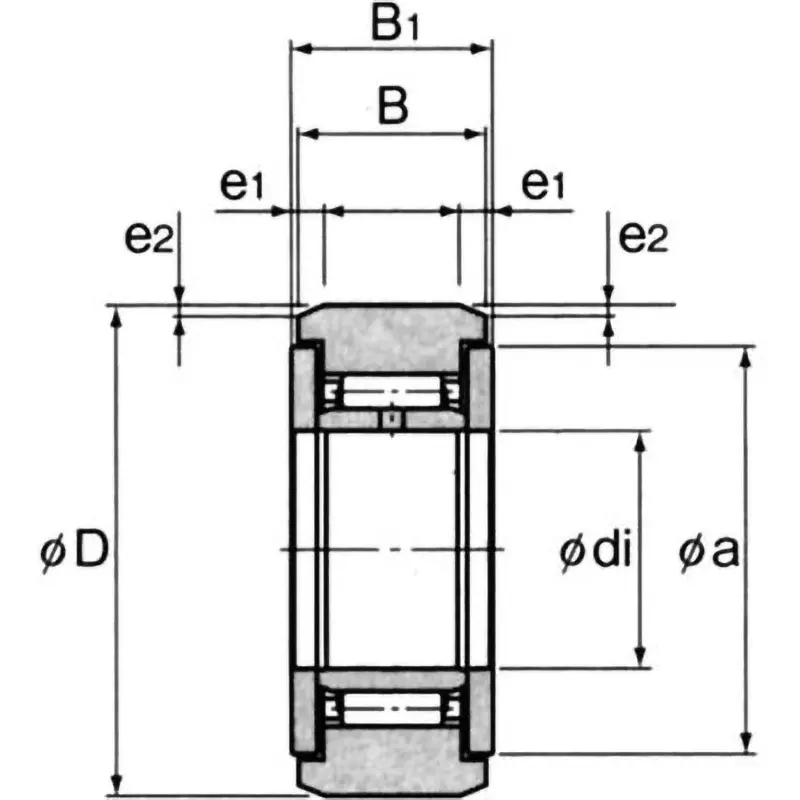

Dimension B1 (mm) |
16 |
Monotaro ID |
34568843 |
Seal |
With seal |
Mass (g) |
65 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Dimension B (Φmm) |
15.8 |
Limit Speed r/min |
15000 RPM |
RoHS Directive |
Correspondence |
Outer Diameter (Φmm) |
30 |
Dimension d |
Φ10 mm |
Dimension D (Φmm) |
30 |
Special Features |
with seal, side plate, spherical outer ring |
Load Capacity |
2.45 kN |
Basic Load Rating C (kN) |
9.7 kN |
Basic Load Rating Co (kN) |
9.67 kN |
Dimension A (Φmm) |
23.5 |
Dimension E2 |
0.8 mm |
Dimension E1 |
2.5 mm |
