| Width (mm) | 29 |
| Type | CF-AB Type |
| Country of Origin | Japan |
| Material | Carbon steel |
Width (mm) |
29 |
Type |
CF-AB Type |
Country of Origin |
Japan |
Material |
Carbon steel |
Type of Product |
Cam Follower |
Model No |
CF24UUR-AB |

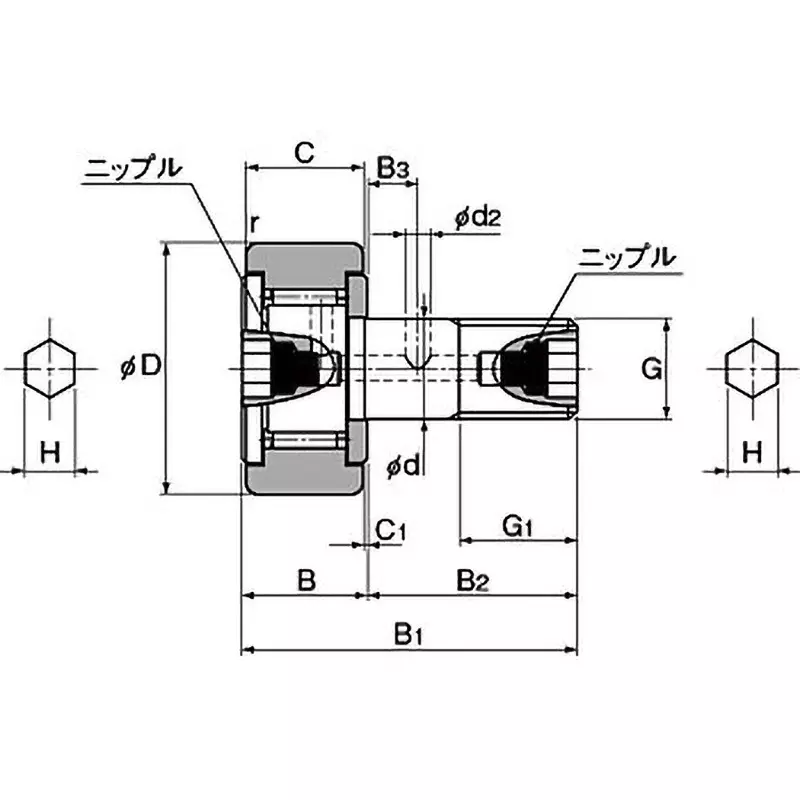

Dimension C1 (mm) |
0.8 |
Dimension B1 (mm) |
80 |
Dimension G1 (mm) |
25 |
Dimension B3 (mm) |
11 |
Monotaro ID |
6541325 |
Mass (g) |
915 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Dimension H (Φmm) |
8 |
Dimension B (Φmm) |
30.5 |
Dimension R |
1 mm |
Limit Speed r/min |
6500 RPM |
Outer Diameter (Φmm) |
62 |
Dimension d2 (Φmm) |
4 |
Allowable Load (kN) |
49.5 |
Dimension D (Φmm) |
62 |
Dimension B2 |
49.5 mm |
Dimension G |
M24x1.5 |
Dimension C |
29 mm |
Special Features |
with Seal |
