HikRobot Mono Industrial Code Reader 1280 × 1024 Resolution and 2.7 μm × 2.7 μm Pixel Size, MV-ID2013EM-05-WBN

Name: HikRobot Mono Industrial Code Reader 1280 × 1024 Resolution and 2.7 μm × 2.7 μm Pixel Size, MV-ID2013EM-05-WBN
Brand: HikRobot
SKU: IND.CAM.341965291
Price: 56639 INR
Availability: InStock

Visit the HikRobot Store

EMI starts at ₹5032/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Type of Product	Industrial Code Reader

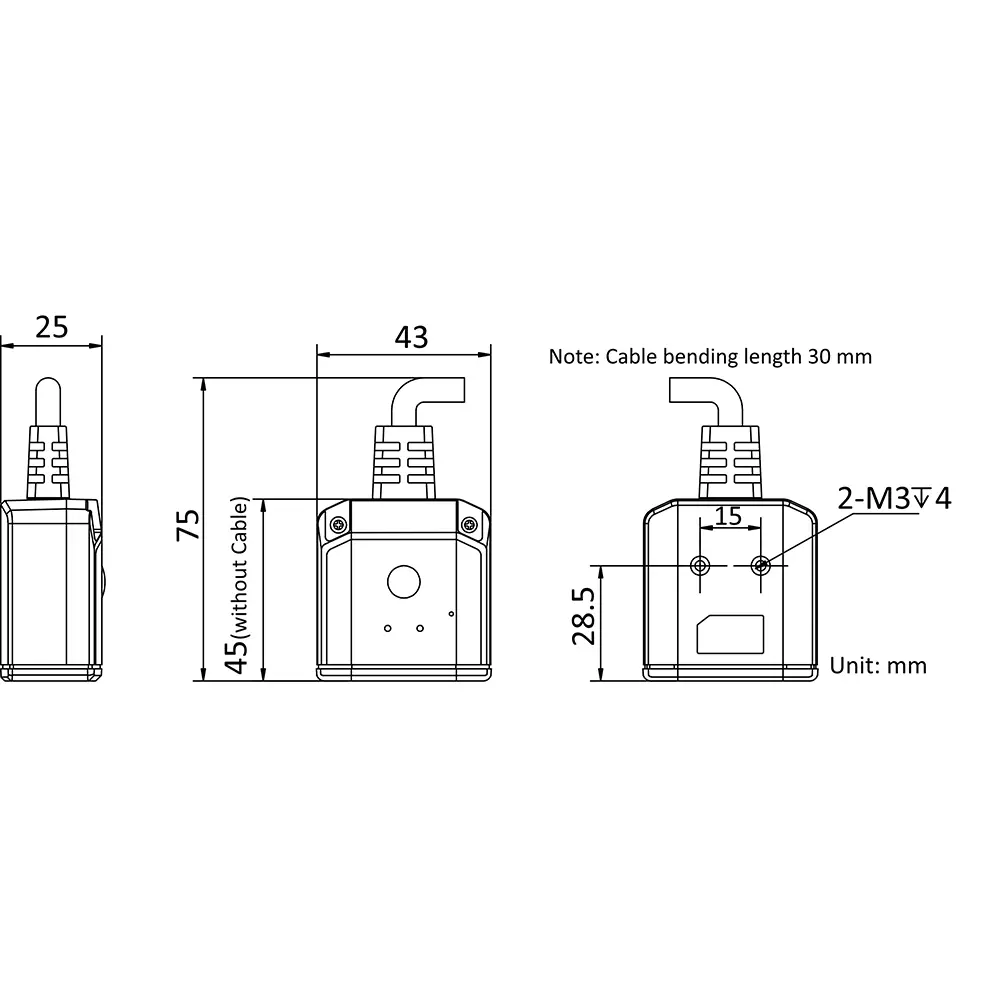

Dimension	45 mm × 43 mm × 25 mm
Humidity	20% RH to 95% RH (no condensation)
Power Supply	Network interface: 12 VDC to 24 VDC USB interface: 5 VDC (USB 2.0 provides power supply)

More HikRobot Camera Modules products More Camera Modules products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

description

Type of Product	Industrial Code Reader
Dimension	45 mm × 43 mm × 25 mm
Humidity	20% RH to 95% RH (no condensation)
Power Supply	Network interface: 12 VDC to 24 VDC USB interface: 5 VDC (USB 2.0 provides power supply)
Lens Mount	M5.8-mount
Model No	MV-ID2013EM-05-WBN
Pixel Size	2.7 μm × 2.7 μm
Focal Length (Mm)	4.7 mm
Type	Mono
Resolution	1280 × 1024
Weight	Approx. 68.5 g (0.2 lb.)
Country of Origin	India
Name of Manufacturer/Packer/Importer	Hangzhou Hikrobot Co., Ltd.
Sensor Type	CMOS, global shutter
Light Source	White
Indicator	Power indicator (POWER), status indicator (OK/NG)
Communication Protocol	Network interface: SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, Ethernet/IP USB interface: SmartSDK, USB (HID, CDC)
LED	Green LED
Dimension (inch)	1.8 × 1.7 × 1.0 inch
Gain (Db)	1 dB to 28 dB
Data Interface	Network interface: Fast Ethernet (100 Mbit/s), RS-232, DC terminal USB interface: USB 2.0
Ambient Illumination	0 lux to 10000 lux
Exposure Time	60 μs to 0.6 sec
Reading Speed	30 codes/sec (Max)
Ingress Protection	IP54
Certification	CE, RoHS, KC
Maximum Power Consumption	Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC
Working Temperature	0 °C to 50 °C (32 °F to 122 °F)
Digital I/O	Network interface: DB15 connector provides power and I/O, including non-isolated input × 2 (Line 0/1), non-isolated output × 2 (Line 2/3), RS-232 × 1. USB interface: DB15 connector provides data transmission. Supports device triggering via pressing button on side.
Maximum Frame Rate	50 fps
Storage Temperature	–30 °C to 70 °C (–22 °F to 158 °F)
Sensor Size	1/4 inch (6.35 mm)
