| Type of Product | Smart Code Reader |
| Dimension | 46 mm × 38 mm × 25 mm |
| Humidity | 20% to 95% RH, non-condensing |
| Power Supply | 12 VDC to 24 VDC |
Type of Product |

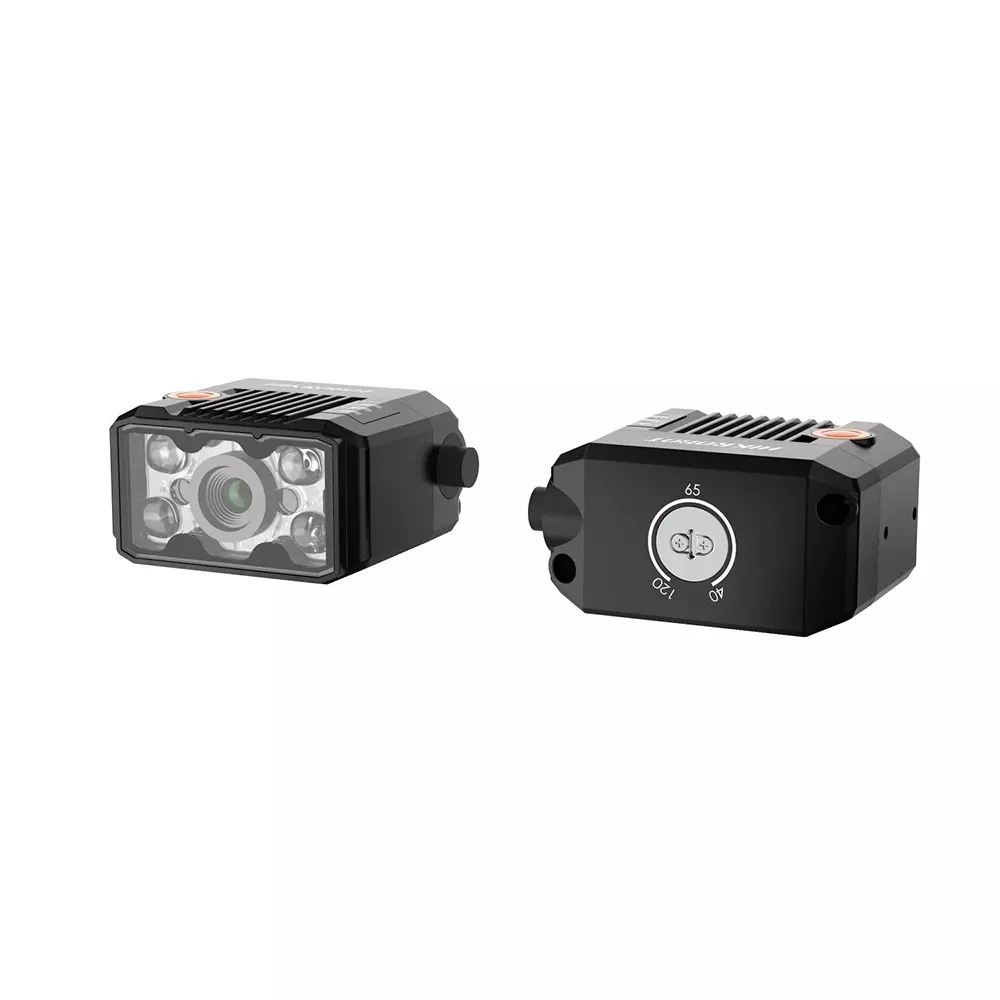

Smart Code Reader |

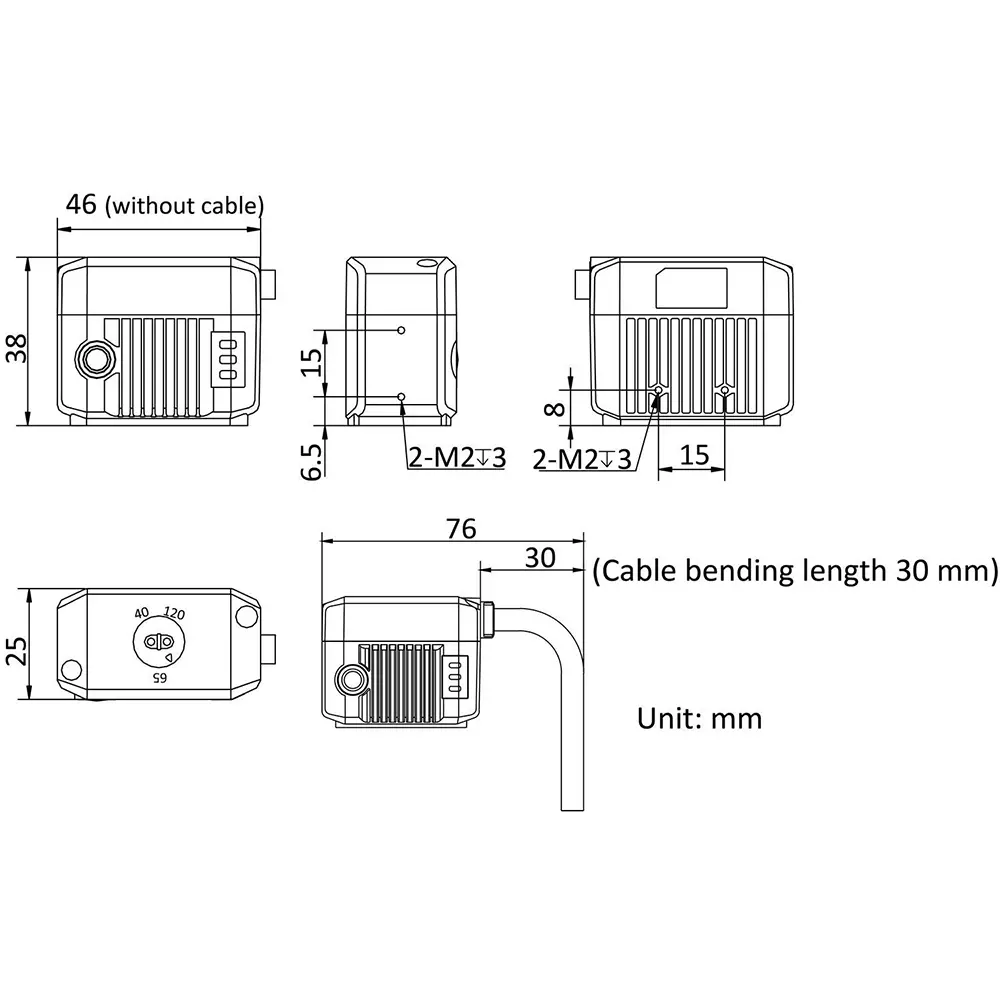

Dimension |
46 mm × 38 mm × 25 mm |
Humidity |
20% to 95% RH, non-condensing |
Power Supply |
12 VDC to 24 VDC |
Lens Mount |
M10-mount, adjusting focus manually supported |
Model No |
MV-ID2016M-06S-WBN |
Pixel Size |
3.45 µm × 3.45 µm |
Focal Length (Mm) |
6.72 mm |
Type |
Mono |
Resolution |
1408 × 1024 |
Weight |
Approx. 160 g (0.35 lb.) |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Hangzhou Hikrobot Co., Ltd. |
Sensor Type |
CMOS, global shutter |
Light Source |
White |
Indicator |
Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
Communication Protocol |
SmartSDK, TCP Client, Serial, FTP, TCP Server, PROFINET, MELSEC, Ethernet/IP, ModBus, UDP, Fins, SLMP |
LED |
Green LED |
Dimension (inch) |
1.8 x 1.5 x 1.0 inch |
Gain (Db) |
0 dB to 15 dB |
Data Interface |
Fast Ethernet |
Ambient Illumination |
0 lux to 50000 lux |
Exposure Time |
16 μs to 1 sec |
Working Distance |
40 mm to 120 mm (1.6 inch to 4.7 inch) |
Reading Speed |
45 codes/sec (Max) |
Ingress Protection |
IP65 |
Certification |
CE, RoHS, KC |
Maximum Power Consumption |
Approx. 10.6 W@24 VDC |
Working Temperature |
0 °C to 50 °C (32 °F to 122 °F) |
Digital I/O |
17-pin M12 connector provides power and I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), configurable bi-directional non-isolated I/O × 2 (Line 0/1), and RS-232 × 1. Device trigger via pressing button on side supported. |
Maximum Frame Rate |
60 fps |
Storage Temperature |
-30 °C to 70 °C (-22 °F to 158 °F) |
Sensor Size |
1/2.9 inch (8.76 mm) |
