Ships within 19 days
Cable Length (m)
Model No
View
View
View
View
| Monotaro ID | 39107722 |

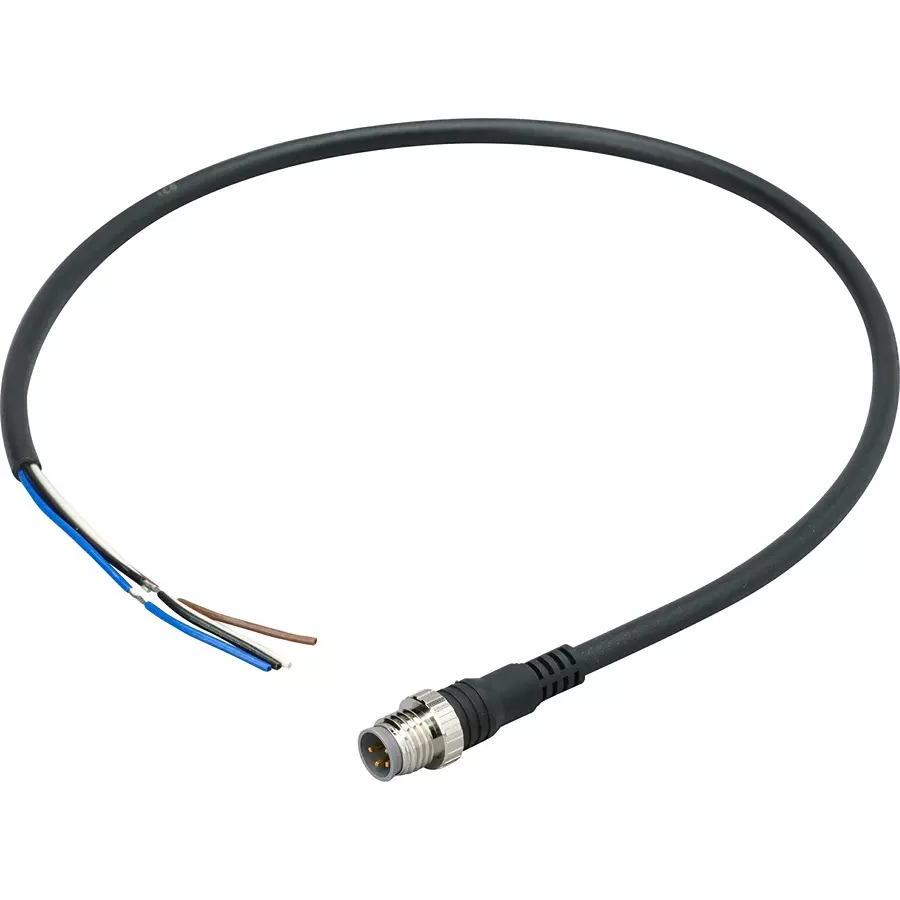

| Type of Product | Round Waterproof Connector |
| Model No | XS3H-M421-4C3-R |
| Material | Contact Block: Pbt Resin (Ul94V-0)/Light Gray Or Black Contact: Phosphor Bronze/Gold Plating Over Nickel Base (0.4?M) Fixings: Brass/Nickel Plated Or Sus316L Cover: Soft Pbt (Ul94V-0) O-Ring: Rubber |
Monotaro ID |
39107722 |
Type of Product |
Round Waterproof Connector |
Model No |
XS3H-M421-4C3-R |
Material |
Contact Block: Pbt Resin (Ul94V-0)/Light Gray Or Black Contact: Phosphor Bronze/Gold Plating Over Nickel Base (0.4?M) Fixings: Brass/Nickel Plated Or Sus316L Cover: Soft Pbt (Ul94V-0) O-Ring: Rubber |
Cable Length |
300 mm |
Rated Voltage (V) |
DC 125 |
Rated Current (A) |
1 |
No. of Pole |
4 Pole |
Protection Class |
IP67(IEC529) |
Type |
M8 Type |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Insulation Resistance |
1000 mΩ Or more (At DC 500 V) |
Withstand Voltage |
(Connector) AC 1000 V 1 min (Leakage Current 1 mA Or Less) |
Operating Temperature Range |
-25 to +70 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Cable Length (m) |
0.3 |
Pole |
4 |
Tensile Strength |
Cable : 49N / 15s |
Fixing Type |
M8 Screw Fixing Type |
