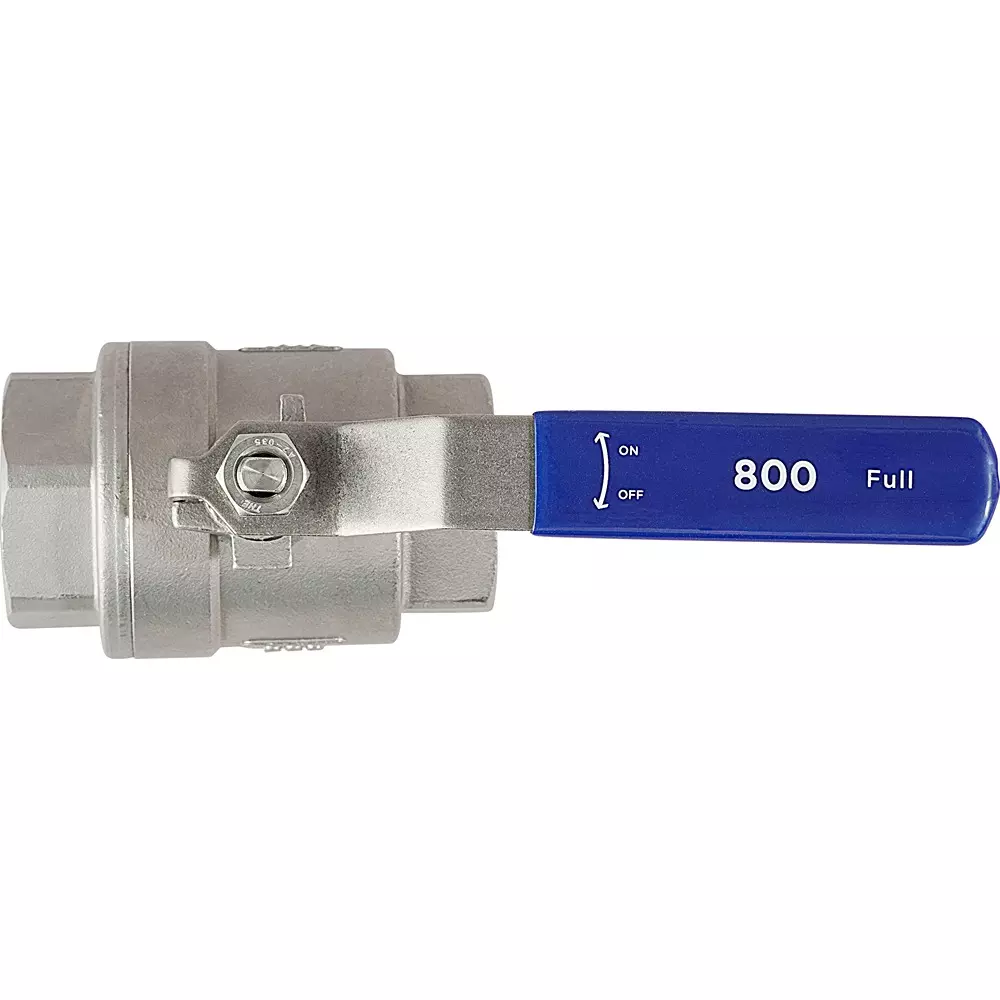

| Type of Product | Ball Valve, Full Bore, Stainless Steel (SUS316), 800 Type |
| Connection Type | Screw-in type |
| Country of Origin | CHINA |
| Material | SUS316 |
Type of Product |
Ball Valve, Full Bore, Stainless Steel (SUS316), 800 Type |
Connection Type |
Screw-in type |
Country of Origin |
CHINA |
Material |
SUS316 |
Suitable Fluid |
Water, oil, air |
Monotaro ID |
48287270 |

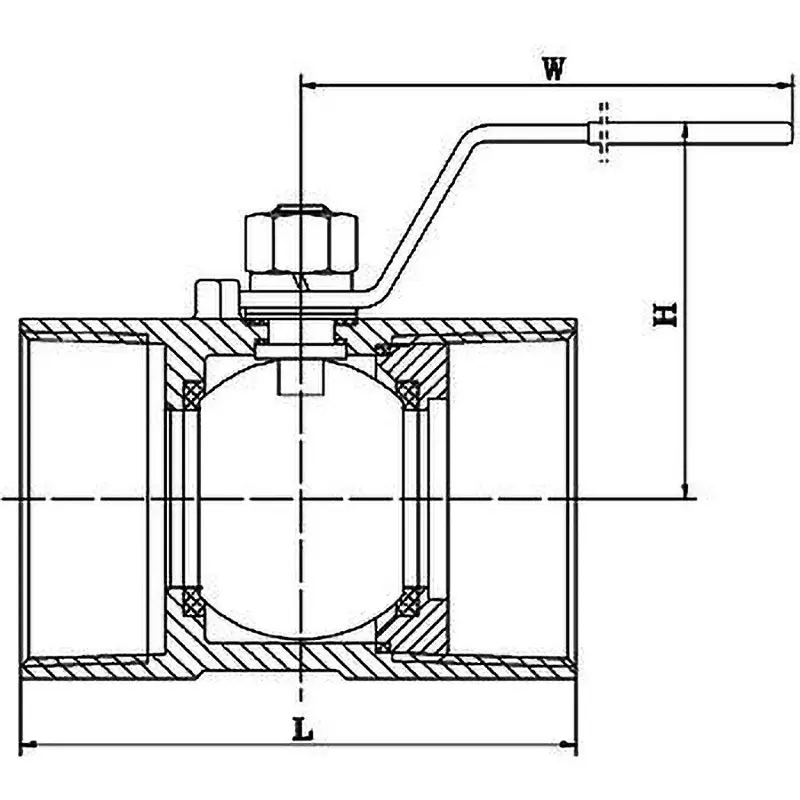

Dimension L (mm) |
97 |
Thread Type |
PT screw |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
5.49 (room temperature water, oil, gas) |
Nominal Diameter (B) |
1-1/4 |
Class |
800 |
Dimensions H (mm) |
73 |
Nominal Diameter (A) |
32 |
Ball Valve Type |
Full bore |
Dimension W |
141.5 mm |
Handle Type |
Lever type |
