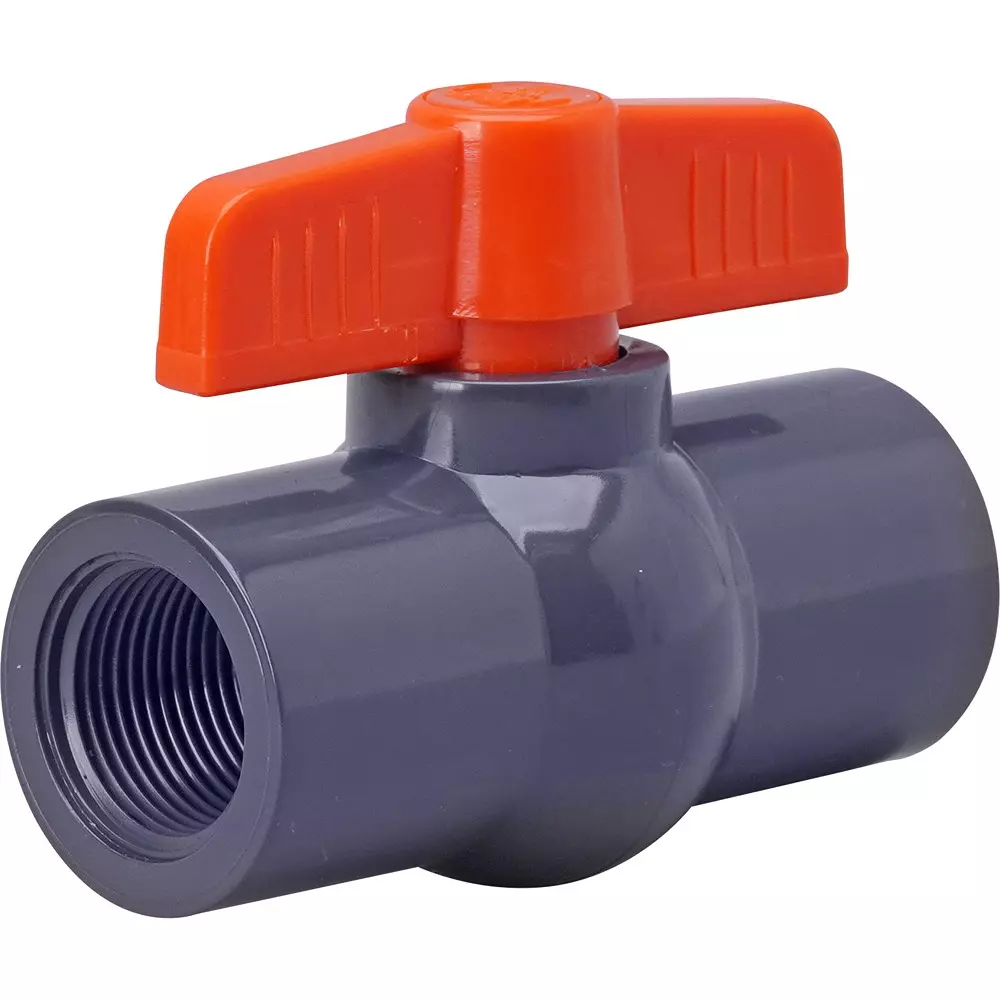

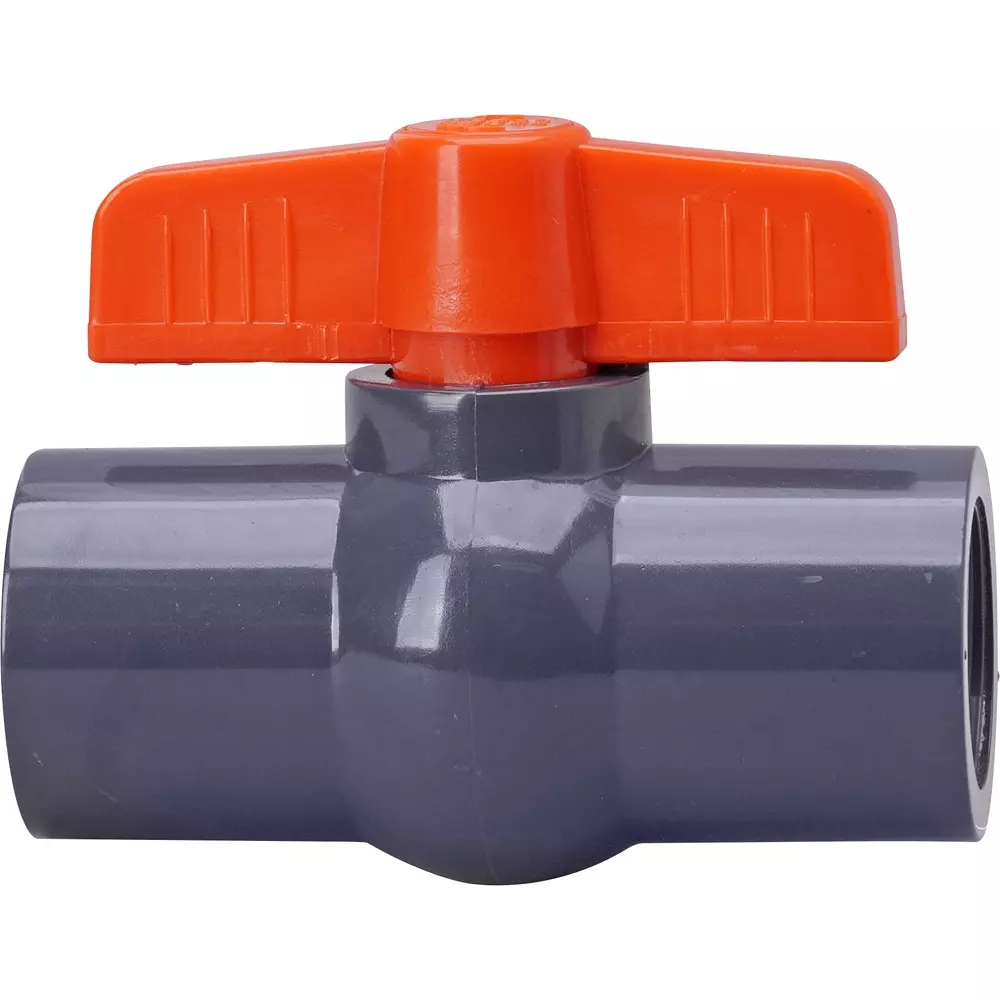

| Type of Product | Pvc Ball Valve Screw Type |
| Connection Type | Screw type |
| Country of Origin | CHINA |
| Material | PVC |
Type of Product |
Pvc Ball Valve Screw Type |
Connection Type |
Screw type |
Country of Origin |
CHINA |
Material |
PVC |
Suitable Fluid |
Water |
Monotaro ID |
21416799 |
Operating Temperature Range |
-10 to 60°C |
Dimension L (mm) |
148 |
Type |
Screw type |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
1 |
Nominal Diameter (B) |
2 |
Valve Type |
Ball valve |
Nominal Diameter (A) |
50 |
Dimension H2 |
81 mm |
Dimension W |
138 mm |
Dimension D (Φmm) |
76 |
Handle Material |
ABS |
Dimension D2 (mm) |
59.7 |
Handle Type |
T type |
Dimension H1 |
126 mm |
Connection: Rc (Tapered Thread for Pipe, Female) |
Rc2 |
