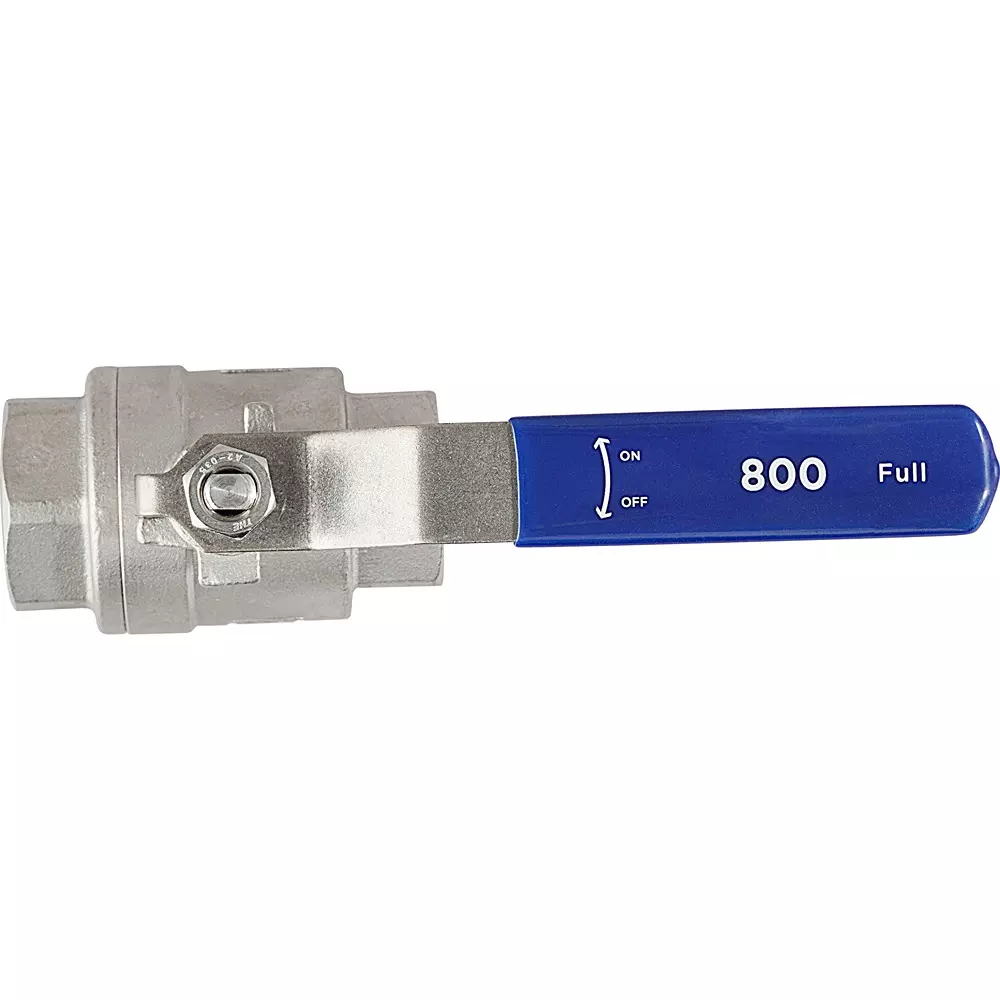

| Type of Product | Ball Valve, Full Bore, Stainless Steel (SUS316), 800 Type |
| Connection Type | Screw-in type |
| Country of Origin | Japan |
| Material | SUS316 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Ball Valve, Full Bore, Stainless Steel (SUS316), 800 Type |
Connection Type |
Screw-in type |
Country of Origin |
Japan |
Material |
SUS316 |
Suitable Fluid |
Water, oil, air |
Monotaro ID |
48287254 |

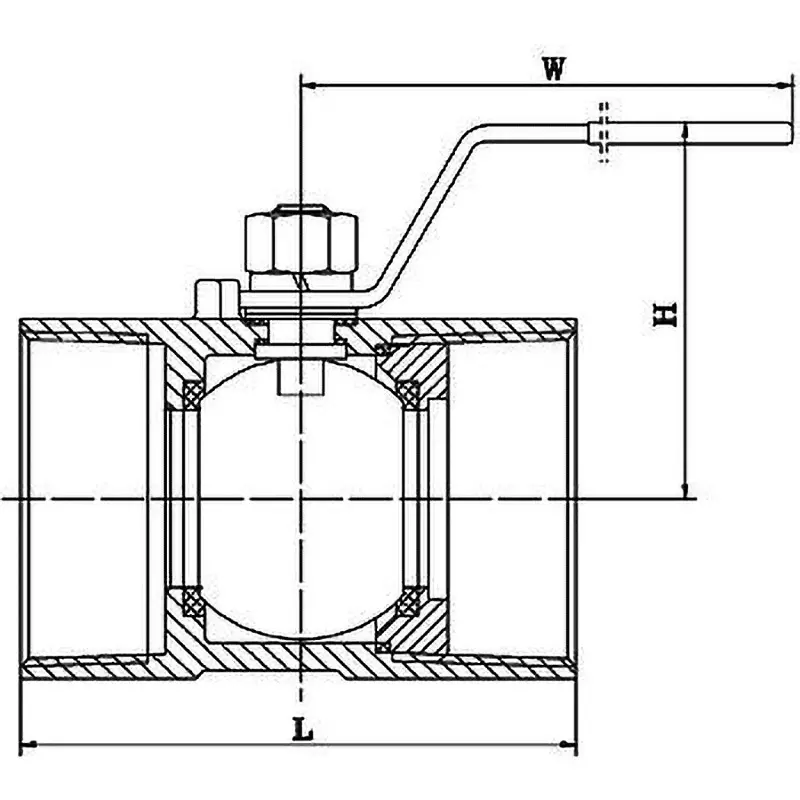

Dimension L (mm) |
83 |
Thread Type |
PT screw |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
5.49 (room temperature water, oil, gas) |
Nominal Diameter (B) |
1 |
Class |
800 |
Dimensions H (mm) |
68 |
Nominal Diameter (A) |
25 |
Ball Valve Type |
Full bore |
Dimension W |
141.5 mm |
Handle Type |
Lever type |
