| Model No | 20 |
| Type of Product | Pvc Ball Valve Threaded End |
| Connection Type | Screw type |
| Country of Origin | CHINA |
Model No |
20 |
Type of Product |
Pvc Ball Valve Threaded End |
Connection Type |
Screw type |
Country of Origin |
CHINA |
Seal Material |
EPDM |
Material |
PVC |
Monotaro ID |
29820964 |

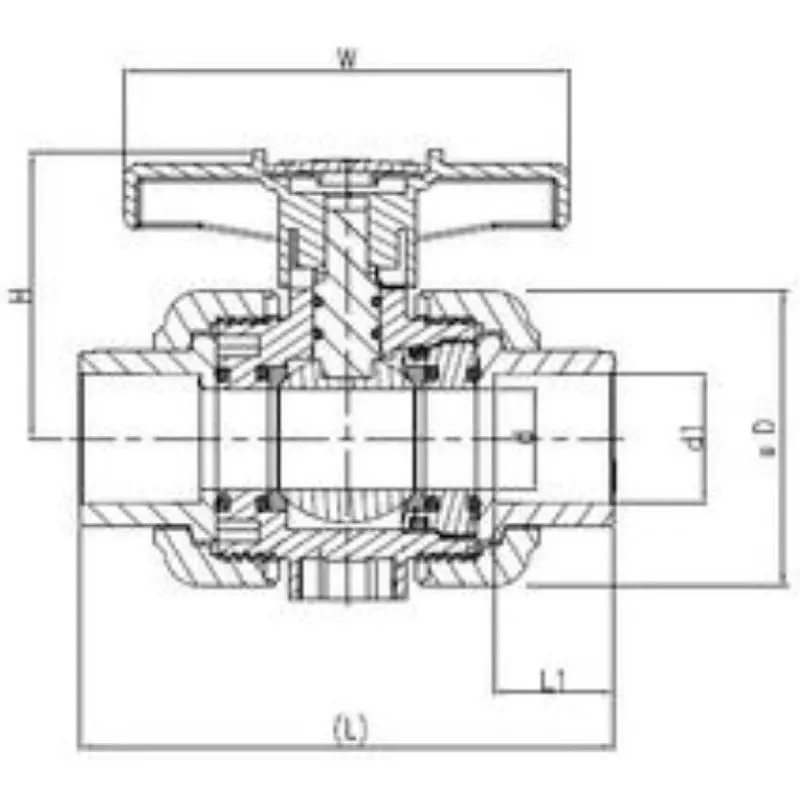

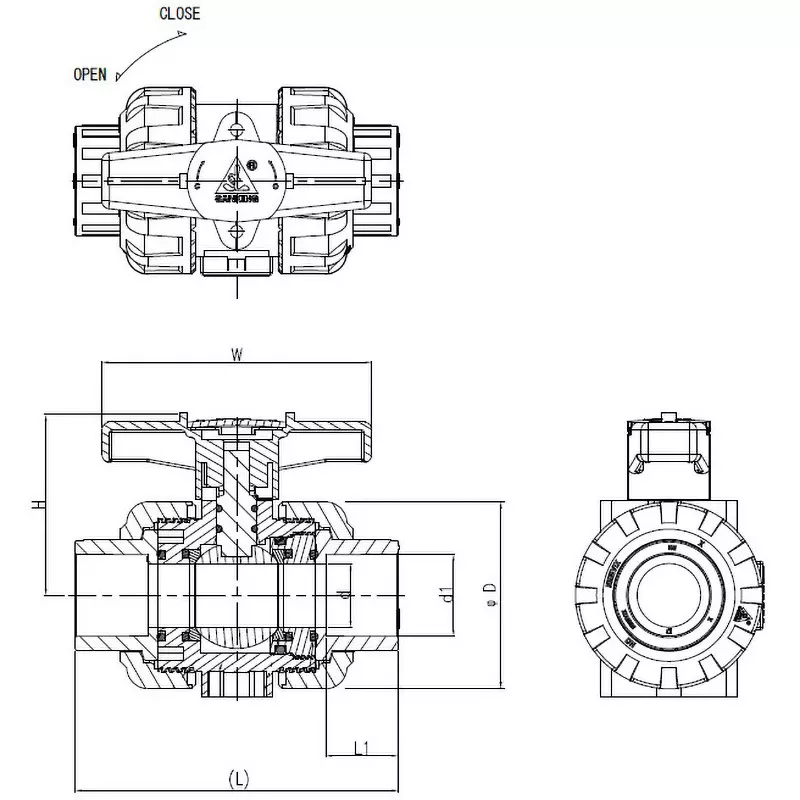

Dimension L (mm) |
115 |
Type |
Screw type |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
0.98 or less |
Nominal Diameter (B) |
46085 |
Connection Direction |
Straight |
Dimensions H (mm) |
59 |
Valve Type |
Ball valve |
Nominal Diameter (A) |
20 |
Dimension W |
90 mm |
Dimensions D (mm) |
20 |
Dimension L1 |
25.5 mm |
