| Model No | 37288 |

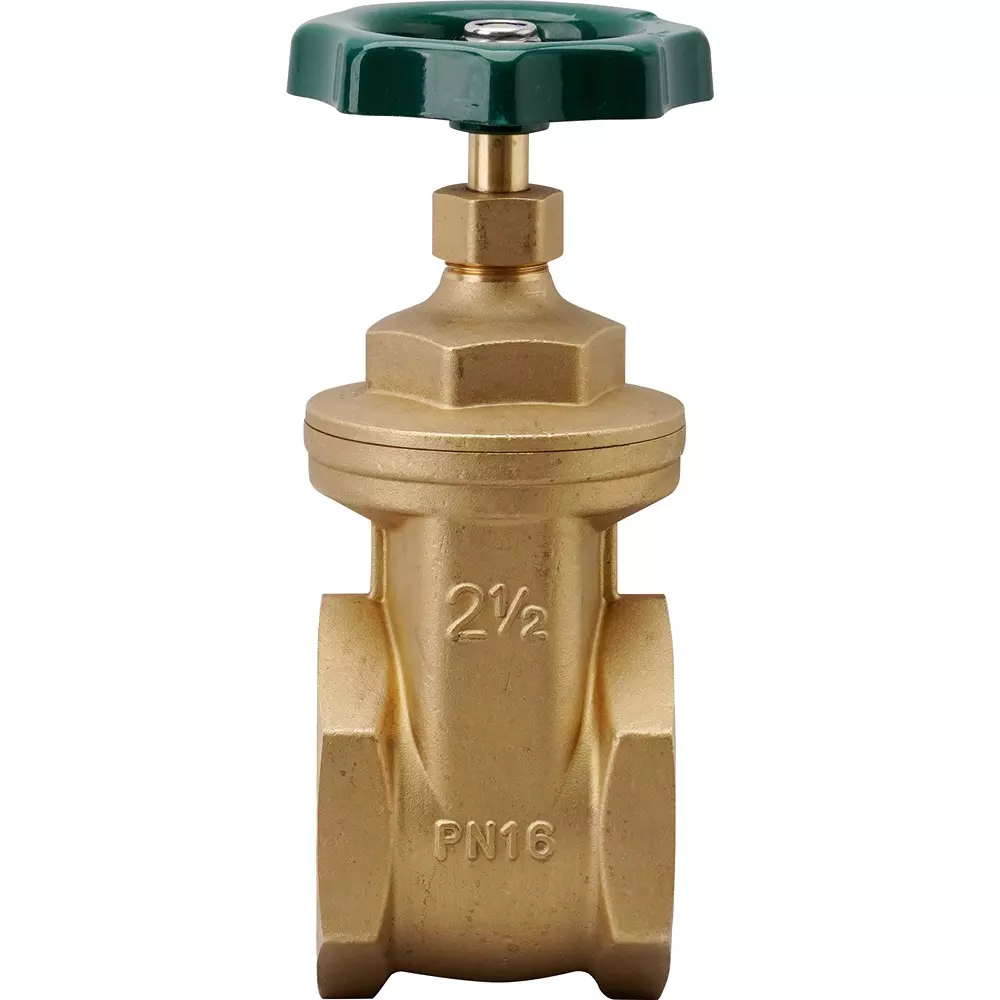

| Type of Product | Gate Valve Brass Type 125 |
| Connection Type | Threaded type (Rc) |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
37288 |
Type of Product |
Gate Valve Brass Type 125 |
Connection Type |
Threaded type (Rc) |
Country of Origin |
Japan |
Material |
Brass |
Suitable Fluid |
Water, oil, gas |
Monotaro ID |
44726905 |
Dimension L (mm) |
80 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
1.18 (static water below + 120 ° C), 0.88 (saturated steam) |
Material (Stem) |
Brass |
Material (Gasket) |
PTFE |
Nominal Diameter (B) |
2-1/2 |
Dimensions H (mm) |
177 |
Valve Type |
Gate valve |
Nominal Diameter (A) |
65 |
Dimension D (Φmm) |
96 |
Handle Type |
T type |
