| Model No | 20A |

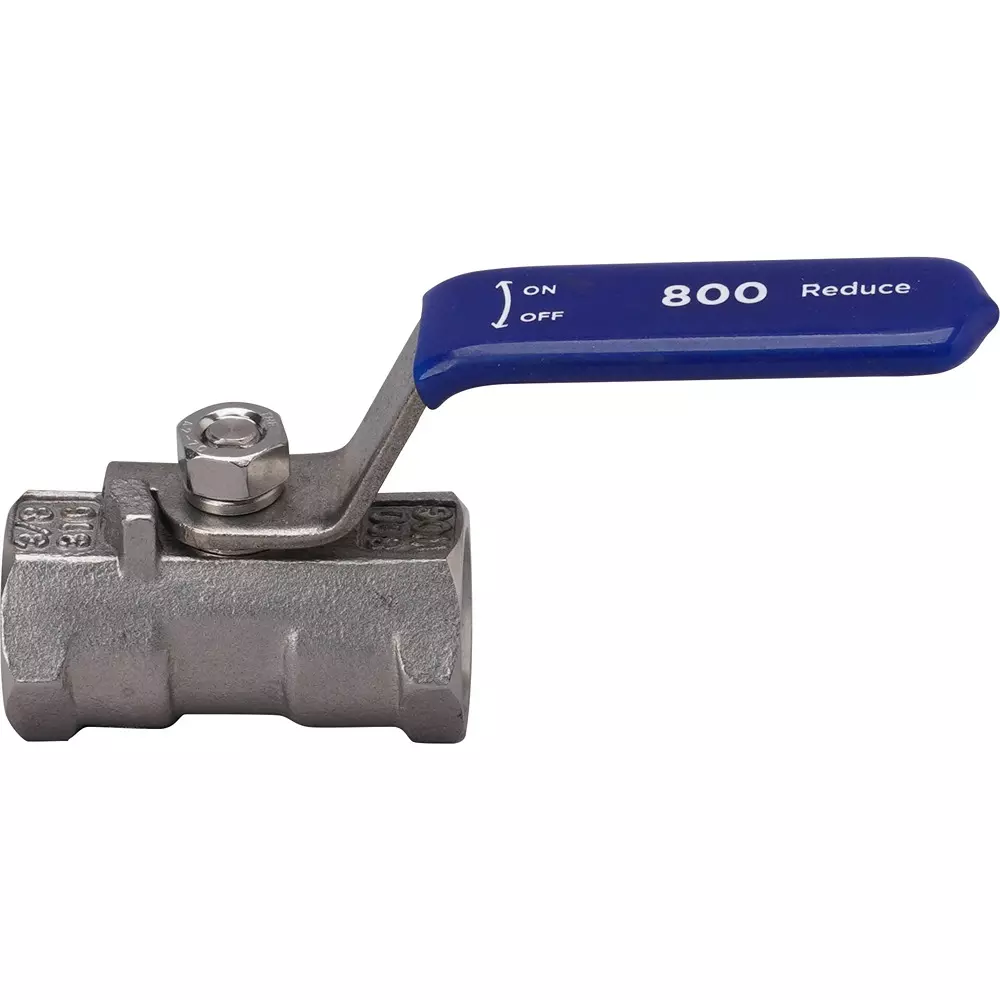

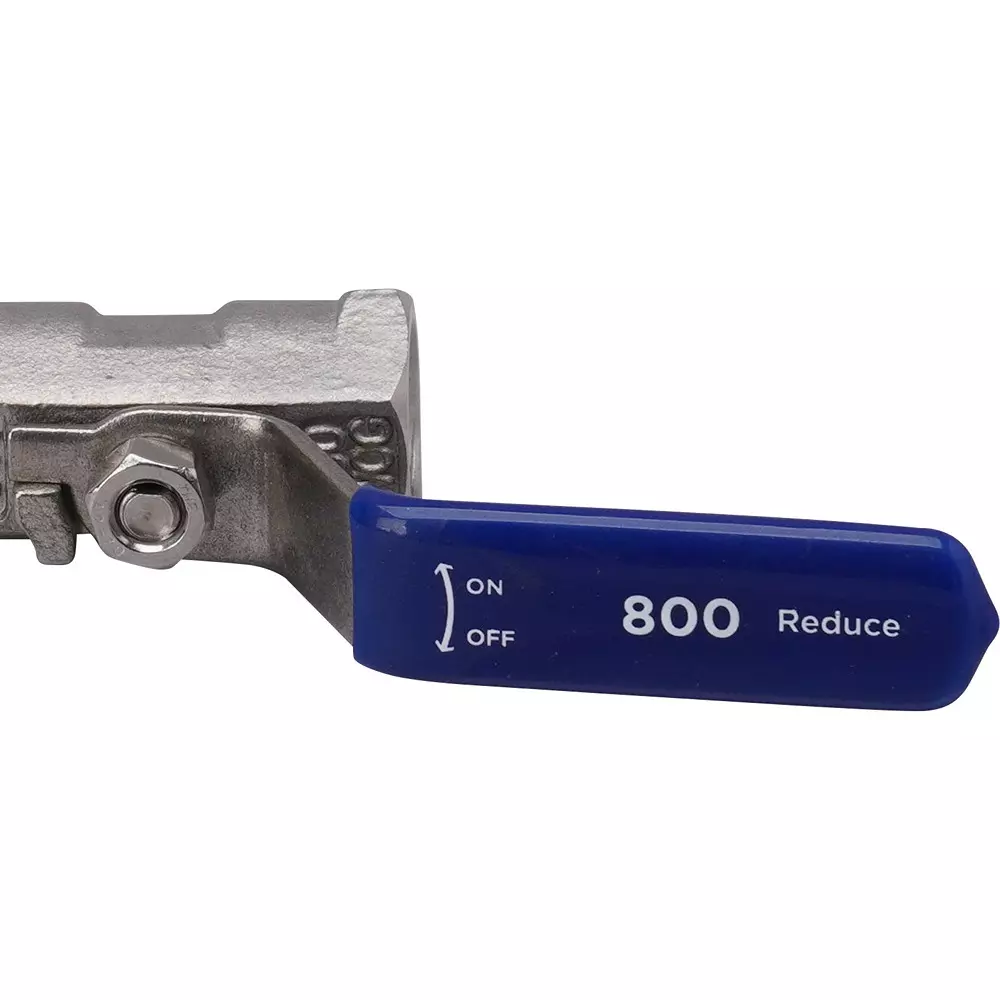

| Type of Product | Ball Valve Reduced Bore Made of Stainless Steel (SUS316) |
| Connection Type | Screw-in type |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
20A |
Type of Product |
Ball Valve Reduced Bore Made of Stainless Steel (SUS316) |
Connection Type |
Screw-in type |
Country of Origin |
Japan |
Material |
Body/CF8M (SUS316) Ball/SUS316 Packing/Thrust Washer/Seat/R-PTFE |
Suitable Fluid |
Water, oil, air |
Monotaro ID |
24873645 |

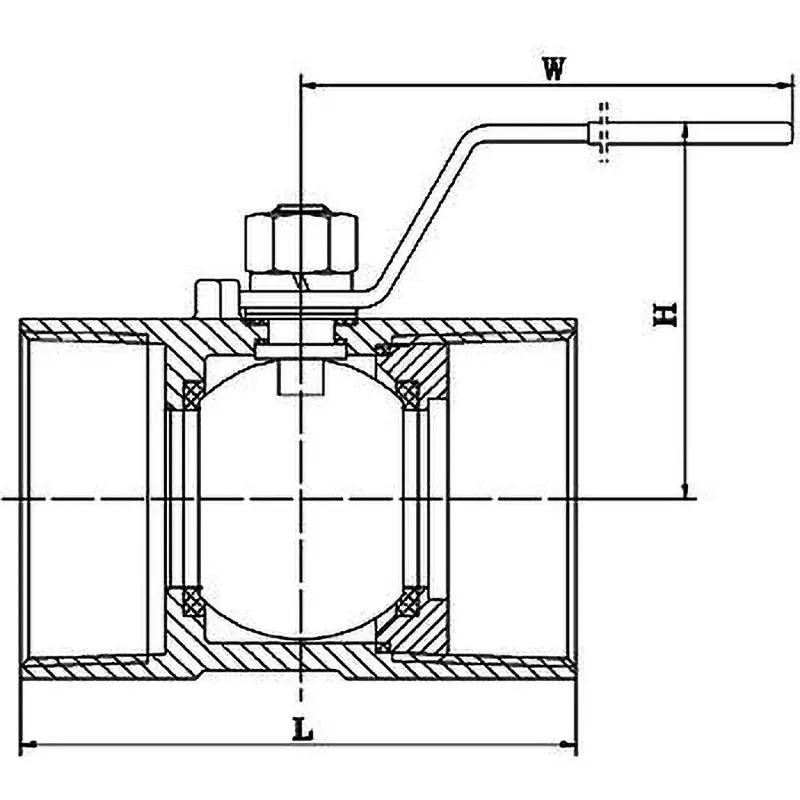

Dimension L (mm) |
59 |
Thread Type |
PT screw |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
5.49 (room temperature water, oil, gas) |
Nominal Diameter (B) |
3/4 |
Class |
800 |
Dimensions H (mm) |
41 |
Valve Type |
Ball valve |
Nominal Diameter (A) |
20 |
Dimension W |
85 mm |
Handle Type |
Lever type |
